SmartSystem Matrix Sled Chimera (Gold Mount) - Manual (Page 43)

43

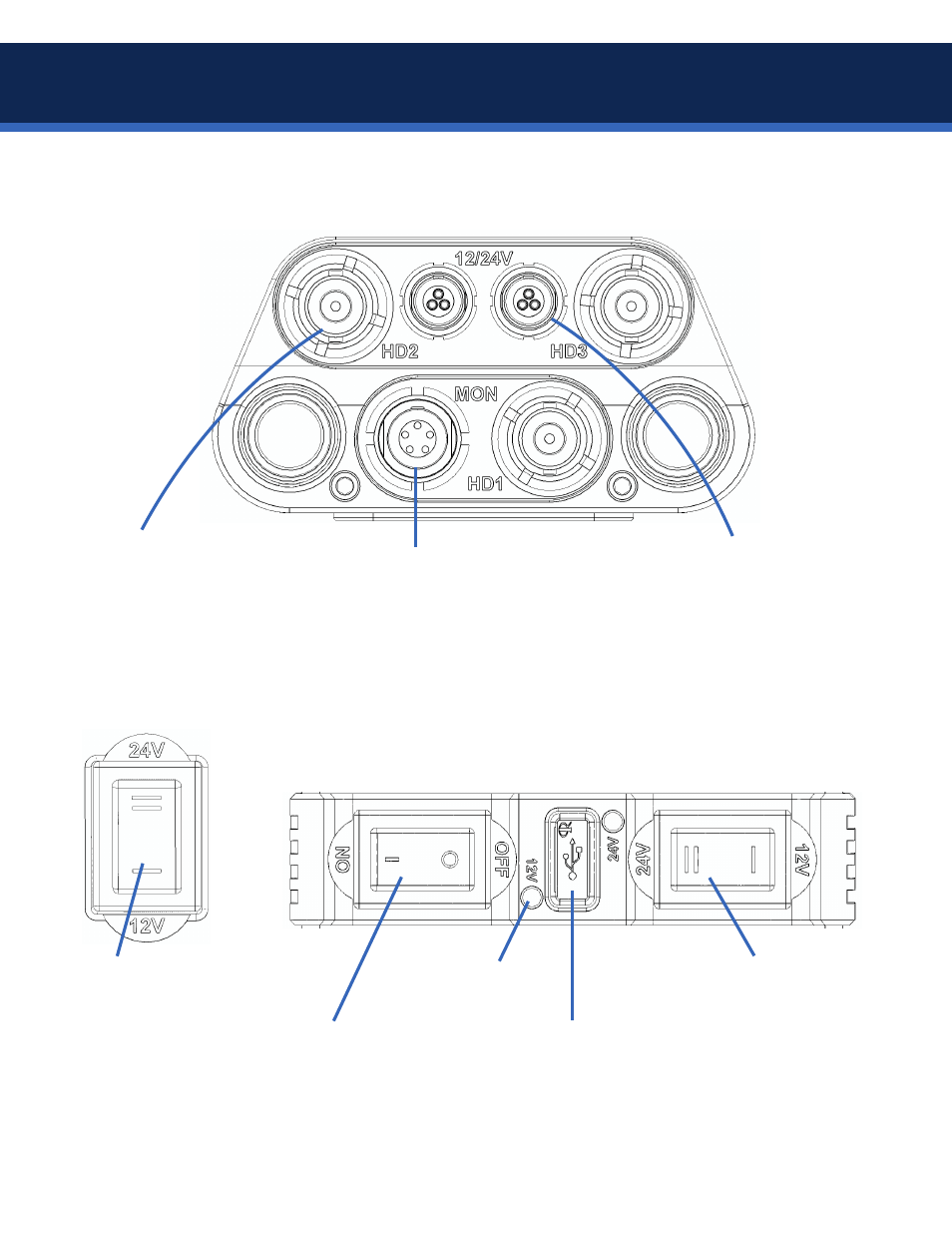

Triple HD video ports
HD-SDI compatible
Direct connections to the stage
Color coded at each end
Front Electronics
Monitor Port
LEMO® 5-pin 1B connector
Power and tally signal
No SD video signal
Double 12/24V ports
LEMO® 3-pin 0B connector
12 volts supplied at all times
12 and 24 volts simultaneously
when in 24V mode
Power Switch
Controls all power ports
Rear Electronics
USB-A Port
5V, 1.5A output
12/24Volt Switch
12V with any battery combo
24V available with 2+ batteries
3rd battery
12 Volt mode
24 Volt mode
NOTE: For a complete explanation of how the switches operate with a variety of batteries on board, see page 46.
Power LEDs
Indicate 12V or 24V
Base electronics
