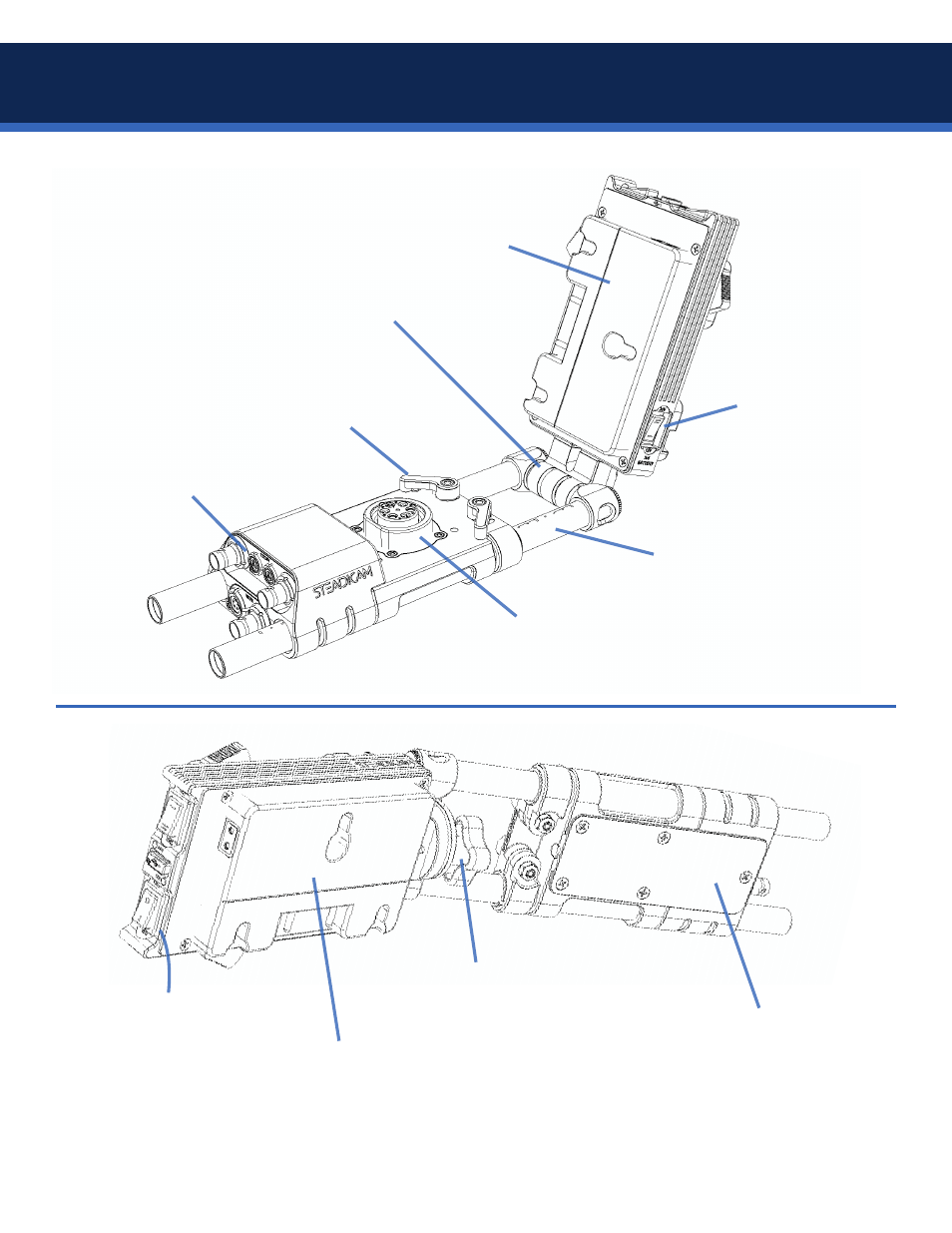

Base and battery mount components – SmartSystem Matrix Sled Chimera (Gold Mount) User Manual
Page 42
Rear Electronics
On/Off and 12/24V switches
LEDs indicate 12/24V mode
5V USB power port
3rd Battery Port
Remove this cover to mount
Integrated wiring
Rear Battery (#1)
With 12V P-Tap
V-lock or Gold Mount
Clamp Knob
Secure the angle of batteries
Battery Rods
LWS 15mm by 60mm spacing
Industry-standard threaded ends
Front Battery (#2)
With 12V P-Tap
V-lock or Gold Mount
Front Electronics
High-definition video ports
Power ports
Base Connector
Modular mechanical and electronics junction
Indexed to ensure exact alignment with post
3rd Battery Switch
Choose 12V or 24V
when running 3rd battery
Battery Pivot
Adjustable friction
180˚ range
Clamp Levers
Lock or release the battery rods
NOTE:
The base and battery mount section of this user guide covers product numbers M2-VLBASE and M2-GMBASE. For product
numbers M1-VLBASE and M1-GMBASE, refer to the original M-1 manual (LIT-815000.)
Base and battery mount components
