11-44
Maintenance and service
spring securely.
7. Reconnect the electrical connector.
8. Install the bulb cover.
9. Install the air intake duct with clip.
(right-hand side)
10.Set the washer tank to the original
place and secure it by clip. (left-hand side)

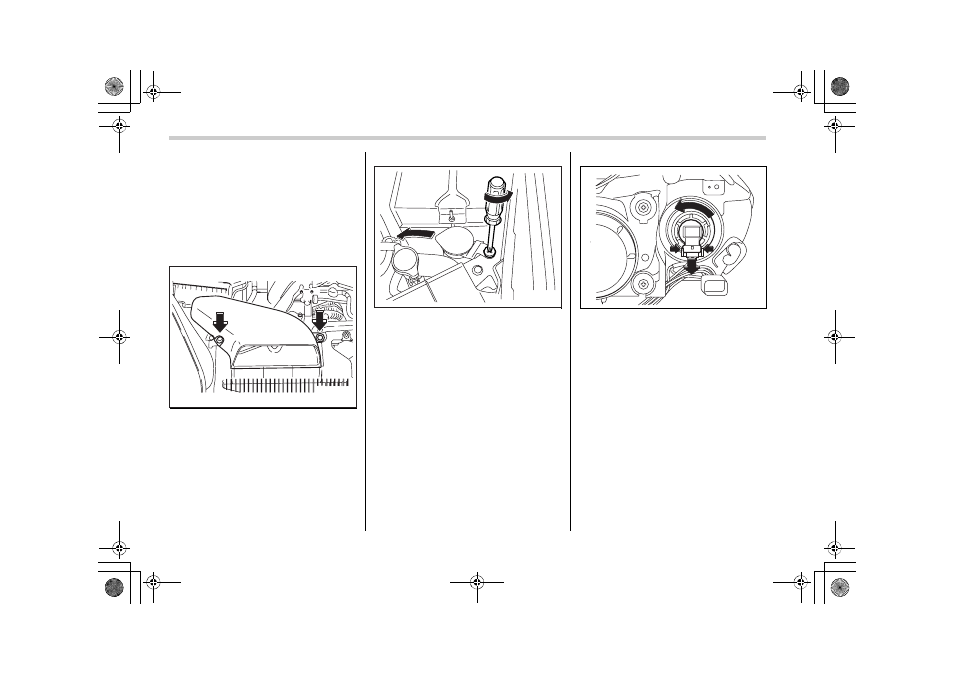

T High beam light bulbs
0
Right-hand side
1. Use a screwdriver to undo the clips on
the air intake duct, then remove the air in-
take duct. (right-hand side)
Left-hand side
2. Use a screwdriver to remove the se-
cured clip of the washer tank. To make it
easy to access the bulb, move the washer
tank to the horizontal direction. (left-hand
side)
3. Disconnect the electrical connector
from the bulb.
4. Remove the bulb from the headlight
assembly by turning it counterclockwise.
5. Replace the bulb with new one.
6. Reconnect the electrical connector. At
this time, use care not to touch the bulb
surface.
7. To install the bulb to the headlight as-
sembly, turn it clockwise until it clicks.
8. Install the air intake duct with clip.
(right-hand side)
9. Set the washer tank to the original
place and secure it by clip. (left-hand side)
B00116 B00542
B00116 B00542 B00541 B00342
