USB-2527 User's Guide Installing the USB-2527
20

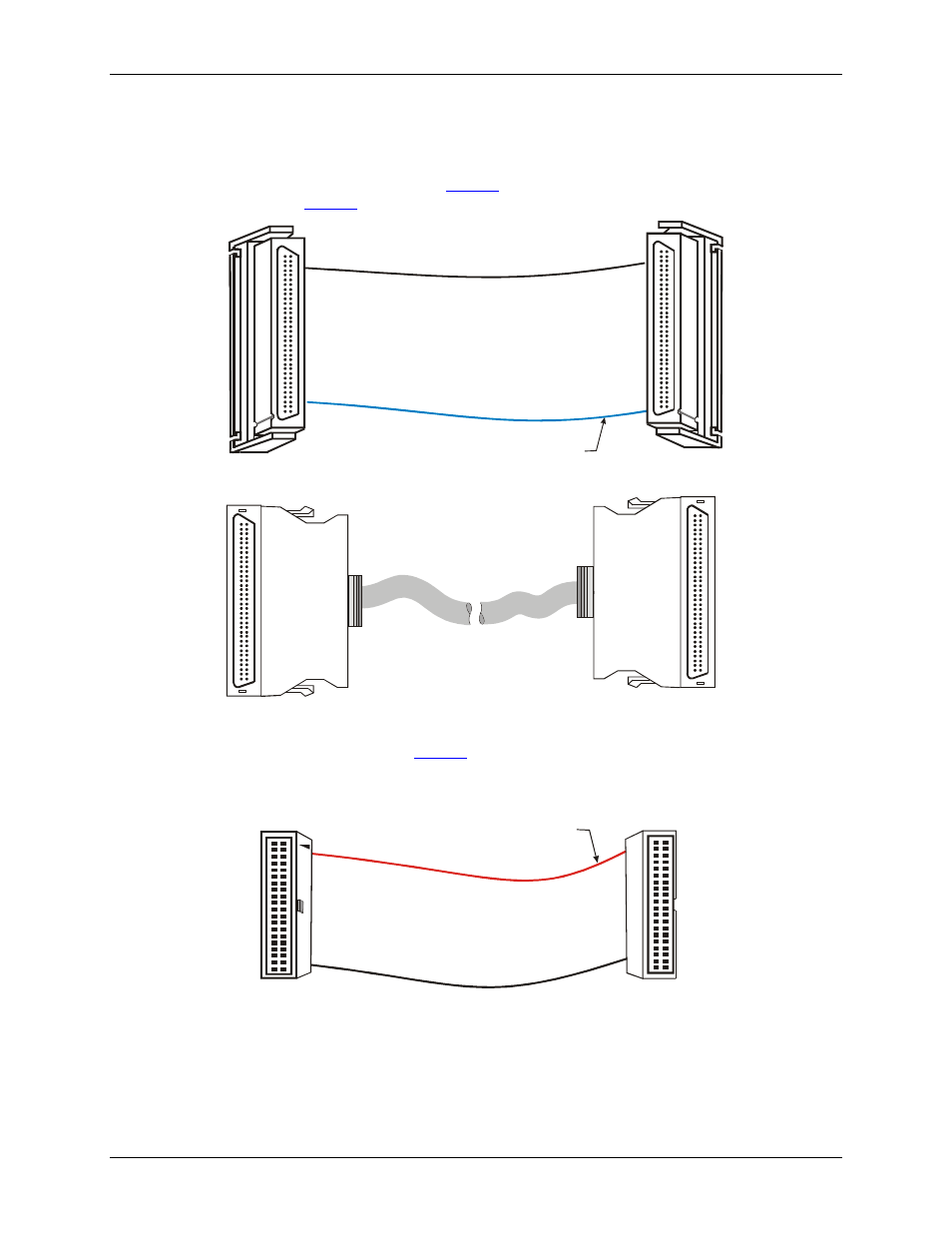

Cabling
Use a CA-68-3R 68-pin ribbon expansion cable ( Figure 3 ), or a CA-68-3S (3-foot) or CA-68-6S (6-foot) 68-pin
shielded expansion cable ( Figure 4 ) to connect signals to the USB-2527's 68-pin SCSI connector.
The stripe
identifies pin # 1
68 34
35 1
68
35
34
1
Figure 3. CA-68-3R cable
68 34
1 35
34
1
68
35
Figure 4. CA-68-3S and CA-68-6S cable
Use one or more C40FF-x- ribbon cable(s) ( Figure 5 ) to connect signals to one or more of the USB-2527's 40-
pin header connectors.
The red stripe
identifies pin # 1
40-pin Female
IDC Connector
1 2
39 40
40-pin Female
IDC Connector
1 2
39 40
Figure 5. C40FF-x cable
