SF-2050 User Guide – Rev. G
Table 4: Serial Cable Pin-Outs
LEMO
Pins
Signal Nomenclature
[DCE w/respect to DB9] DB9S
Pins
1
CTS - Clear To Send
5VDC to TruBlu
1
8
2 RD - Receive Data 2
3 TD - Transmit Data 3
4 DTR - Data Terminal Ready 4
5 RTN - Return [Ground] 5
6 DSR - Data Set Ready 6
7 RTS - Request To Send 7

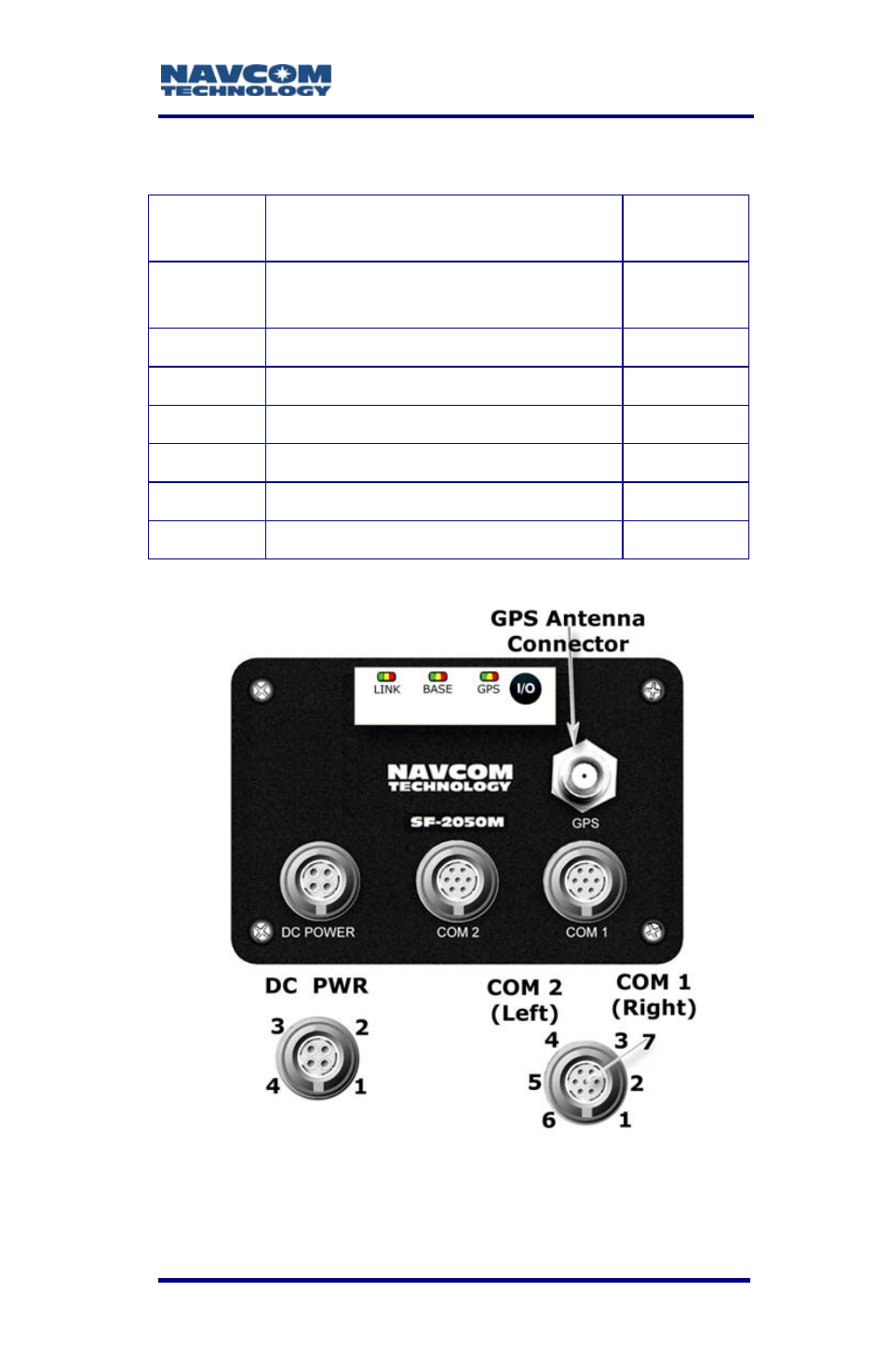

Figure 5: SF-2050 Front View
1
TruBlu – NavCom’s Bluetooth wireless accessory
2-33
