SF-2050 User Guide – Rev. G
B-69
Radiation Pattern
24º
0dB
0dB
-4dB @ 5º
32º
-4.5dB @ 5º
6.5dB @ 90º
07-00008-A

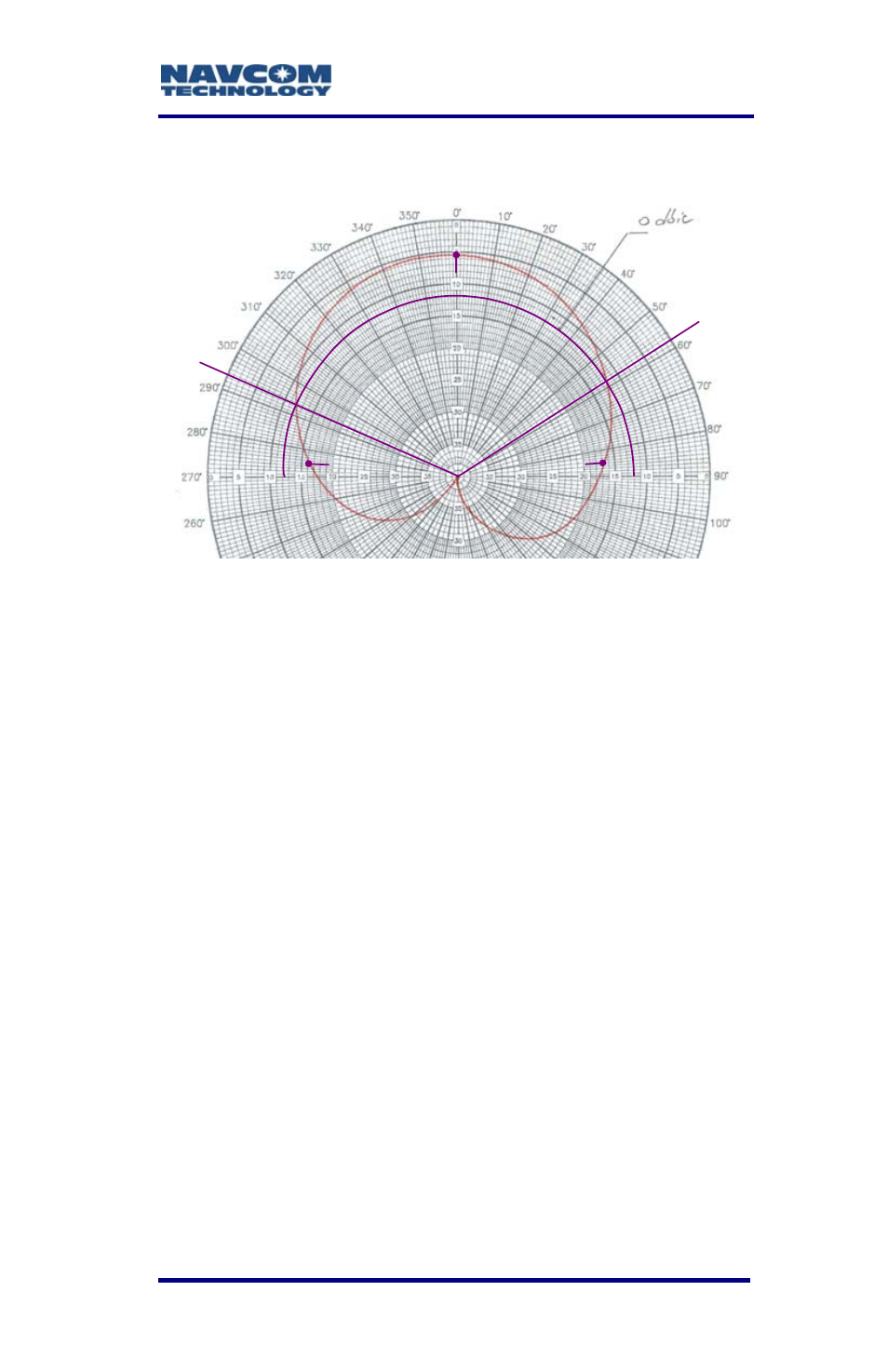

Figure B2: AN-2004T Radiation Pattern
Optimal antenna performance is realized at
elevations greater than 30º.
There is a 10dB variation between 0º and 90º
elevation (factor 10x); therefore, lower
elevation satellites are always more difficult to
track.
There is a 5dB variation between ~35º and 0º
elevation (factor >3x)
