SF-2050 User Guide – Rev. G

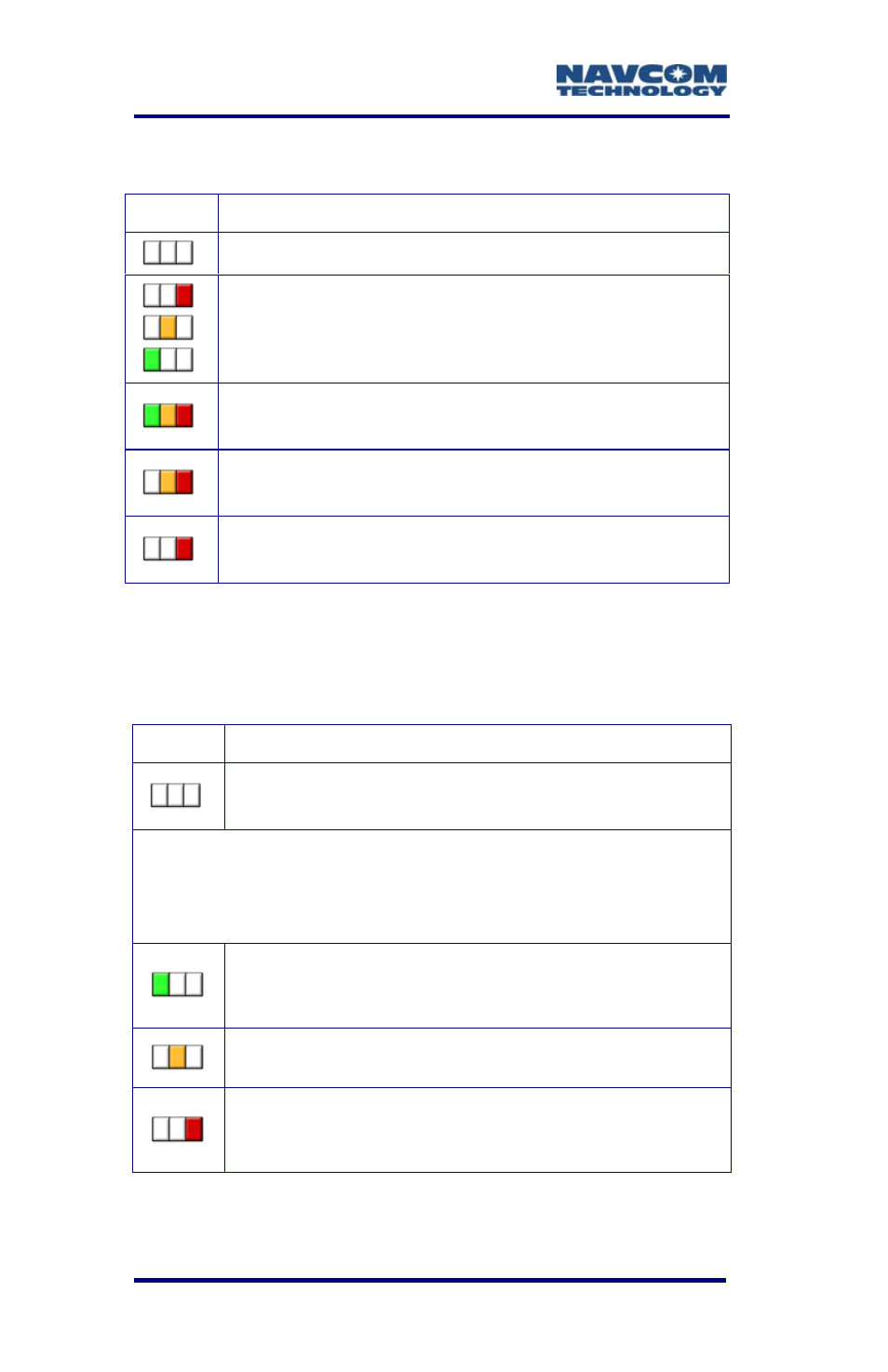

Table 5: Link LED Indication (Default)
LINK Status
Command Mode
Repeating Red to Amber to Green indicates
Searching StarFire™ signal
C/No >8dB - Strong Signal Strength from
StarFire™
C/No >4dB but <8dB - Medium Signal
Strength StarFire™
C/No <4dB - Weak Signal Strength
StarFire™
Base
LEDs
Table 6: Base Station Indication
BASE Status
The BASE LEDs are not utilized in
StarFire™ operating mode
The following BASE LEDs reflect the type of RTK
corrections when the SF-2050 is operated as a Base
Station
RTK/UltraRTK™ - NCT Proprietary
(1Hz blink rate)
CMR (1Hz blink rate)
RTCM 18, 19 (1Hz blink rate)
20, 21 (5Hz blink rate)
