SF-2050 User Guide – Rev. G
Block Diagrams
The SF-2050 has three user configurable physical
communications ports (two external and one internal)
and several logical communications ports. To aid in
distinguishing these ports, please refer to the block
diagrams below.

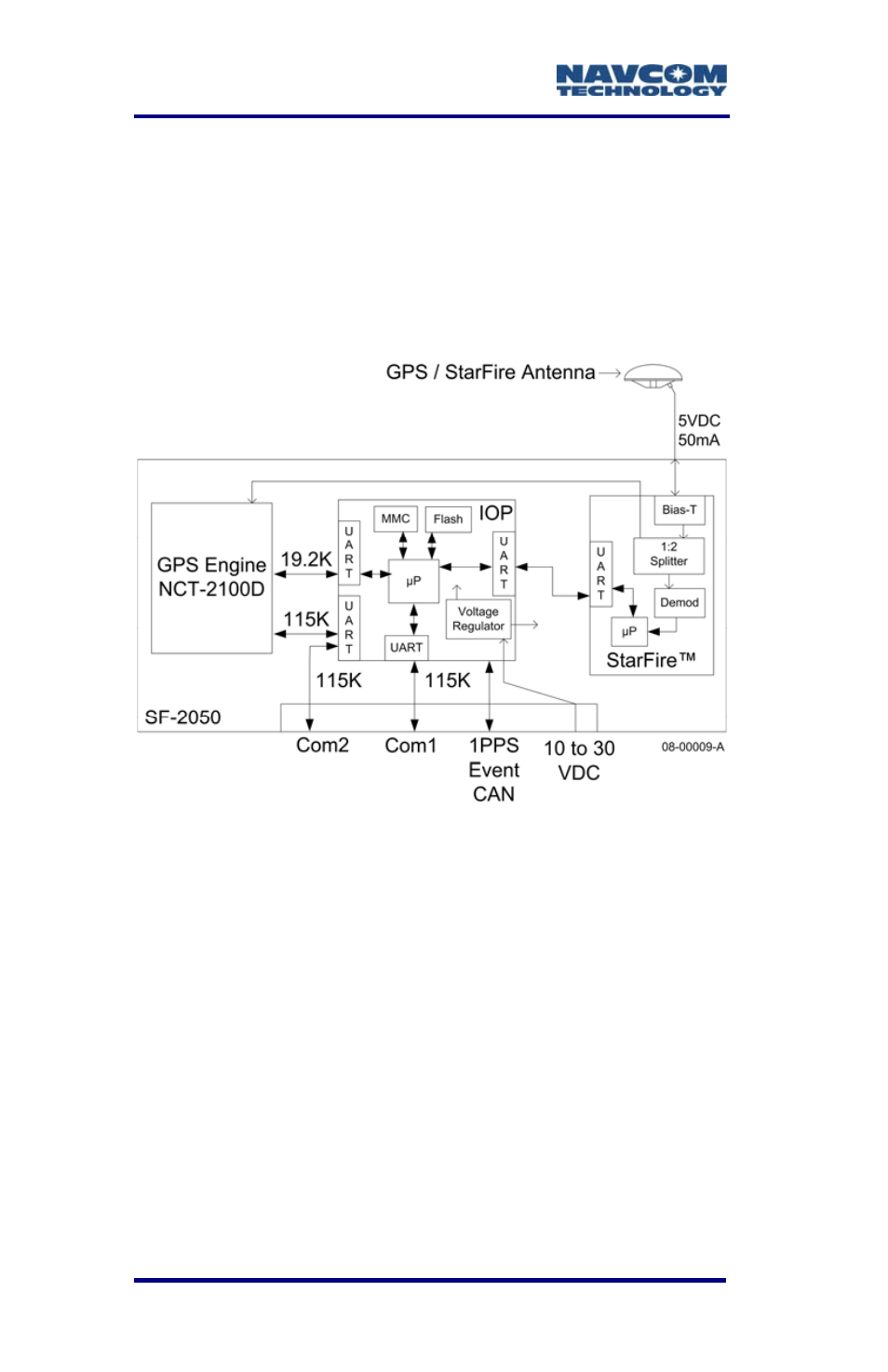

Figure 11: SF-2050G/M Block Diagram
‡
These user configurable physical ports
are Com1, Com2, and
Radio/Diagnostic. The Com ports are
described in the next section. The
Radio/Diagnostic port connects to an
internal UHF radio in NavCom’s RT-
line of products and is not used, nor
should it be assigned as a logical port
in any of the SF-2050 products.
3-46
