8900NET (Net Card) — Instruction Manual 23
Establishing Frame Network Identity

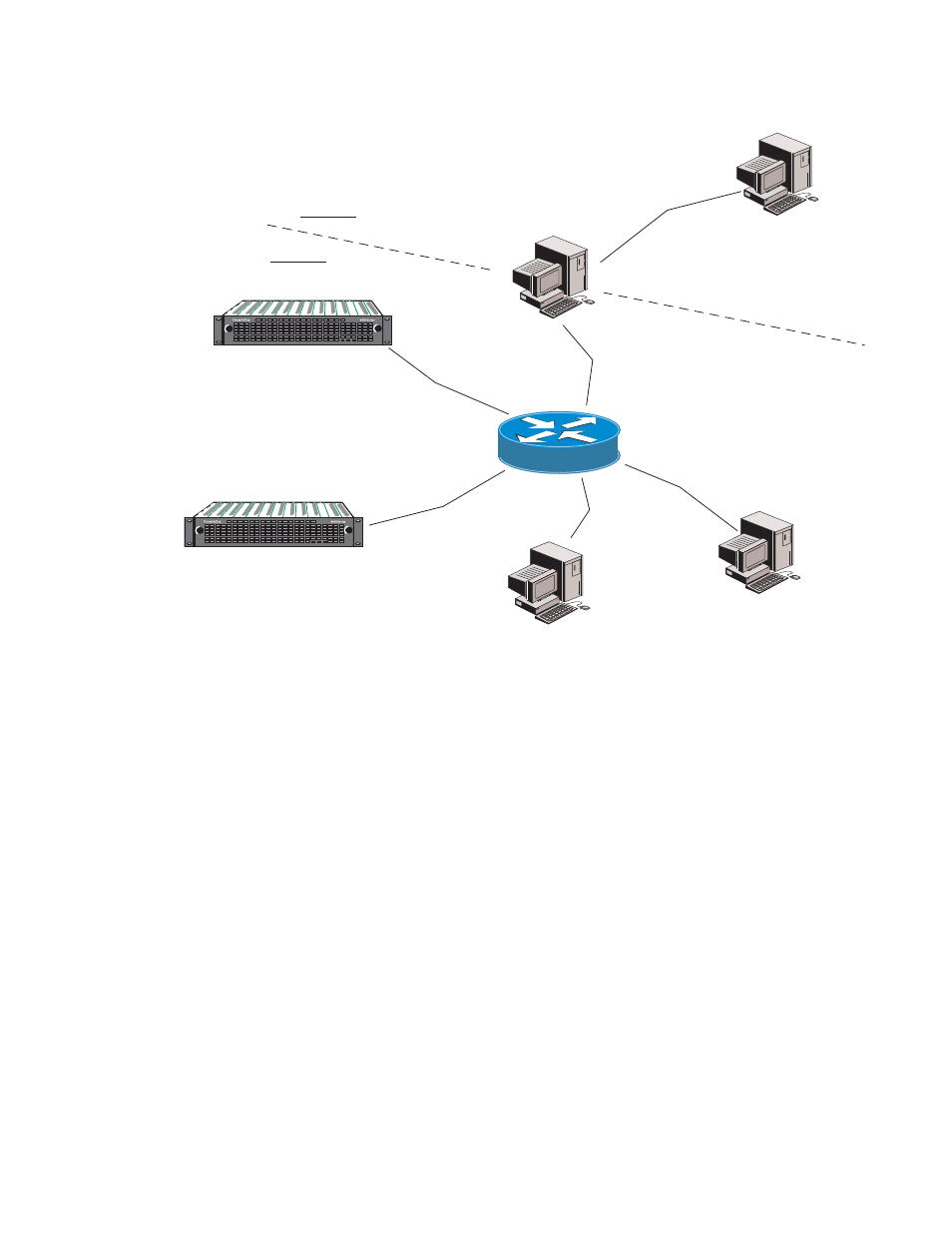

Figure 13. Local IP and Subnet Addressing
Setting Frame Network Identity
After you have connected the PC to the RS-232 port (refer to Setup of Frame
Communication Parameters on page 15 ) and established communication
using the terminal emulation application, press the enter/return key
several times to see the active prompt.
At the prompt enter:
setup
You will see:
-> setup
Here are the current parameters and their values:
Local IP Address: 192.168.0.105
Gateway IP Address: 192.168.0.1
Subnet Mask: 255.255.255.0
If a change is made, it is necessary to reboot
0612-17
r1
