Sunny Data Control User Interface SMA Technologie AG
Page 40 SDC-TEN080642 User Manual
7. 3 Display Area

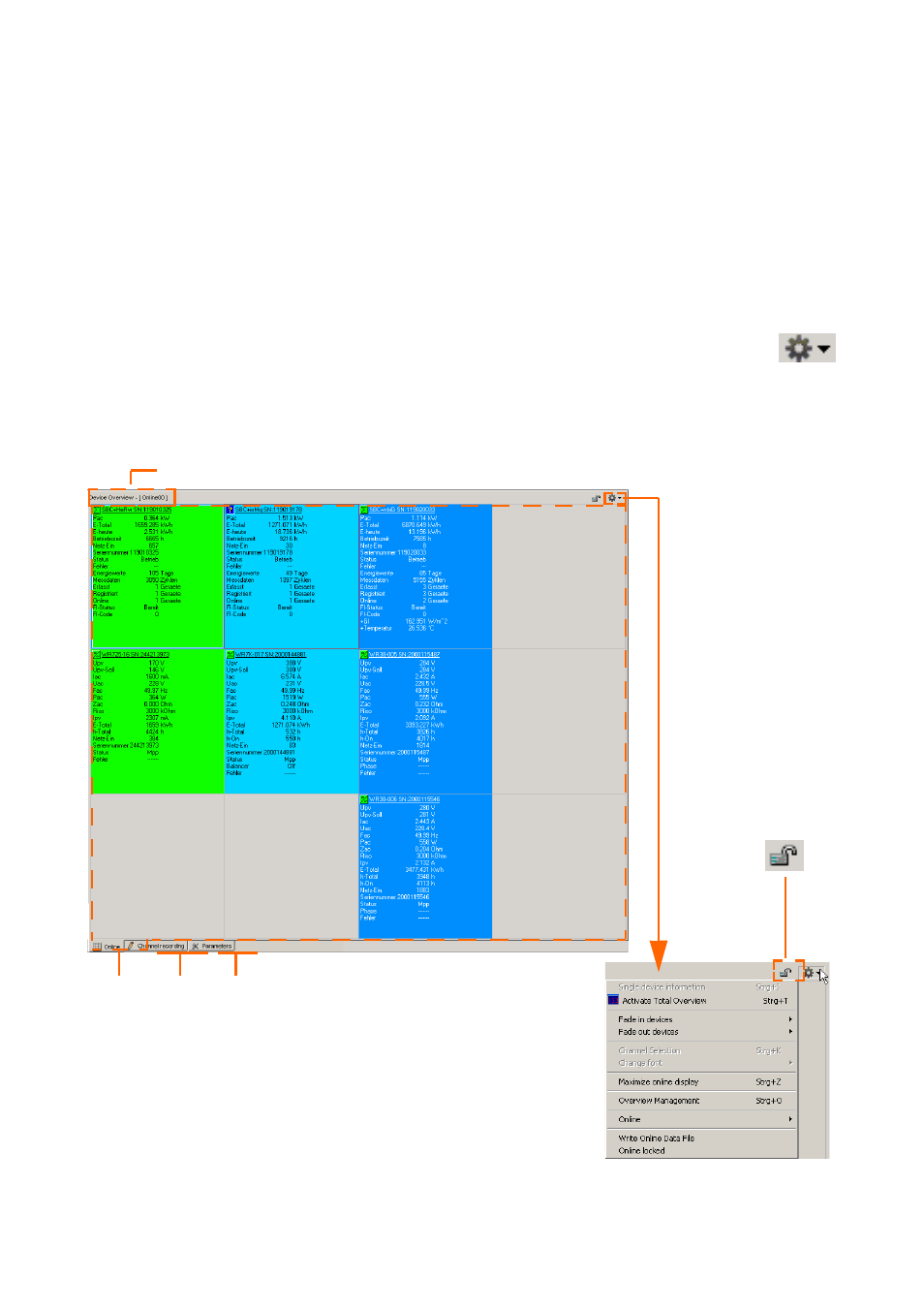

In the display area, three different pages can be called up via the three tabs (see figure
below):
- Spotvalues (here, the page "Device Overview" is displayed)
- Channel recording (here, the page "Archive Channels" is displayed)
- Parameters (here, the page "Parameters" is displayed)
You can call up the Device Overview menu ("Spotvalues" tab) via the following
icon:
(see also figure below), or by clicking on the field of the respective device with the right
mouse button. Some of the actions which you can select in the display area menu apply
to the currently selected device, while other actions apply to all devices.
Three tabs
(here: "Spotvalues" tab active)
Device overview menu
Name of the current page (here: device overview).
("Spotvalues" tab)
Lock
online display
(device overview)
