YASNAC PCNC Connecting Manual
Chapter 10: Connection of General Purpose I/O
(3) I/O Module (JANCD-JSP02/JSP04)
(a)Input circuit
COM
RV
(a) For 0V common
.
+24V
5.1mA
0
24
RV
.
+24V
0
24
COM
5.1mA
(b) For +24V common

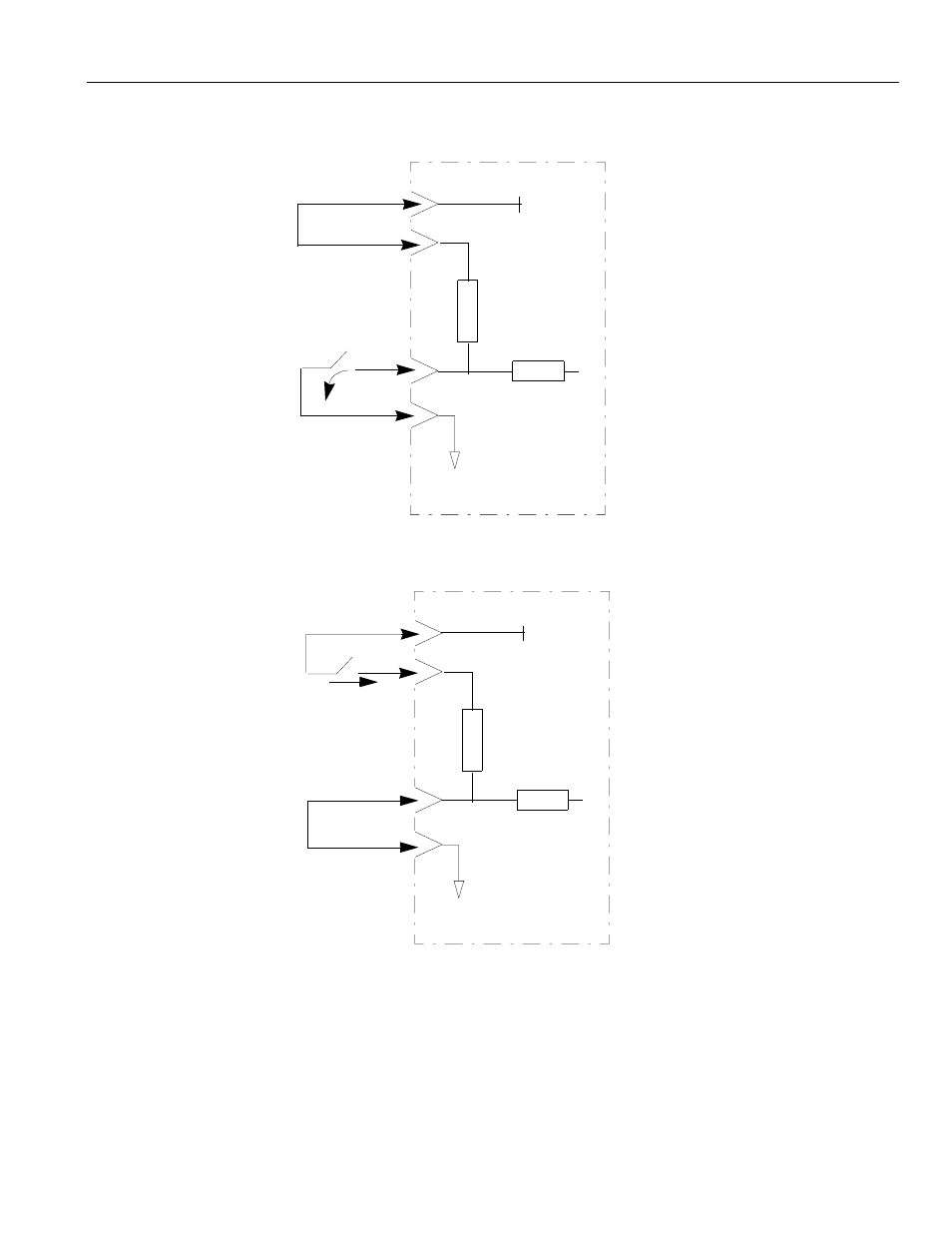

FIGURE 10.3.2.11 Input Circuit
