YASNAC PCNC Connecting Manual Chapter 2: Power Supply

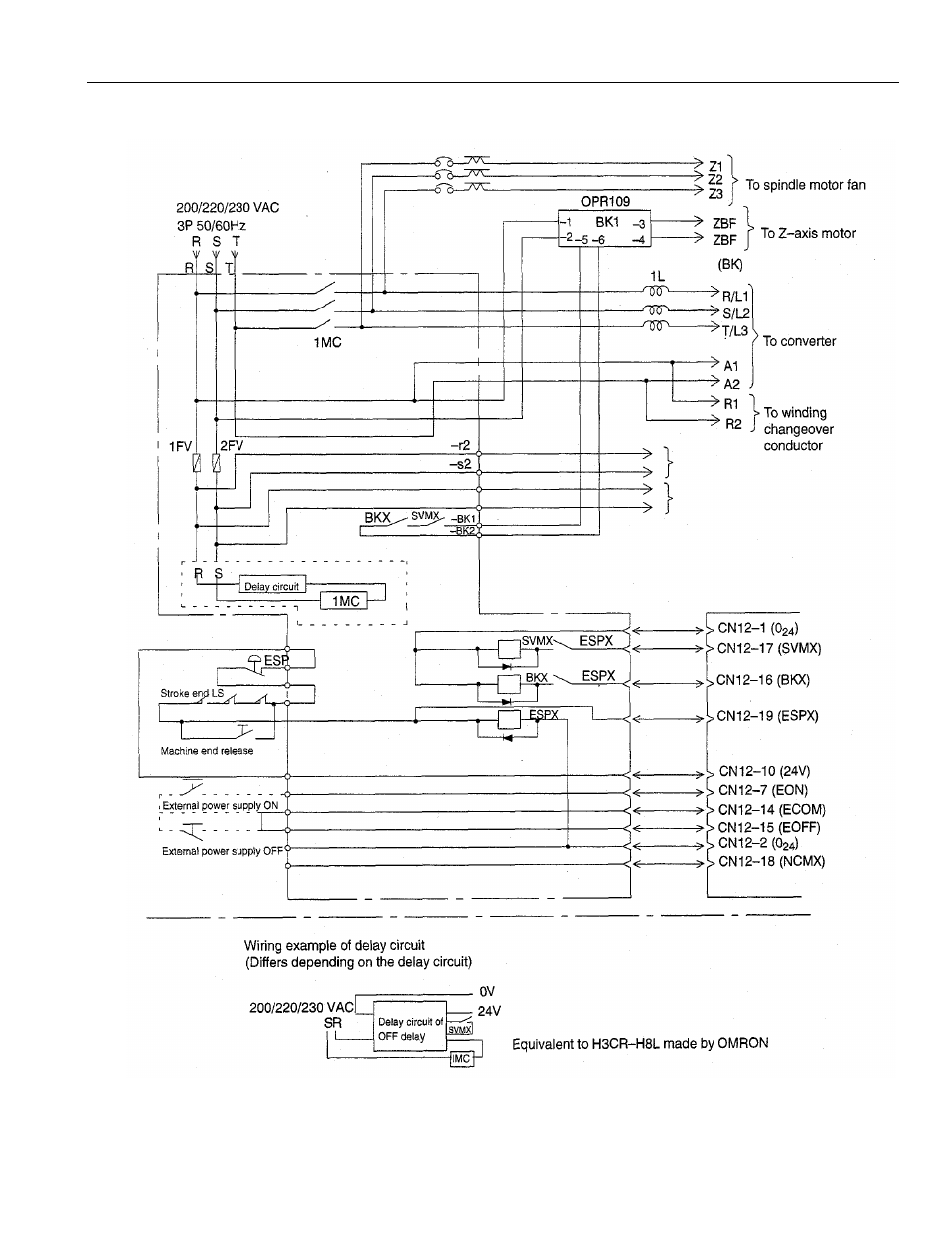

2.2.3 Circuit Diagram Example (Power magnets & PCNC CN12 Control Signals)
To Customer PWR supply
To fan for air circulation
inside panel
CN12 (IPU)
FIGURE 2.2.3.2 Circuit Diagram Example
