13. Options
13.1 Communication software APT-COM™ 3 DataControlSystem (option)
The unit is regularly equipped with a serial interface RS 422 that can connect the BINDER communica-
tion software APT-COM™ 3 DataControlSystem. The connection to a computer is established using the
FDL interface via an interface converter RS 422 / RS 232.
Confirm that the interface mode is correctly set to “Modbus” in the user level (chap. 10).
The actual temperature values are given at adjustable intervals. Programming can be performed graph-
ically via PC. Up to 30 chambers with RS 422 interface can be cross linked. For further information,
please refer to the operating manual of the BINDER communication software APT-COM™ 3.
Pin allocation of the RS 422 interface at the rear of the incubator:
Pin 2: RxD (+)
Pin 3: TxD (+)
Pin 4: RxD (-)
Pin 5: TxD (-)
Pin 7: Ground
13.2 Ethernet interface (available via BINDER INDIVIDUAL customized solutions)
With this option, the chamber is equipped with an Ethernet interface that can connect the BINDER com-
munication software APT-COM™ 3 DataControlSystem. The actual temperature values are given at ad-
justable intervals. Programming can be performed graphically via PC. Up to 30 chambers with RS 422
interface can be cross-linked. The MAC Address is indicated below the Ethernet interface. For further
information, please refer to the operating manual of the BINDER communication software APT-COM™ 3.
The additional RS422 interface is only used for service purposes. Do NOT connect it to any network. The
interface is labeled accordingly.
13.3 Coil-coating door flap (option)
The coil-coating flap serves to avoid the chamber cooling down while loading the drying oven. With this
option, the desired temperature is given from the beginning of the test period. The setting up process with
this option is the same as described in chap. 5.

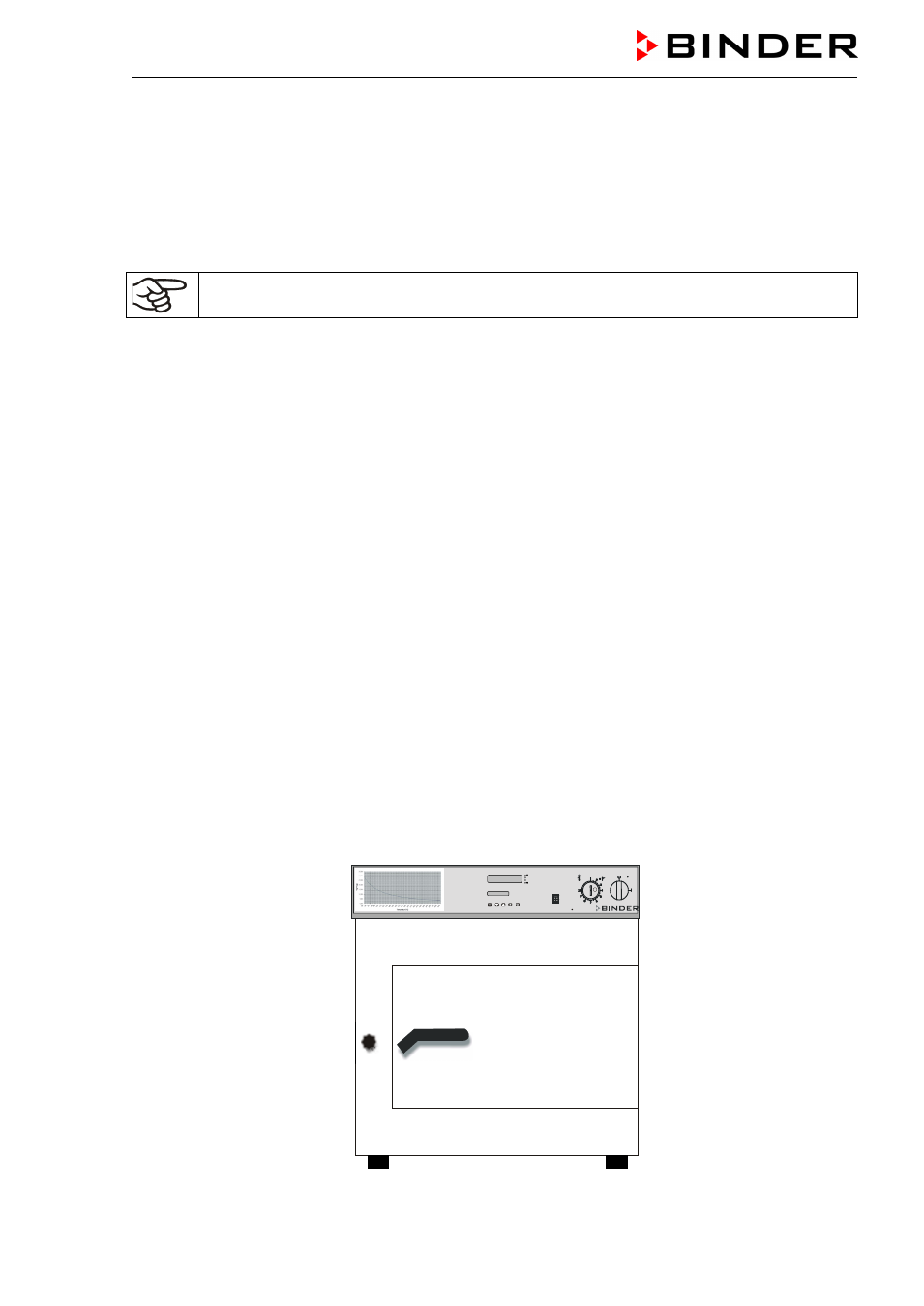

Figure 11: MDL with coil coating door flap (option
