3.3.3.2.2.2.- DVBT-2 (Option)
With this option, when the DVB-T/T2 mode is selected, the device automatically analyses the
digital terrestrial signal and detects the signal type. If it is a DVB-T signal, the meter will activate
the DVB-T functions.
If it detects a DVB-T2 signal, the main measurement will be LinkMargin, Power, C/N, LDPCBER,
BCHBER and MER.

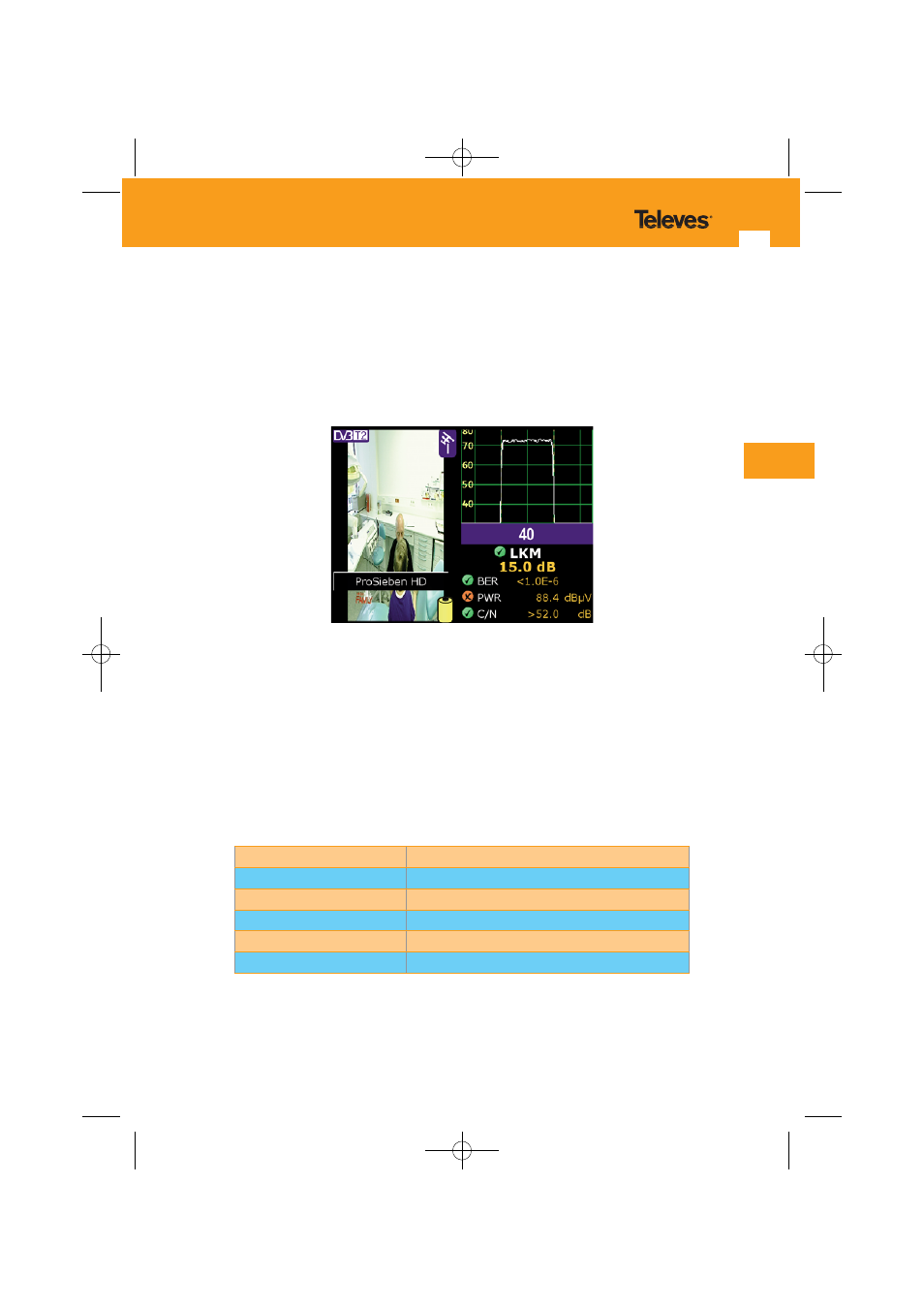

- DVB-T2 Combo Mode -
3.3.3.2.2.2.1-Parameters
The modulation parameters can be changed using this function. The device can automatically
detect all the parameters required for demodulation. Once demodulation occurs, the
parameters are displayed to the right of the word AUTO.
Carriers
1K,2K, 4K, 8K 16 K 32 K
Extended Mode
8K, 16K y 32K
Modulations
QPSK, 16QAM, 64QAM y 256 QAM
Pilot Pattern
PP1-PP8
Guard Interval
1/128, 1/32, 1/16, 1/8, 19/128 y 19/256
Code Rate
½, 3/5, 2/3, ¾, 4/5, 5/6
