- Yellow bar: acceptable quality, but recommending improvement
- Red bar: bad quality
The abbreviated window (only terrestrial band), which only contains:
- Frequency or channel on which the measurement is being made
- Name of the measure selected
- Value of the measurement
We can change the main measure of each window by using cursors (the cursors are
enabled when the menu is hidden).
3.3.3.2.1.1- Level
If the channel tuning mode is selected, this function will measure the level of the carrier for the
tuned channel. Contrarily, if the frequency tuning mode is selected, the window will show the
signal level of the tuned frequency.
The tuned frequency can be varied by using the (in the terrestrial band with a resolution
of 50 KHz, and satellite also 50 KHz), or by using the numerical keyboard.
On the extended window, as well as measuring the level, the C/N and V/A of the terrestrial
band and the C/N of the satellite band can be measured.

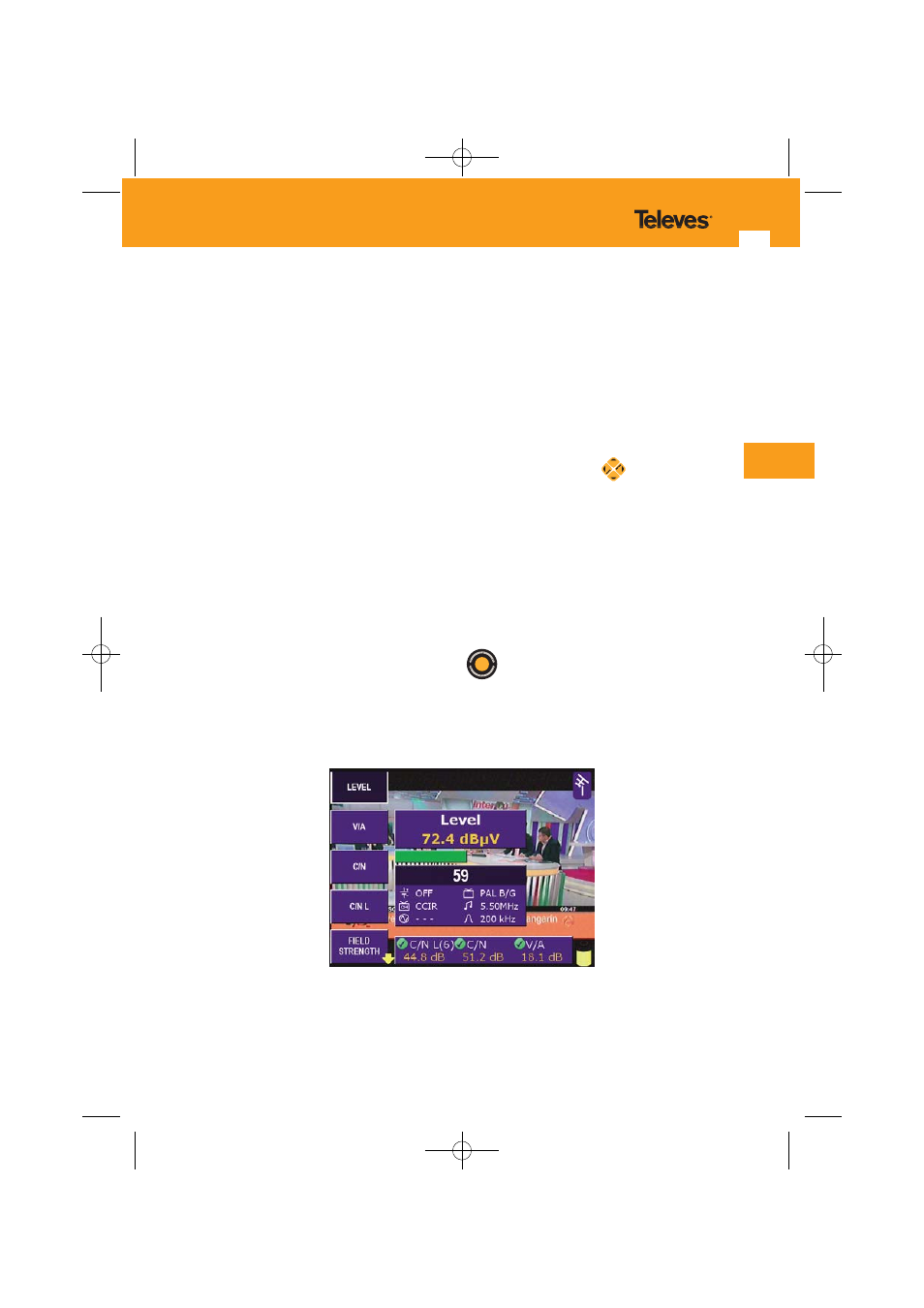

- Extended level measurement -
