3.3.1.6.3.3.- SCAN&LOG
The serial SCAN&LOG function that is incorporated in the meter automates the equipment to
scan the terrestrial and satellite bands and carry out measurements as a function of selectable
parameters.
- SCAN&LOG -
This function enables the automatic identification of the analog or digital nature of a channel, in
the satellite band if we are analysing a DVB-S2 or DVB-S channel and carryout the necessary
measures for each one. These measurements are stored as a
DATALOG .
In the SCAN&LOG mode, we use the to browse through different available options, and
press the button if we wish to enable the option chosen.

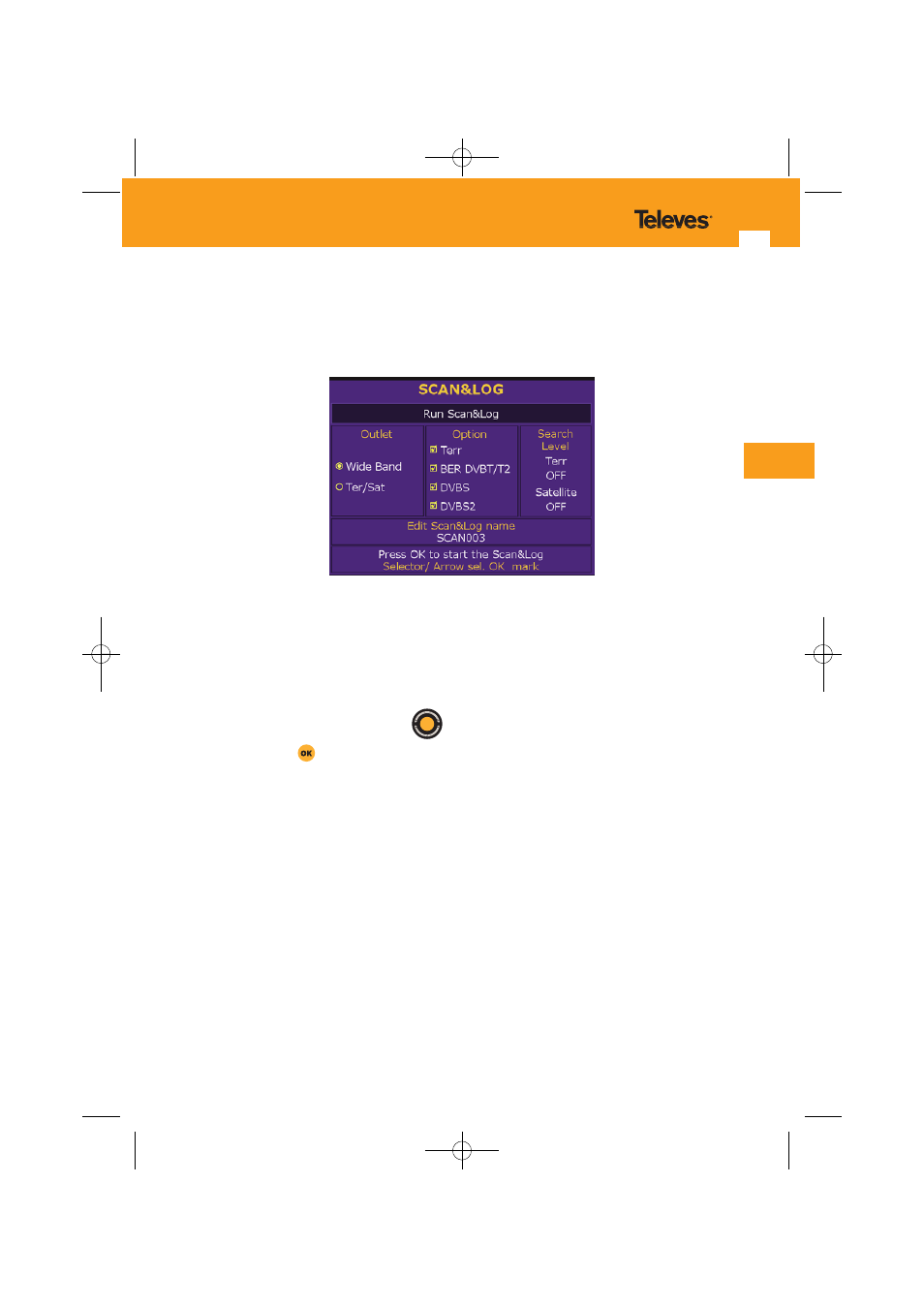

In the diagram one can see three different columnss.
The first one on the left, with the heading Socket has two verification boxes that indicate the
type of socket we have: The one indicating Ter/Sat is really for those installations where the
satellite and terrestrial signal are on different sockets, therefore, when the terrestrial bandwidth
analysis has finalised, a message will appear indicating the socket must be changed in order to
continue with the satellite bandwidth analysis. The one indicating
Broad Band carries out a full
analysis of both bandwidths without having to change sockets.
In the Option column we can select the type of measurement we want the meter to take. The
options are the following:
- Terrestrial
- DVB-T/T2
- DVB-S
- DVB-S2
