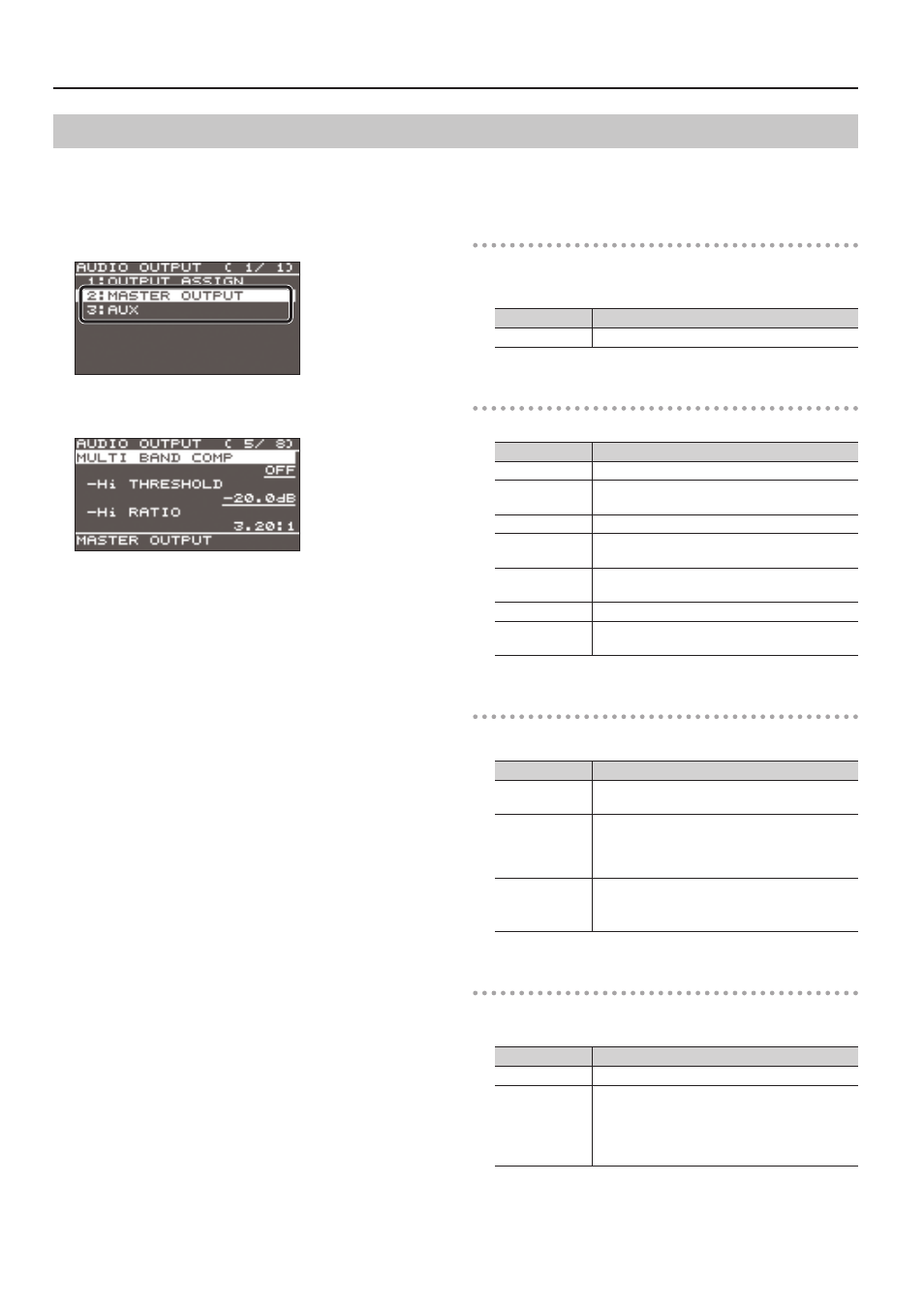

28

Audio Operations

Applying Effects to Output Audio

This applies effects and adjusts the sound quality for master out and AUX-bus audio.
* Only the limiter can be used on AUX-bus audio (p. 26).

1.

Select the [MENU] button

0

“AUDIO OUTPUT”

0

“MASTER

OUT” or “AUX.”

2.

Select an effect menu item, then use the [VALUE] knob to

adjust it.

* For more information about effects, refer to the following

section.

3.

Press the [VALUE] knob to apply the setting.

4.

Press the [MENU] button to quit the menu.

Delay (DELAY)

This outputs audio with a delay.
Delaying audio output lets you align the output timing of video

and audio.

Menu item

Explanation

DELAY

This adjusts the delay time for output audio.

Equalizer (EQ)

This adjusts the sound quality for each frequency band.

Menu item

Explanation

EQ Hi

This boosts or attenuates the high band.

EQ Hi FREQ

This adjusts the center frequency when changing

the sound quality in the high band.

EQ Mid

This boosts or attenuates the middle band.

EQ Mid FREQ

This adjusts the center frequency when changing

the sound quality in the middle band.

EQ Mid Q

This adjusts the width of the frequency band

when boosting or attenuating the middle band.

EQ Lo

This boosts or attenuates the low band.

EQ Lo FREQ

This adjusts the center frequency when changing

the sound quality in the low band.

Multi-band compressor (MULTI BAND COMP)

* MASTER OUTPUT only

This applies separate compressors in individual frequency bands.

Menu item

Explanation

MULTI BAND

COMP

This switches the multi-band compressor on and

off.

Hi THRESHOLD
Mid THRESHOLD
Lo THRESHOLD

These set the individual levels that become the

thresholds for the high, midrange, and low bands

at which the compressor is applied. Compression

is applied to audio that exceeds the threshold.

Hi RATIO
Mid RATIO
Lo RATIO

These set the amount of compression applied in

the high, midrange, and low bands. The state in

which no compression is applied is defined as “1.”

Limiter (LIMITER)

This limits the output volume so that is does not exceed the set

level.

Menu item

Explanation

LIMITER

This sets the limiter on or off.

THRESHOLD

This sets the level that becomes the threshold at

which the limiter is applied.
Compression is applied to audio that exceeds the

threshold. The volume level of audio that is output

is limited so as to stay to below the threshold.

* AUX only

* MASTER OUTPUT only
