9

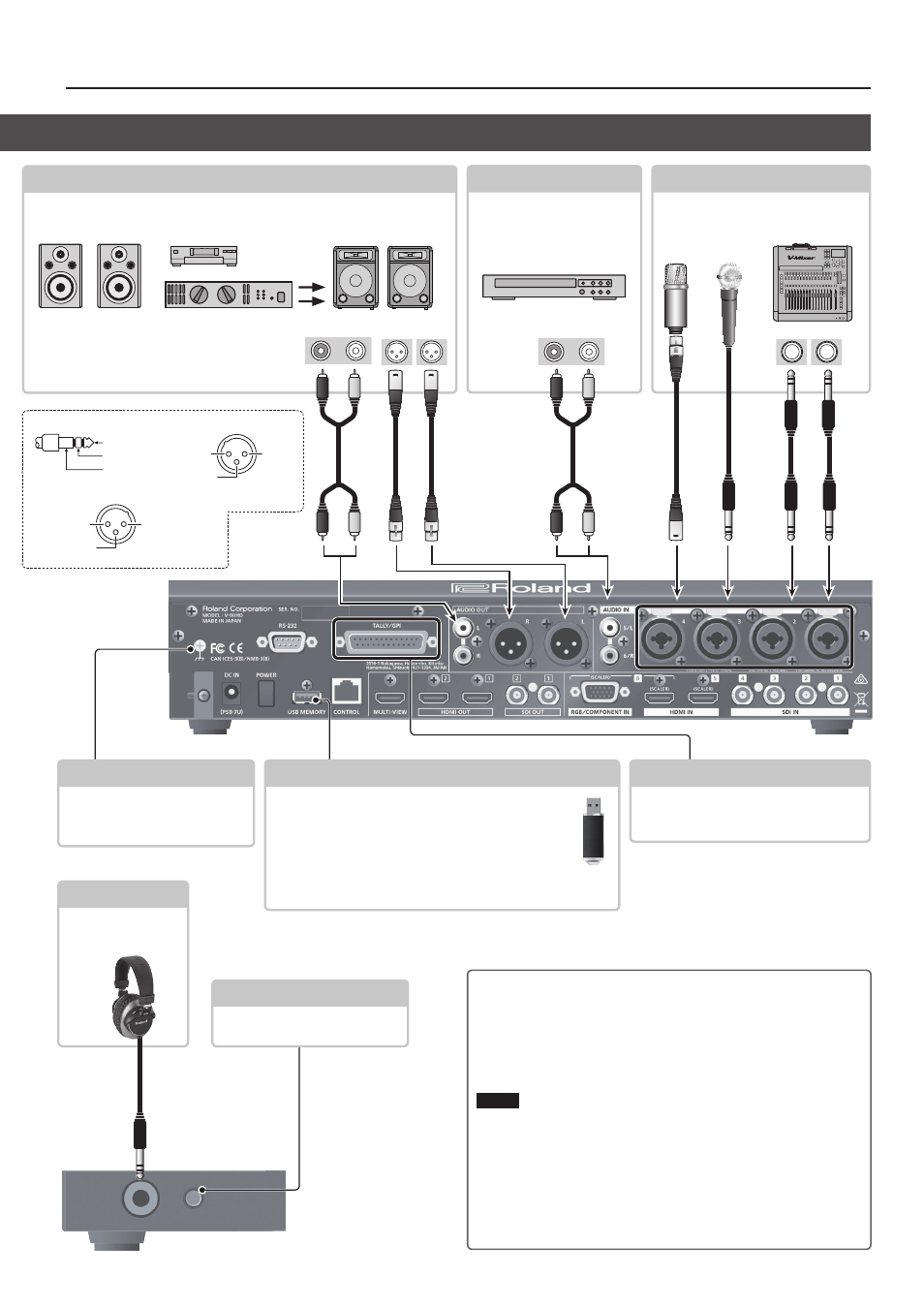

Panel Descriptions
AUDIO IN 5/6 jacks
These jacks input audio
signals from video decks, CD
players, and other such audio
equipment.
AUDIO IN 1–4 jacks (XLR/TRS)
These jacks input audio signals from
microphones, audio mixers, and other
such audio equipment.
PHONES jack
Connect headphones
to this jack.
Stereo 1/4-inch
phone plug
Pin assignment of AUDIO IN 1–4 jacks (XLR/TRS)
1: GND 2: HOT
TIP: HOT
RING: COLD
SLEEVE: GND
3: COLD
2: HOT 1: GND
3: COLD
Pin assignment of AUDIO OUT connectors (XLR)
1: GND 2: HOT
TIP: HOT
RING: COLD
SLEEVE: GND
3: COLD
2: HOT 1: GND
3: COLD
AUDIO OUT connectors/jacks (XLR and RCA)
These output the results of audio mixing (master out). Connect them to an audio
recording deck, amplifier, speakers, or other such equipment.
Using Phantom Power
You can supply phantom power (+48 V) from the AUDIO IN 1 through
4 jacks. Turn on phantom power when you’re using a condenser
microphone that requires phantom power.
Select the [MENU] button
0 “AUDIO INPUT” 0 “AUDIO IN 1” through
“AUDIO IN 4” 0 set “PHANTOM +48V” to “ON.”
NOTE
Always turn the phantom power off when connecting any device
other than condenser microphones that require phantom power.
You risk causing damage if you mistakenly supply phantom power
to dynamic microphones, audio playback devices, or other devices
that don’t require such power. Be sure to check the specifications of
any microphone you intend to use by referring to the manual that
came with it.
(This instrument’s phantom power: 48 V DC, 14 mA Max)
Front Panel
Grounding terminal
Connect this to an external earth or
ground.
* Connect this if necessary.
TALLY/GPI connector
Connect devices provided with a tally-
light feature or with control-signal output
functionality to this connector.
[PHONES] knob
This adjusts the volume level for
headphones.
USB MEMORY port
Connect a USB flash drive to this port. You use it when
importing still images (p. 19) or when saving or loading
settings for the unit (p. 33).
* When using a USB flash drive for the first time, you must
format it using the V-60HD.
* Never turn off the power or remove the USB flash drive while the
USB flash drive is being accessed.
Audio input connectors Audio output connectors
1/4-inch TRS
phone plug XLR plug
* You can also output just AUX-bus audio
from the AUDIO OUT connectors and jacks
(XLR and RCA) and the PHONES jack (p. 26).
Audio output connectors
RCA
phono plug
RCA
phono plug XLR plug
