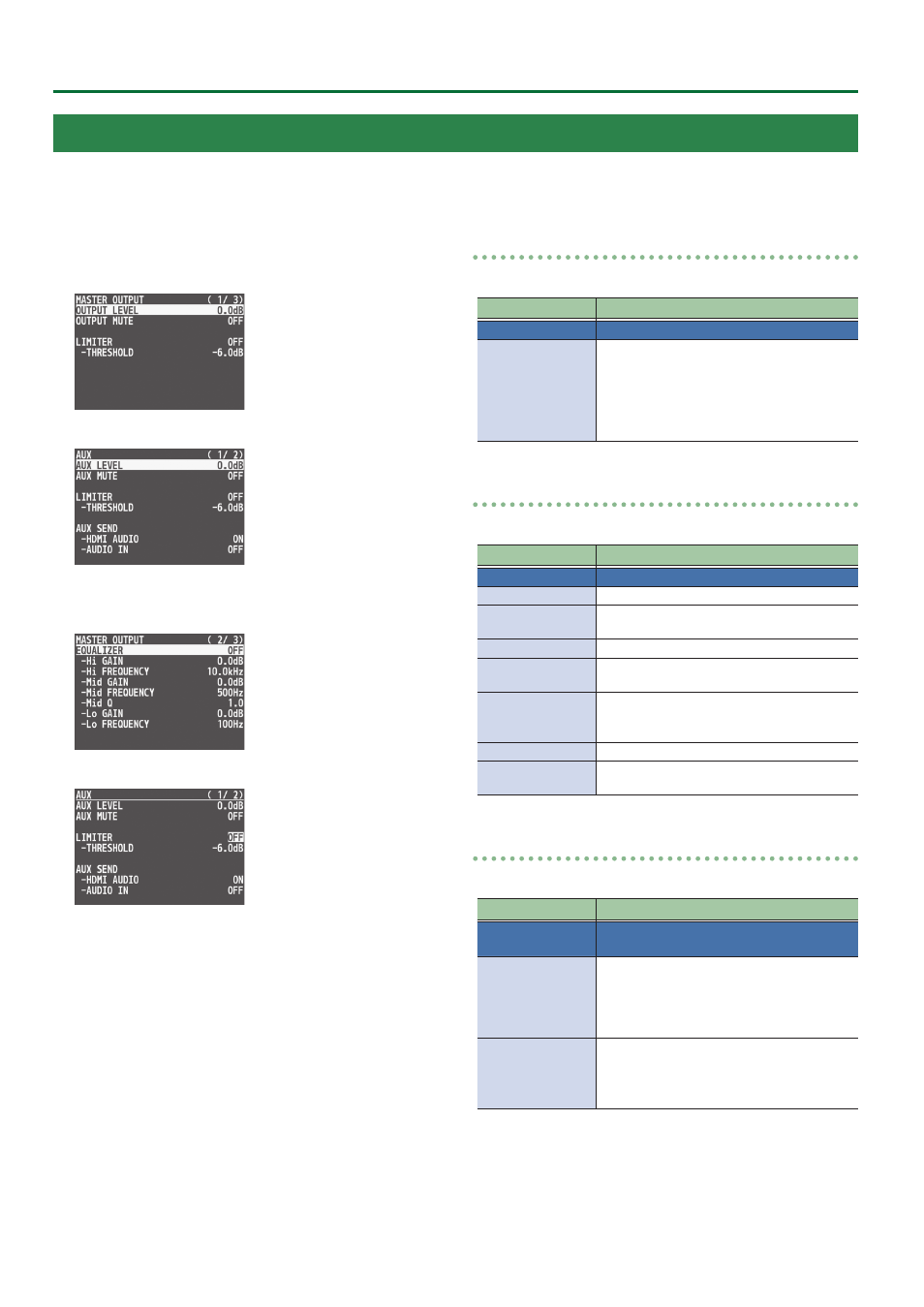

32
Audio Operations
1 . Press the [MENU] button 0 ”AUDIO OUTPUT” 0
select “MASTER OUTPUT” or “AUX,” and press the
[VALUE] knob.
(for AUX)
2 . Turn the [VALUE] knob to select an effect menu
item, and then press the [VALUE] knob.
(for AUX)
3 . Turn the [VALUE] knob to change the value, and
press the [VALUE] knob.
4 . Press the [MENU] button to quit the menu.
LIMITER
This limits the output volume so that is does not exceed the set level.
Menu item Explanation
LIMITER Turn the limiter on or off.
THRESHOLD
Adjusts the level that becomes the threshold
at which the limiter is applied.
Compression is applied to audio that exceeds
the threshold. The volume level of audio that
is output is limited so as to stay to below the
threshold.
EQUALIZER
This limits the output volume so that is does not exceed the set level.
Menu item Explanation
EQUALIZER Turns the equalizer on/off.
Hi GAIN Boosts or attenuates the high band.
Hi FREQUENCY
Specifies the center frequency when
changing the tone quality in the high band.
Mid GAIN Boosts or attenuates the middle band.
Mid FREQUENCY
Specifies the center frequency when
changing the tone quality in the middle band.
Mid Q
Adjusts the width of the frequency band
when boosting or attenuating the middle
band.
Lo GAIN Boosts or attenuates the low band.
Lo FREQUENCY
Specifies the center frequency when
changing the tone quality in the low band.
MULTI BAND COMPRESSOR
This applies separate compressors in individual frequency bands.
Menu item Explanation
MULTI BAND
COMPRESSOR
Turns the multi-band compressor on/off.
Hi THRESHOLD
Mid THRESHOLD
Lo THRESHOLD
Specify the individual levels that become the
thresholds for the high, midrange, and low
bands at which the compressor is applied.
Compression is applied to audio that exceeds
the threshold.
Hi RATIO
Mid RATIO
Lo RATIO
Specify the amount of compression applied in
the high, midrange, and low bands.
The state in which no compression is applied
is defined as “1.”
Applying Effects to Output Audio
You can modify the tonal character by applying effects to the audio output.
* You can apply a limiter (LIMITER) to the audio of the AUX bus.
