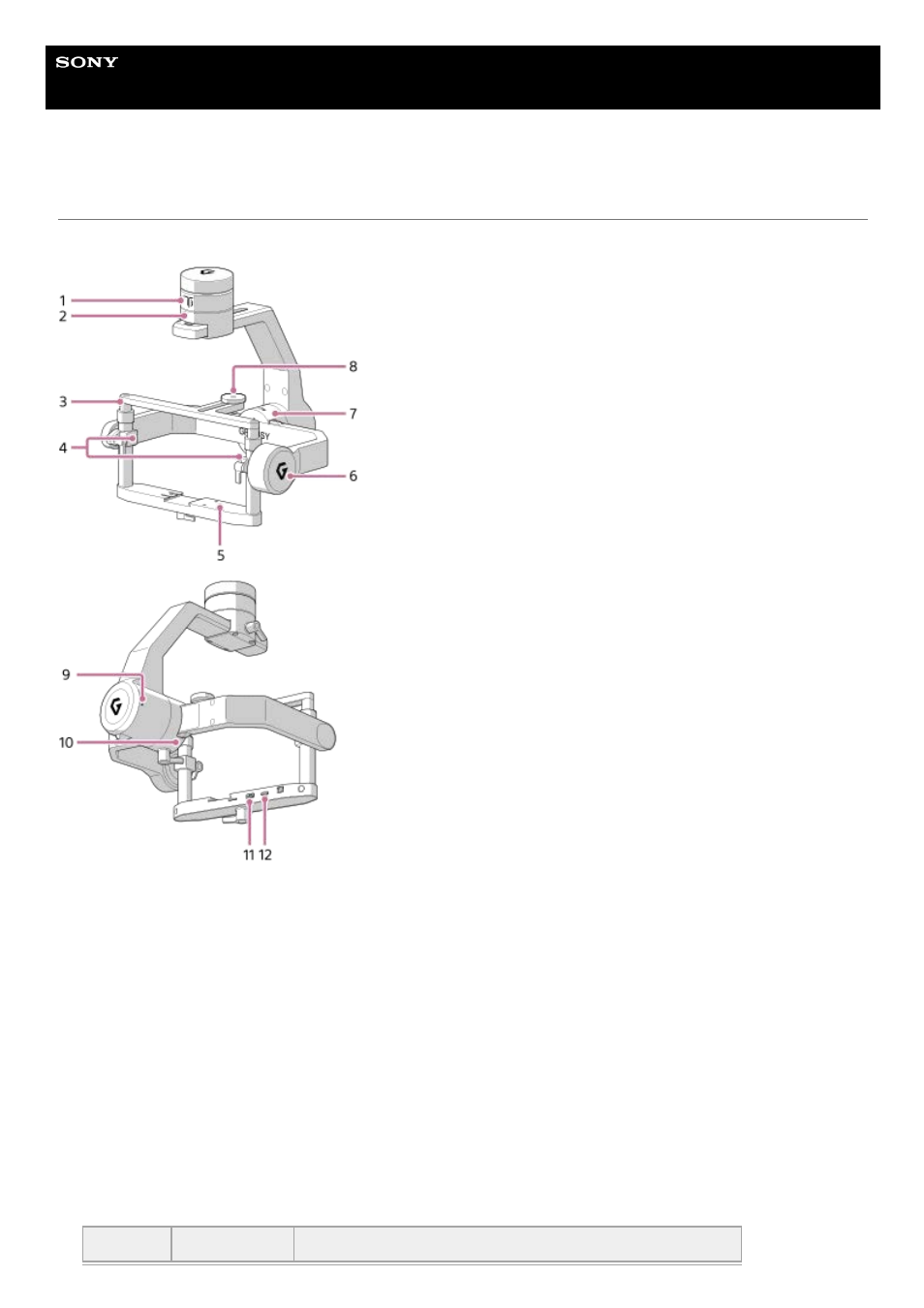

Parts and controls (Gimbal (sold separately))
The locations of the parts and controls of the gimbal (sold separately) are shown below.
Pan motor
1.
Pan adjustment
2.
Tilt top bar
3.
Tilt vertical adjustment
4.
Tilt front-back adjustment
5.
Tilt motor
6.
Roll motor
7.
Top camera screw
8.
Status LED
9.
LED color
LED indication Status of the gimbal
