Status List - This is a current list of all system faults, pages, alarms, input activation events, output
activation events and station statuses. The location and current status are displayed. The location is listed
by system, card slot, zone, station and I/O as shown in the example below:

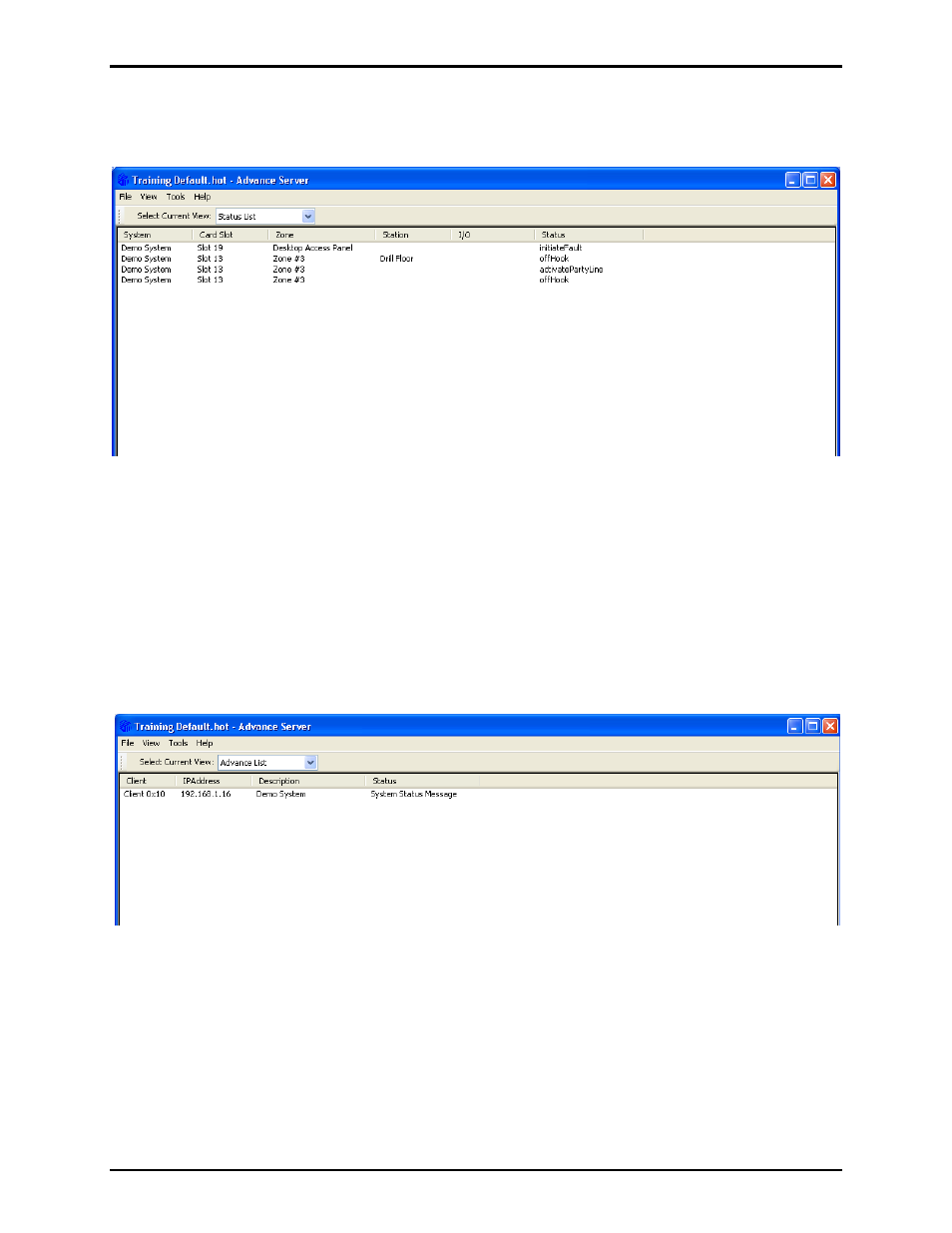

Figure 18. Status List
• System is the system description from which status change was initiated.
• Card Slot is card rack slot number associated with the status change.
• Zone is the zone description associated with the status change.
• Station is the station associated with the status change.
• I/O is the station input or output associated with the status change.
ADVANCE List displays the ADVANCE systems that were configured in the .hot file and loaded into
the server.
Figure 19. ADVANCE List
Client is the unique hexadecimal number (10, 14, 18, 2C, etc.) assigned to each ADVANCE system.
IP Address is the IP address of the ADVANCE system’s MCU card.
Description is the system description entered during the configuration process.
Status displays the last status message received from the ADVANCE system’s MCU card.
