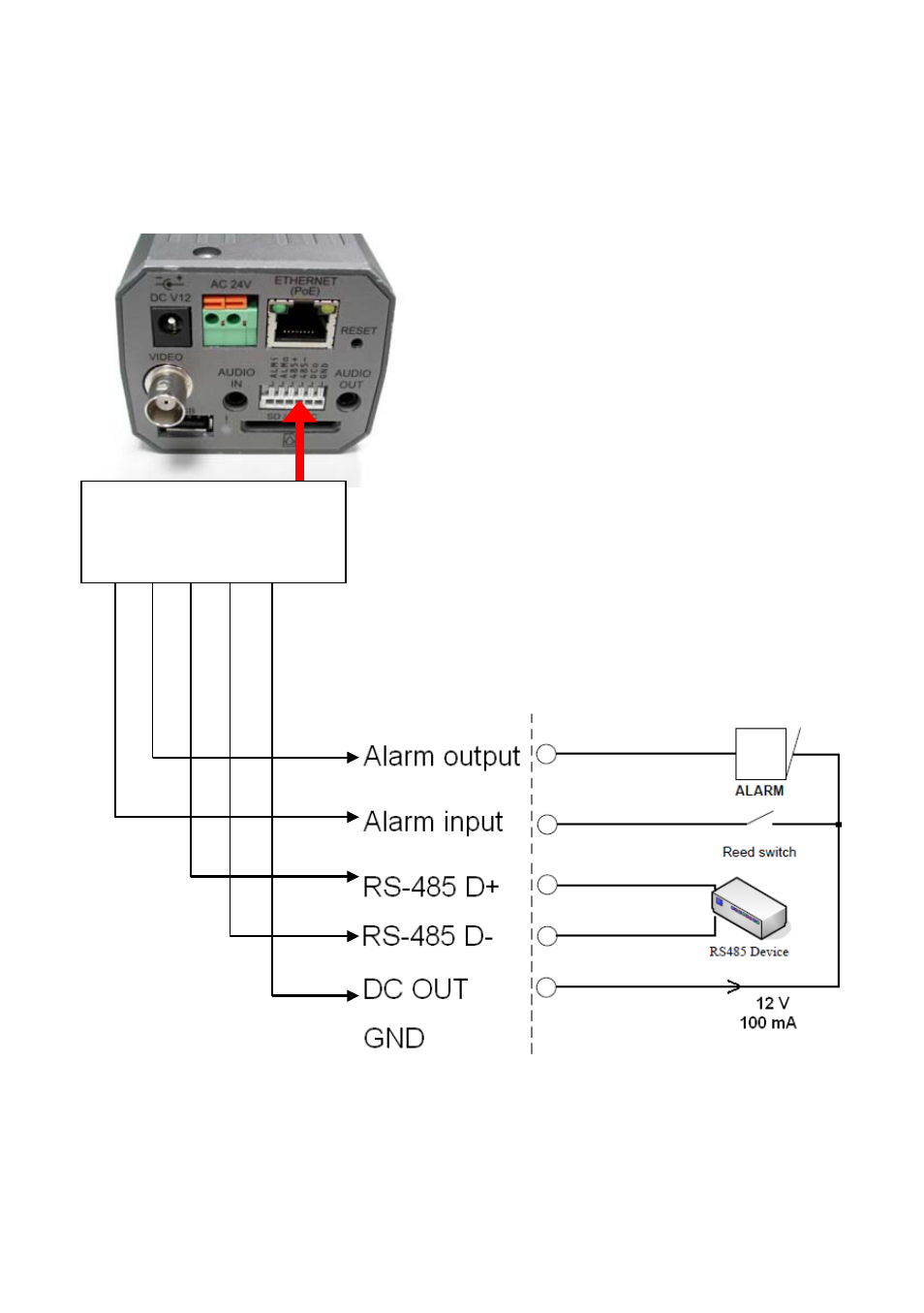

2.5 The Alarm wiring diagrams

The IP Box Camera (PoE)















ALM i

ALM o

485 +

485 -

DC o

GND

+12V

+12V
