20

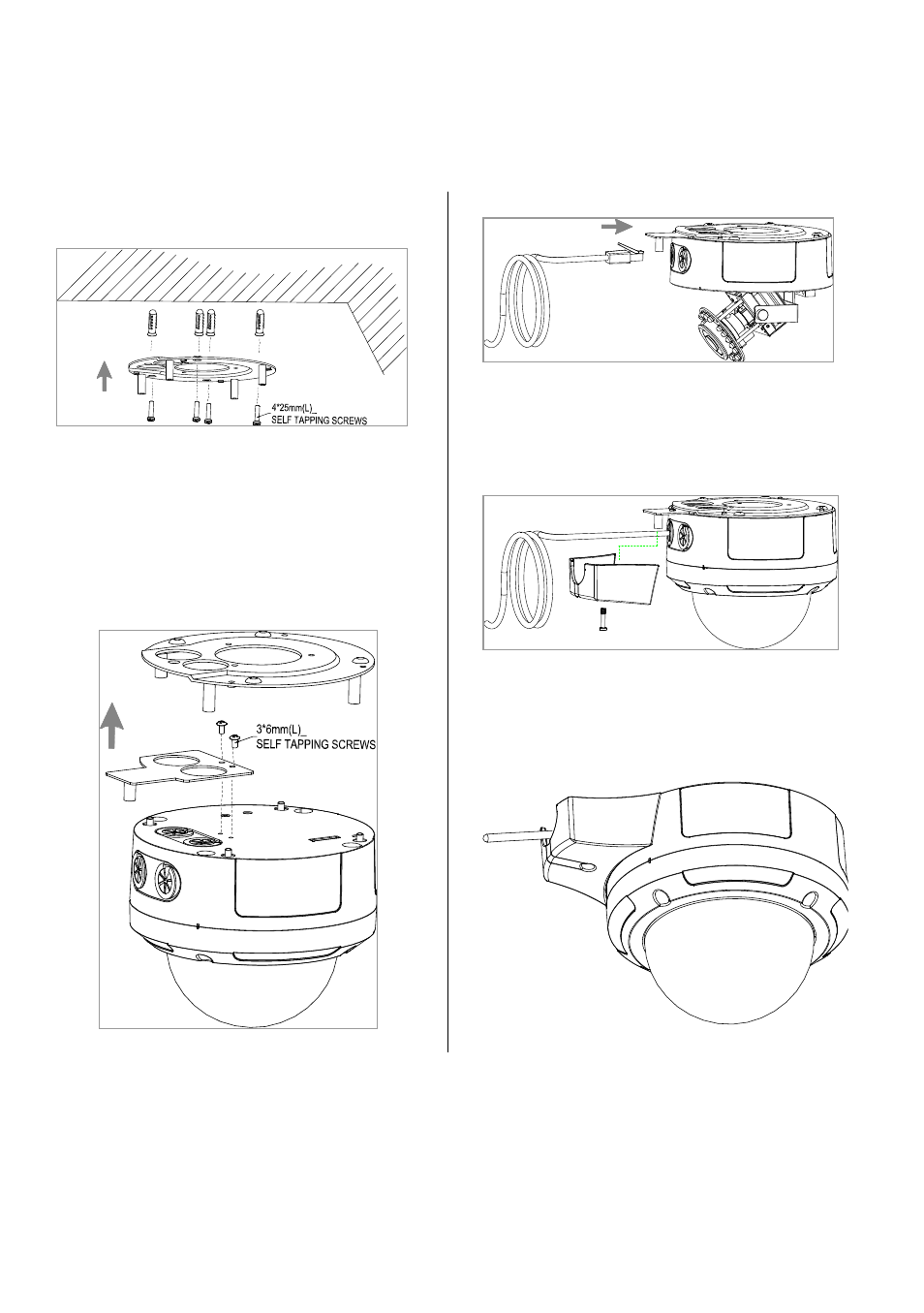

Step 1. Fix the iron base to the ceiling with
the nails and the nylon nails.
Step 2.
Detach the top iron base from the
dome camera. Put the flat metal
strip atop the dome, and screw it in
with the two screws. Attach the iron
base atop the dome and screw it in
place.
Step 3. Insert the cable in the flank port.
Step 4. Attach the flank panel cover on top
of the port. Screw the cover in over
the flat metal strip.
Step 5. The dome is now attached to the
ceiling.
3.2 The Installation of the Fixed IP Indoor Mini-Dome (PoE)
Attaching the dome via the flank.
NOTE: The dome camera is available from us. The other component parts are also available, but optional for the buyer.
