System Configuration and Startup

Profile LVS Event Management System Instruction Manual

3-25

Starting Operation

Once you have completed assigning resources and setting the various parameters
in the Configuration Window, press the OK button. This initializes the Profile
system and enables the Start button on the Main menu.

Press the Start button.

You will be prompted to delete or save any previous scenes and/or highlights.
Click on the Yes button if they are to be deleted, otherwise click on the No
button. Note that if any previous scenes and/or highlights are not being deleted,
subsequent operations will have recording time restrictions. See Previous Scenes
and Internal Timecode
that follows.

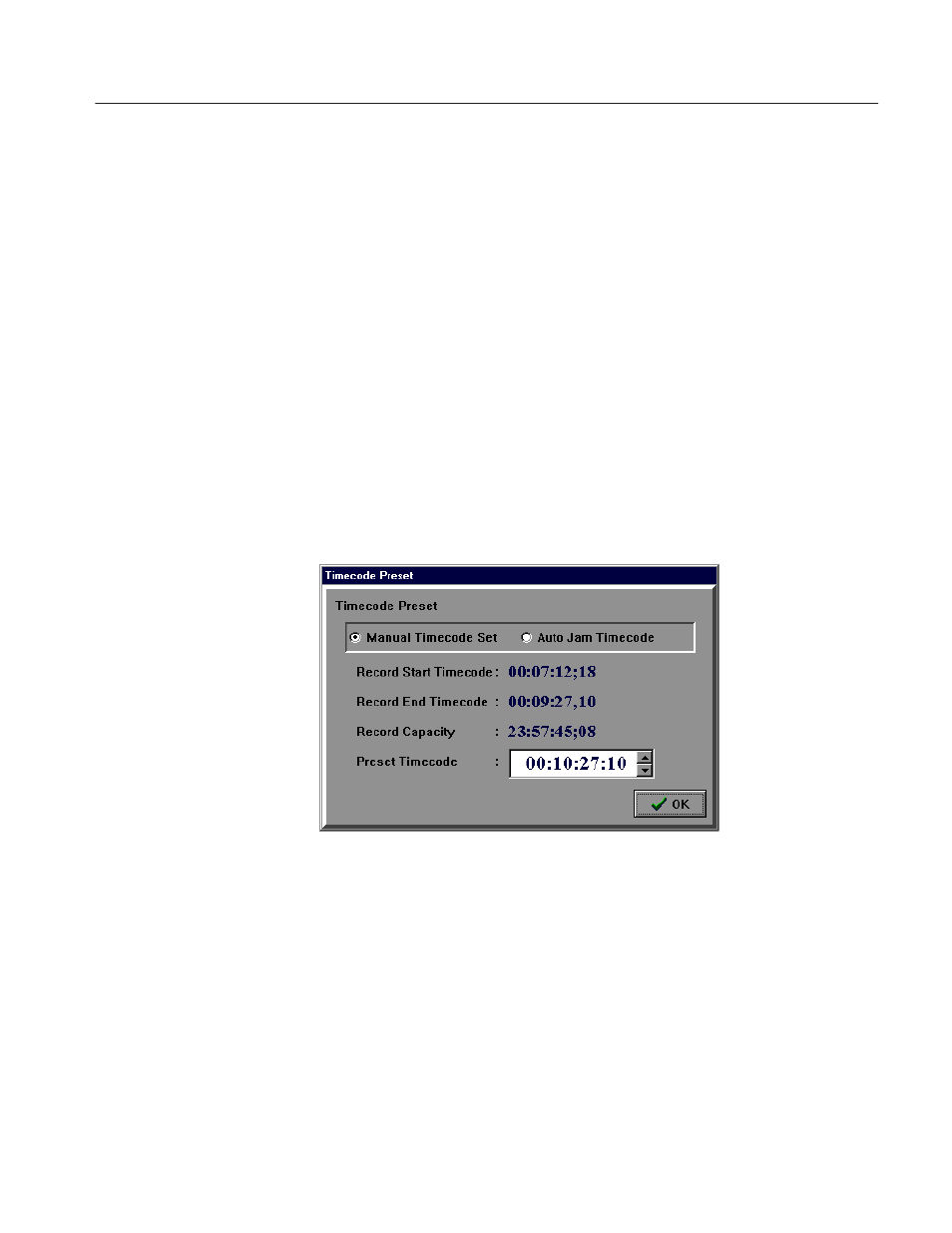

The Timecode Preset Window (see Figure 3–13) opens, allowing you to specify
timecode management for this session. The next paragraphs describe how to set
the parameters in this dialog box, depending on what you chose to do with
previous scenes and highlights.

Figure 3-13: Timecode Preset Window

Previous Scenes and

Internal Timecode
