Audio Monitor Window

Profile LVS Event Management System Instruction Manual

4-87

Audio Monitor Window

The audio level of each channel can be monitored through the Audio Monitor.
The Audio Monitor window is opened by clicking on the Audio Monitor button
in the Launcher.

Also, the record level and play level can be adjusted. There are four audio
monitors corresponding to the four audio channels, whose levels can be adjusted
independently or adjusted together.

Audio Monitor Button

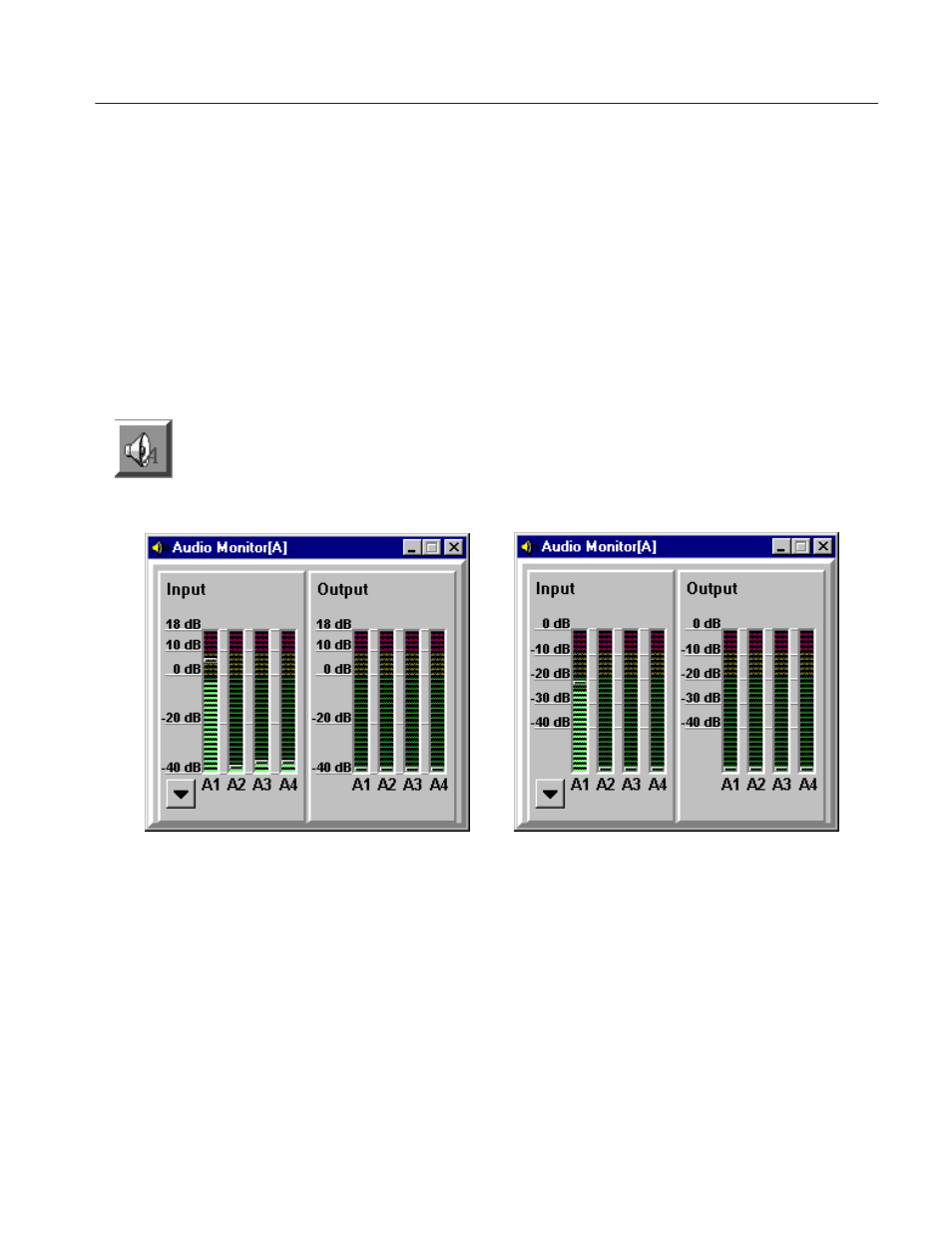

Figure 4-47: Audio Monitor Window (Analog)

: Left

Audio Monitor Window (Digital)

: Right

Play and Record Level Displays

Play and record levels are displayed vertically with green bars. You can set the
display of the audio monitor to be either Analog and Digital. Refer to Audio
Option
on page 3–17 for more information.

Either the play level or the record level is displayed for the 1–channel resource.

Both play and record levels are displayed for the 2–channel resource.
