Scene Window
Profile LVS Event Management System Instruction Manual
4-21
Scene Window
The Scene window is where incoming material, marked by a Live Controller or
the Record Controller window, is logged. In this window, you can view
information about each scene.
There may be four scene windows, A, B, C and D, depending on the system
configuration. These letters correspond to the resource groups in the Configura-
tion window.
To open a Scene Window, click the Scene button corresponding to the desired
resource in the Launcher. You can also open the desired Scene Window by
choosing it from the Windows menu in the Main window. As new scenes are
created, they are added to the window.

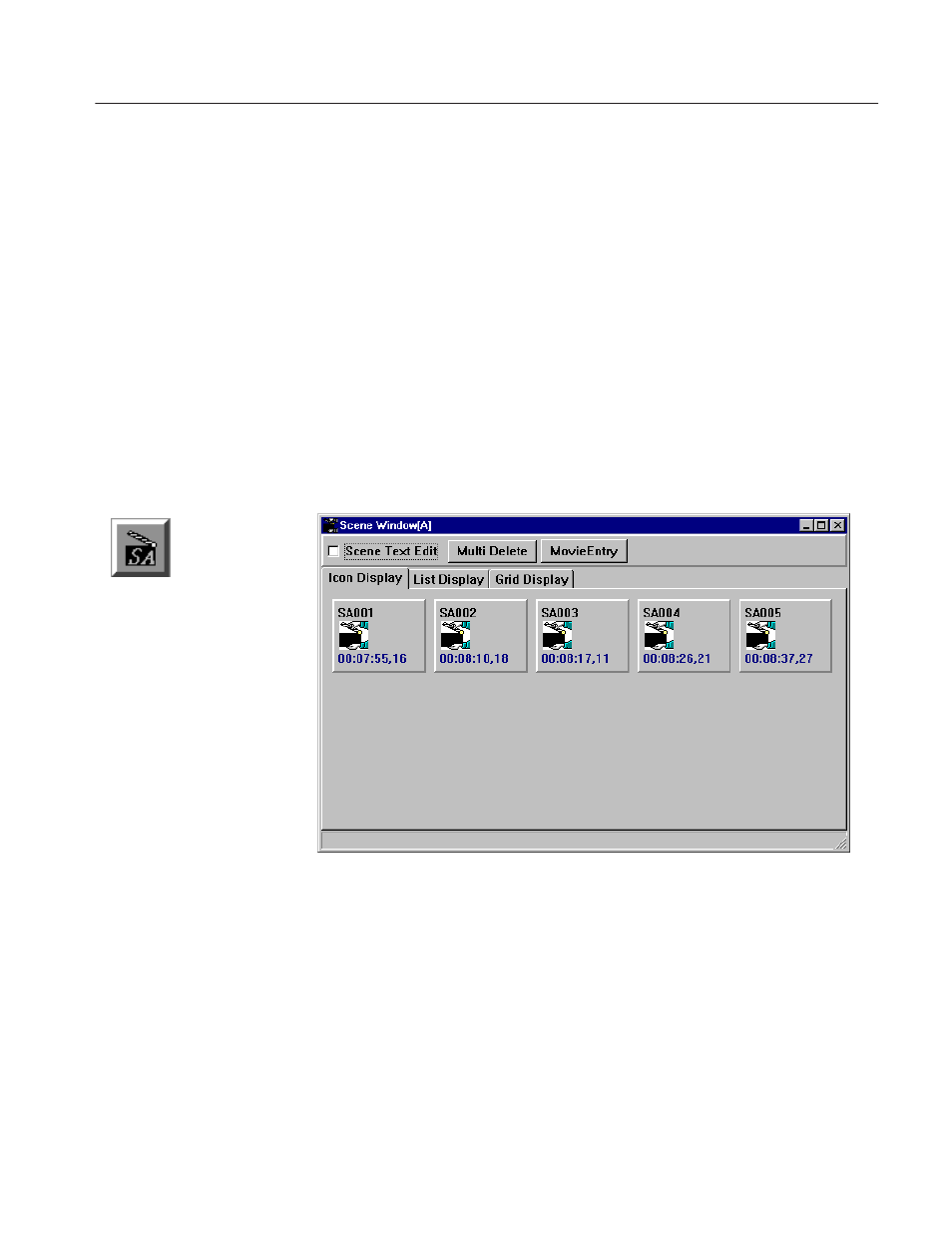

Scene Button
Figure 4-13: Icon Display Tab  Scene Window
Creating Scenes
Scenes are created using the Live Controller or the LVS Controller window, and
appear as icons in the Scene Window. A scene icon currently being recorded is
marked with REC in red and displayed in green.
Refer to REC on page 6–4 and Controller Window on page 4–15 for more
information on creating scenes.
