System Configuration Examples
The Profile LVS Event Management System software runs on the Profile PDR in
the Windows NT environment. Set up is accomplished through the GUI with a
mouse and keyboard, but most functions can be accessed by the Live Controller
via the RS-422 port.
The system can be configured in various ways for specific applications, and
configurations can be stored in the system for later recall. The following figures
are examples of configurations. Since each production has its own requirements,
the Profile LVS Event Management System is flexible and easy to reconfigure to
meet changing needs. In Figure 1–1, two operators can be using Live Controllers
for record and playback functions while a GUI is used to edit a highlights packet.
Input A
Output B
Output C
Output D
SVGA, Keyboard, Mouse RS-422
Output B: Timeline edit
Output C: Library Window
Input A: Recording and
Replay/Slow–motion play-
back Input B: Replay/Slow–
motion playback
RS-422
Input B
Operator A Operator A Operator B

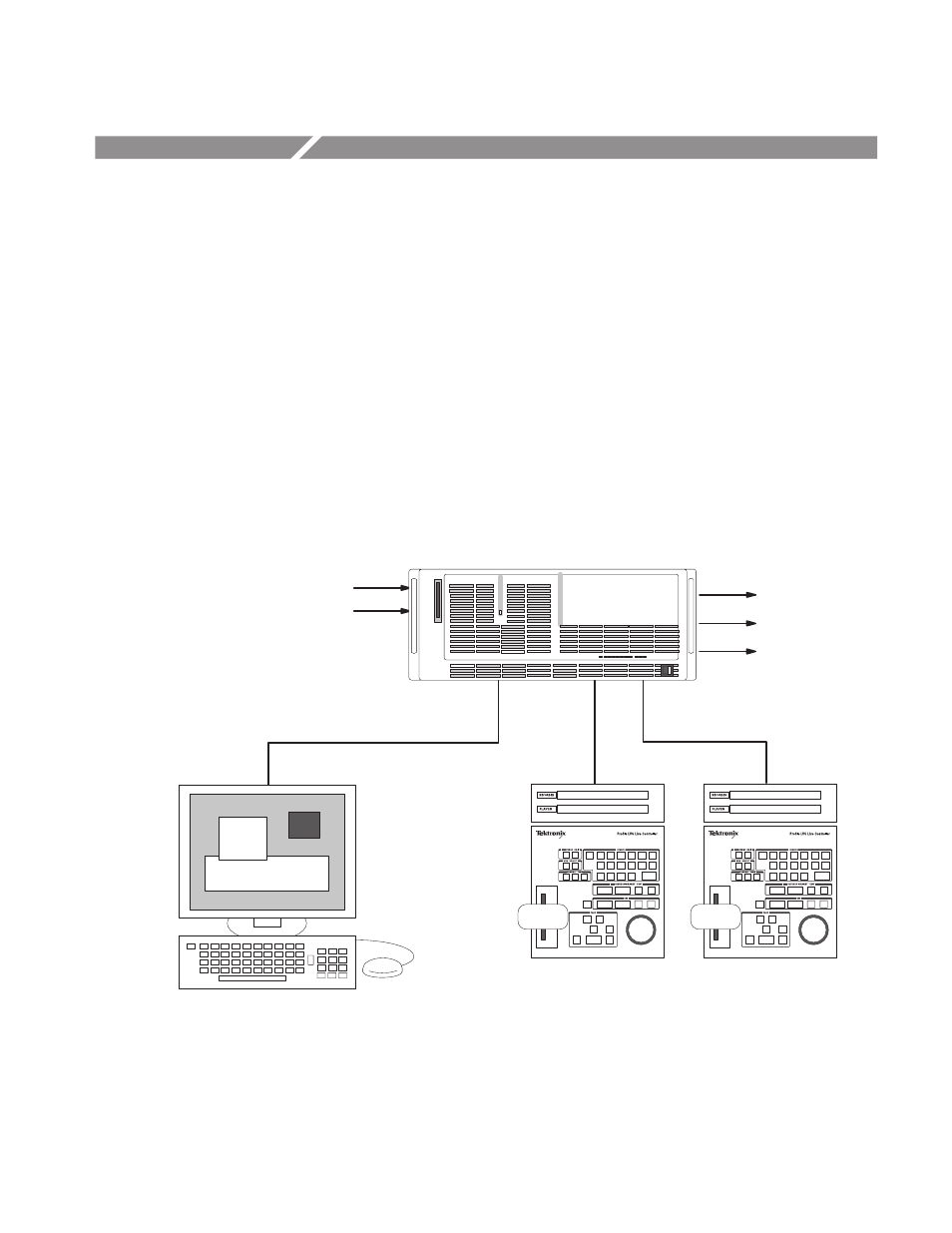

Figure 1-1: Configuration Example #1 (Two Operators)
