22
Configuration
NV9648 Panel Configuration Page(s)
Configuration Page for Standalone Mode
This is a sample NV9648 panel configuration page for standalone mode:

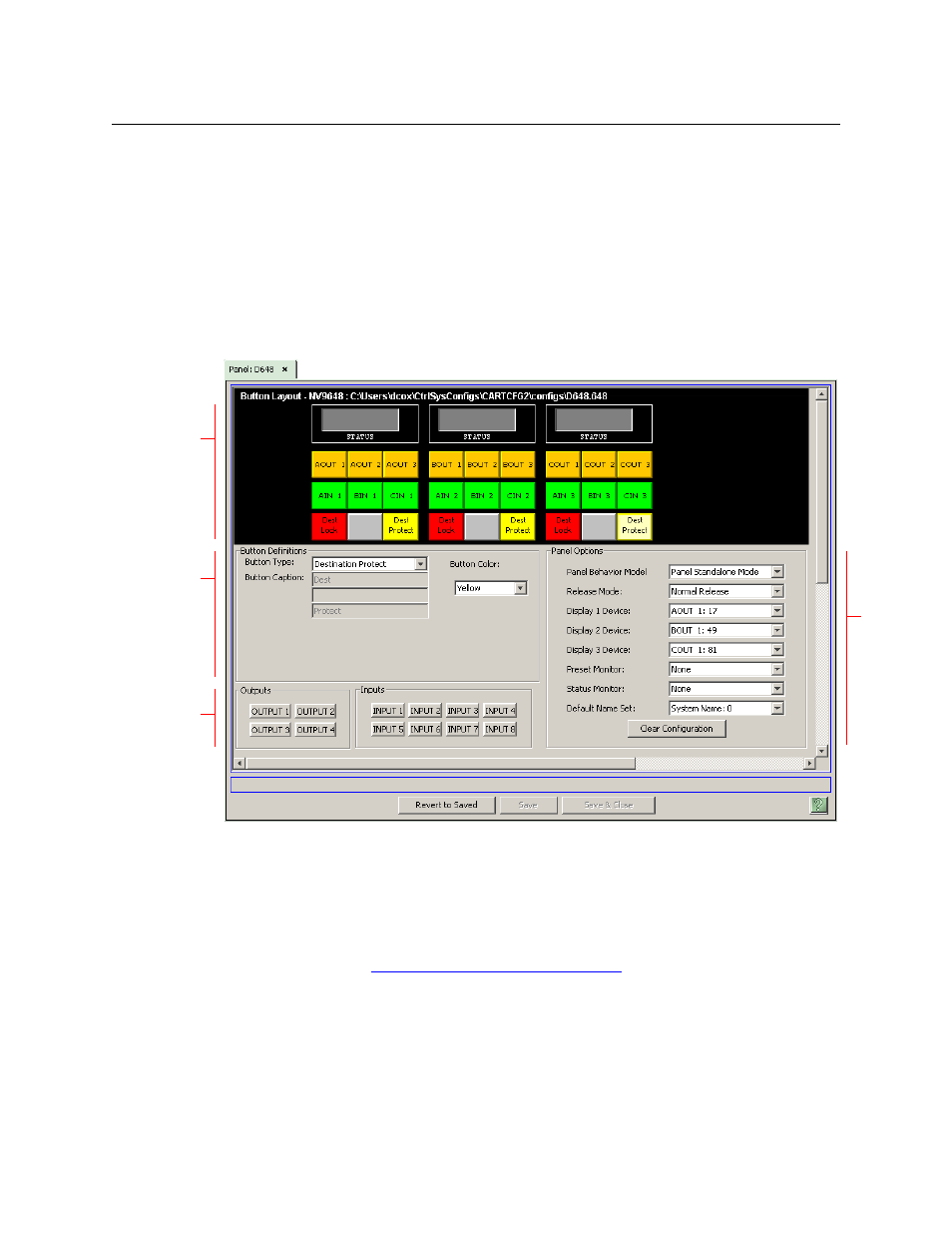

Fig. 4-2: NV9648 Configuration Page (in Standalone Mode)
There are 7 button function types for a panel in standalone mode:
Destination Destination Lock Destination Protect
Quick Source Salvo Source
Take
These are described in Button Functions for Standalone Mode on page 34.
Characteristics of Standalone Mode
The panel in standalone mode functions much the same way it does in client mode, but (1) does
not require the presence of an NV9649 and (2) provides 2 additional button functions.
As under client mode, the panel has 3 sections that are independent control units. Each unit
corresponds to a destination that is selectable.
Master Panel ‹panel ID› The NV9648 in client mode must be associated with the NV9649
server identified by ‹panel ID›.
Selecting a panel ID in this field presupposes that you have previ-
ously defined an NV9649 configuration (even if it is incomplete at
the time you are configuring the NV9648).
Do not let this field remain blank.
Button
Definition
Section
GPIO
Definitions
Panel
Options
Panel
