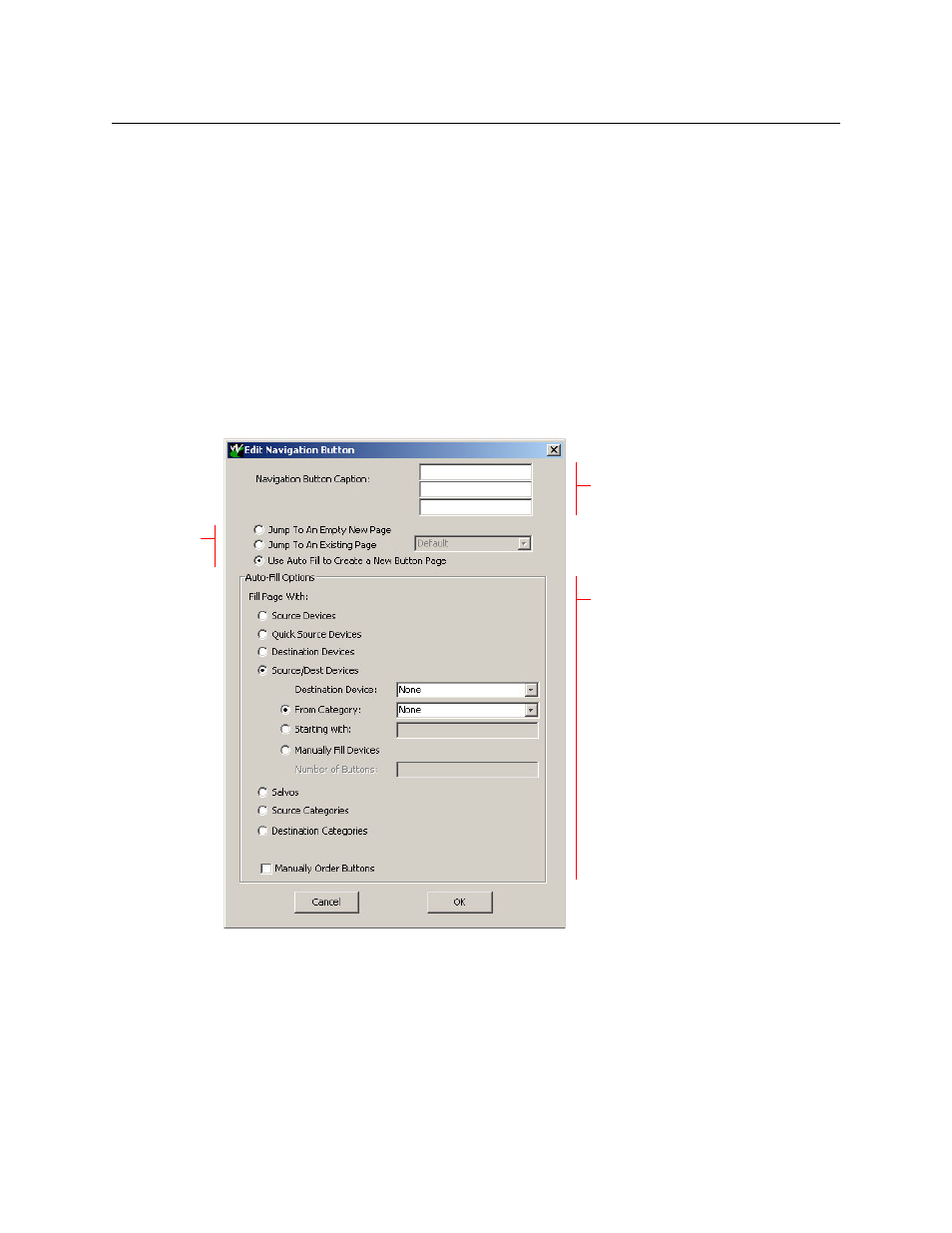

‘Edit Navigation Button’ Dialog
During configuration, when you choose ‘Navigate’ for a selected button, NV9000-SE Utilities
displays an ‘Edit Navigate Button’ dialog in which you specify the navigation button’s details:
At the top, this dialog presents 3 lines on which you can enter text for the button caption. In this
dialog, The 3 lines you enter here are concatenated to form the name of the page in the button
page table and might be the button caption, depending on context.
 The button caption is independent of the page name. You can change either without
affecting the other.
The dialog has 3 navigation choices:
• Jump to an empty new page.
X-Y Display This button displays the current source and current destination. It is usable in
both X/Y mode and MD mode.
XY/MD
Mode Switches the panel between X-Y mode and multi-destination mode (when the
panel is operating under the LCD XY/MD behavioral model).
The configuration page lets you specify a color for this button, but the color you
specify is ignored. The button is always green for XY mode and amber for multi-
destination mode.
Type Description
Automatic Fill Options
Button text
Navigation
Choices
