Technical Details
Drawings

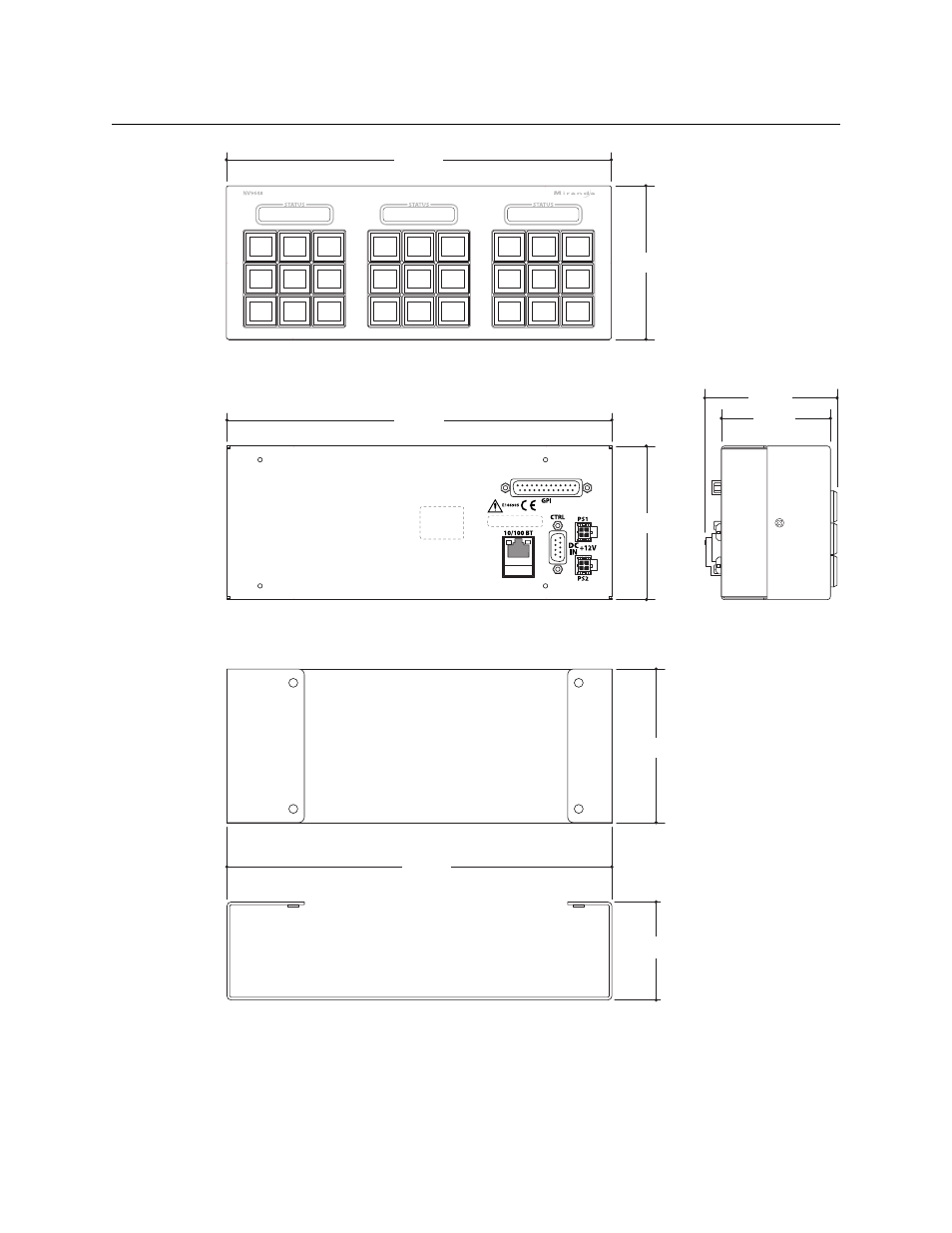

Fig. 7-2: Front View of the NV9648
Fig. 7-3: Rear and Side View of the NV9648
This is the NV9648’s rack mounting filler plate:
Fig. 7-4: NV9648 Rack Mounting Filler Plate
8.7 [221.0]
3.47
[88.1]
8.7 [221.0]
3.47
[88.1]
2.99 [76.0]
2.46 [62.6]
8.7 [221.0]
3.47
[88.1]
2.213
[56.2]
