Operation
Menu Mode
If the ‘Panel ID’ button is high-tally, you may change the panel ID. Normally, only your system
administrator would do that. To change the panel ID, press the panel ID button. A panel ID entry
menu appears containing a keypad:
Press the keys of the keypad to enter a number. The number you enter is displayed on the panel
ID button.
Press Cancel to leave the submenu without changing the panel ID.
Press Save to accept your change to the panel ID and leave the submenu.
Button Illumination

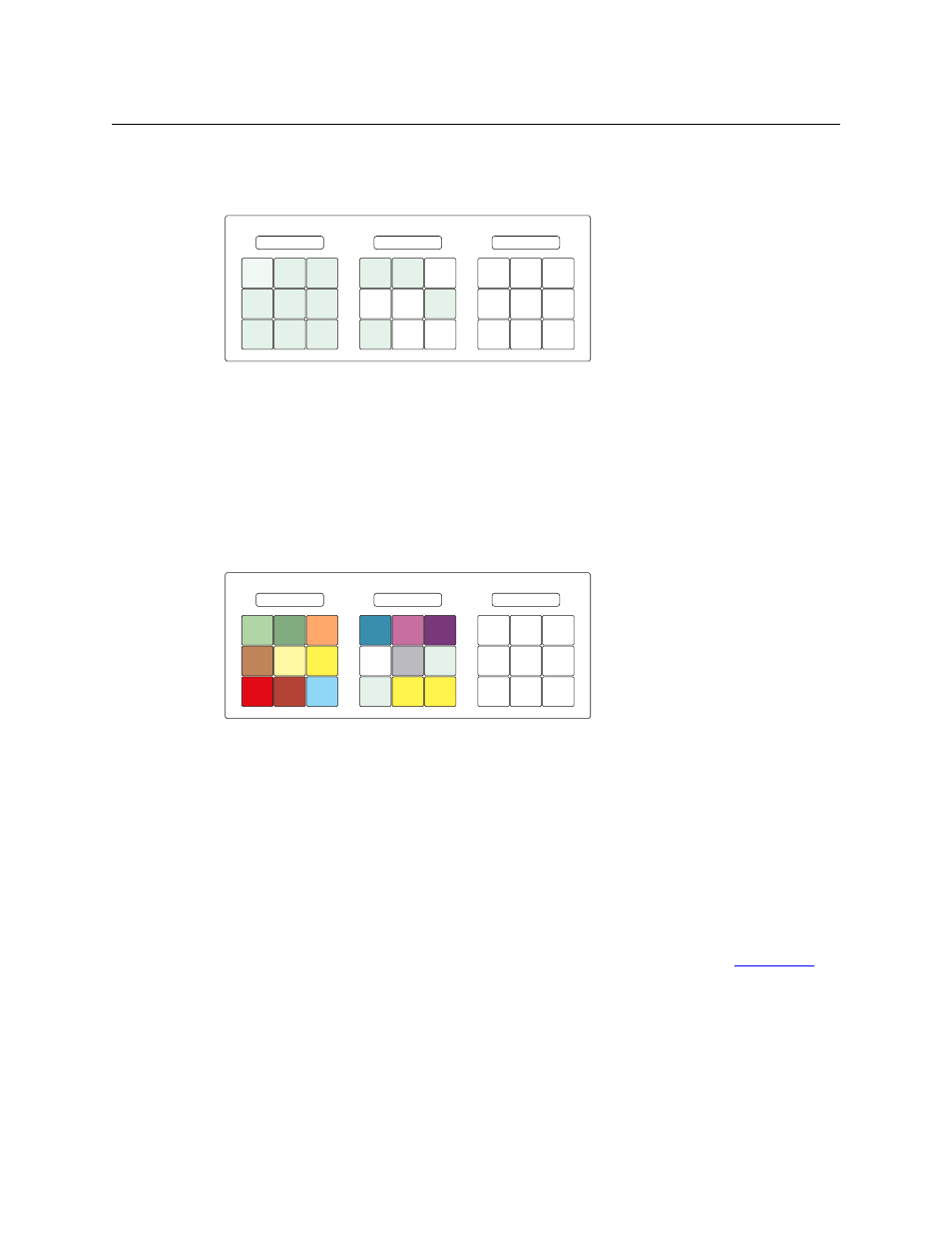

Press the ‘LCD Control’ button to view and change LCD brightness. When you do, the current
LCD button state appears on the 14 top left buttons:
There are 14 buttons for the 7 button colors. They occur in pairs. The pair shows the high tally
and low tally values for the particular color.
You can change high-tally from high to medium brightness and change low tally to medium or
low brightness, as long as high tally is brighter than low tally. (They cannot both be medium
brightness.)
To change a color’s brightness, select the button for the color you want to change. Press either
the ‘Make Color Brighter’ button or the ‘Make Color Darker’ button, whichever is available.
If you make a change, press ‘Save’ to commit the change or press ‘Cancel’ to discard the change.
Pressing either button returns you to the panel menu.
The actual colors cannot be represented accurately in print or in a PDF file displayed on your
screen. There is a small amount of variation in color from button to button. See
LCD Buttons on
page 93 for a better color chart.
