PCW Control



The PCW Control Schedule Viewer

The Schedule Viewer (Figure 2.2) is the primary panel where the scheduled operation of each zone

is established. The Schedule Viewer is arranged in a 7-day calendar format that initially displays

the schedule for the number of zones specified in the New Site dialog box. Each zone has a specific

color and number assignment that corresponds to the Zone Buttons at the bottom of the window,

and to the field output terminals of the Controller. When the default schedule is selected in the

dialog box, each zone will be scheduled to run for 10 minutes, every day, beginning at 6:00 a.m.

Calendar Control Panel

The Schedule Viewer is formatted with the days of the week arranged in columns starting on

Sunday, and Start Times arranged in rows, starting at 12:00 a.m. (Midnight). By default, start time is

displayed at a 30-minute increment resolution. The Zoom In and Zoom Out buttons enable the start

time resolution to be zoomed in to 5-minute increments, or zoomed out to a 1-hour increments.


Calendar View

By default, the 7-day schedule will coincide with the current

date, verified by calendar dates displayed below the Today

button. The right and left arrow buttons are provided to

shift the schedule view forward and backward through the

calendar in 1-week increments. Selecting the Today button

resets the Schedule Viewer back to the current calendar week.

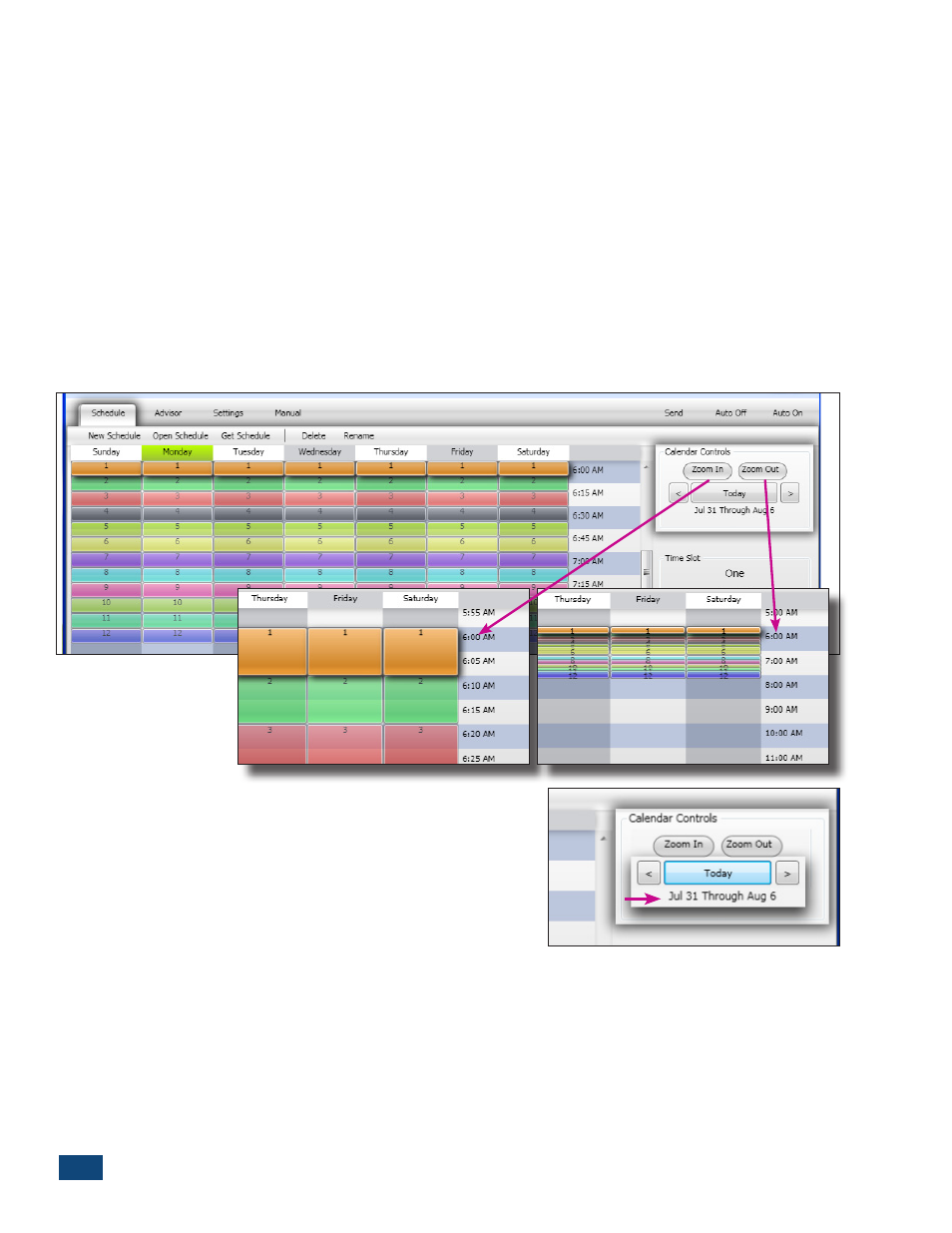

Figure 2.2
