1-2

Introduction

Version 2.2

Copyright © 2000–2003 by LSI Logic Corporation. All rights reserved.

technology detects the SCSI bus configuration and automatically tests
and adjusts the SCSI transfer rate to optimize interoperability. Three levels
of domain validation are provided, assuring robust system operation.

The LSI53C1010R has a local memory bus. This allows local storage of
the device’s BIOS ROM in flash memory or standard EPROMs. The
LSI53C1010R supports programming of local flash memory for BIOS
updates. The chip is packaged in a 456 Ball Grid Array (BGA).

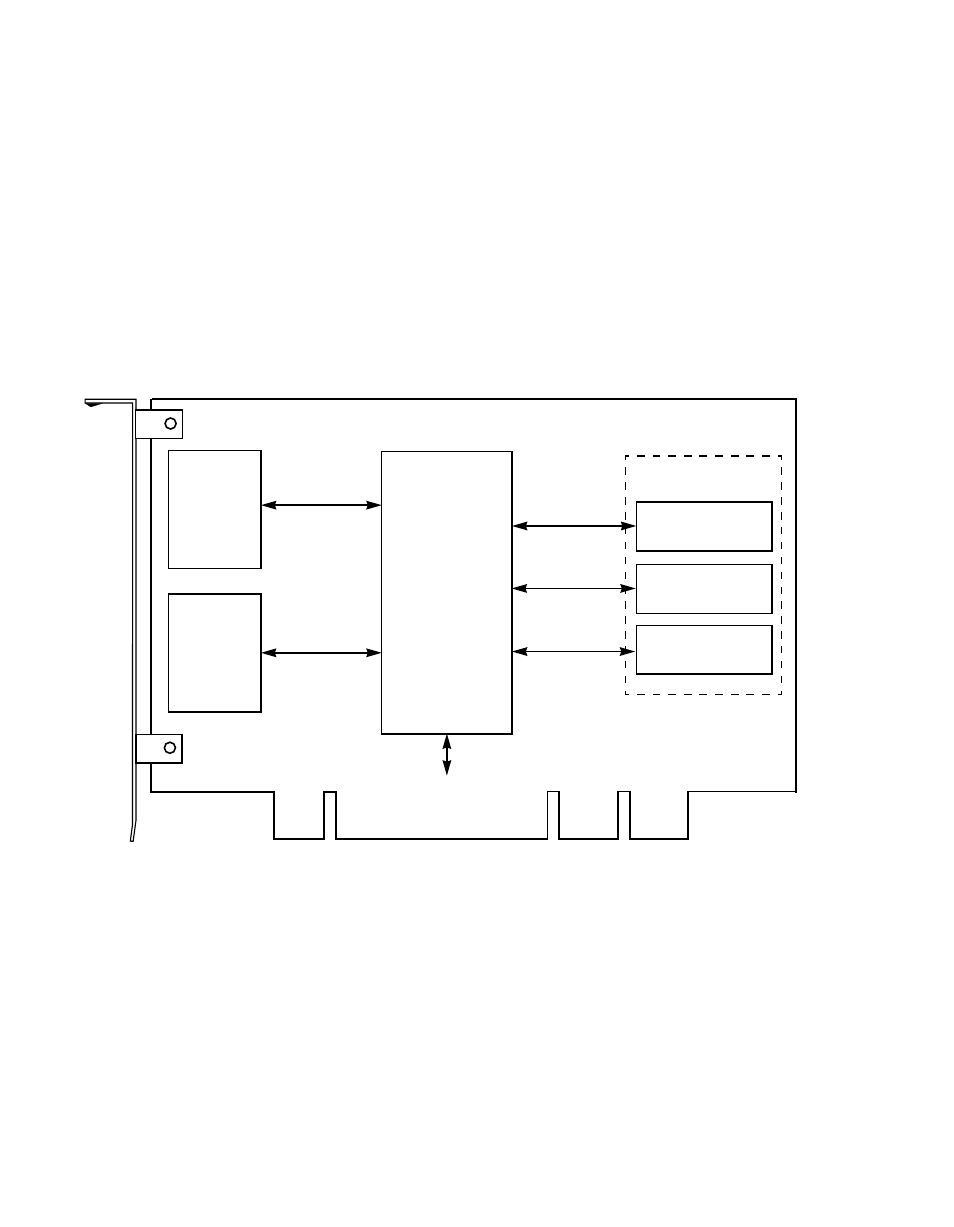

Figure 1.1

shows a typical LSI53C1010R board application connected to external
ROM or flash memory.

Figure 1.1

Typical LSI53C1010R Board Application

LVDlink™ technology is the LSI Logic implementation of Low Voltage
Differential (LVD). LVDlink transceivers allow the LSI53C1010R to
perform either Single-Ended (SE) or LVD transfers. The LSI53C1010R
integrates two high-performance SCSI cores, a 64-bit/66 MHz PCI bus
master DMA core, and the SCSI SCRIPTS processor to meet the
flexibility requirements of Ultra160 SCSI standards. It implements
multithreaded I/O algorithms with minimum processor intervention,

Flash EEPROM

Serial EEPROM

Function A

Serial EEPROM

Function B

Memory Control

Block

LSI53C1010R
64-Bit/66 MHz

PCI to

Dual Channel

Function A

68 Pin

Wide SCSI
Connector

SCSI Data,

Parity, and

Control Signals

SCSI Data,

Parity, and

Control Signals

PCI Interface

PCI Address, Data, Parity

Memory

Address/Data

Bus

A_GPIO/[1:0]

B_GPIO/[1:0]

Ultra160 SCSI

Controller

and

Terminator

Function B

68 Pin

Wide SCSI
Connector

and

Terminator

and Control Signals
