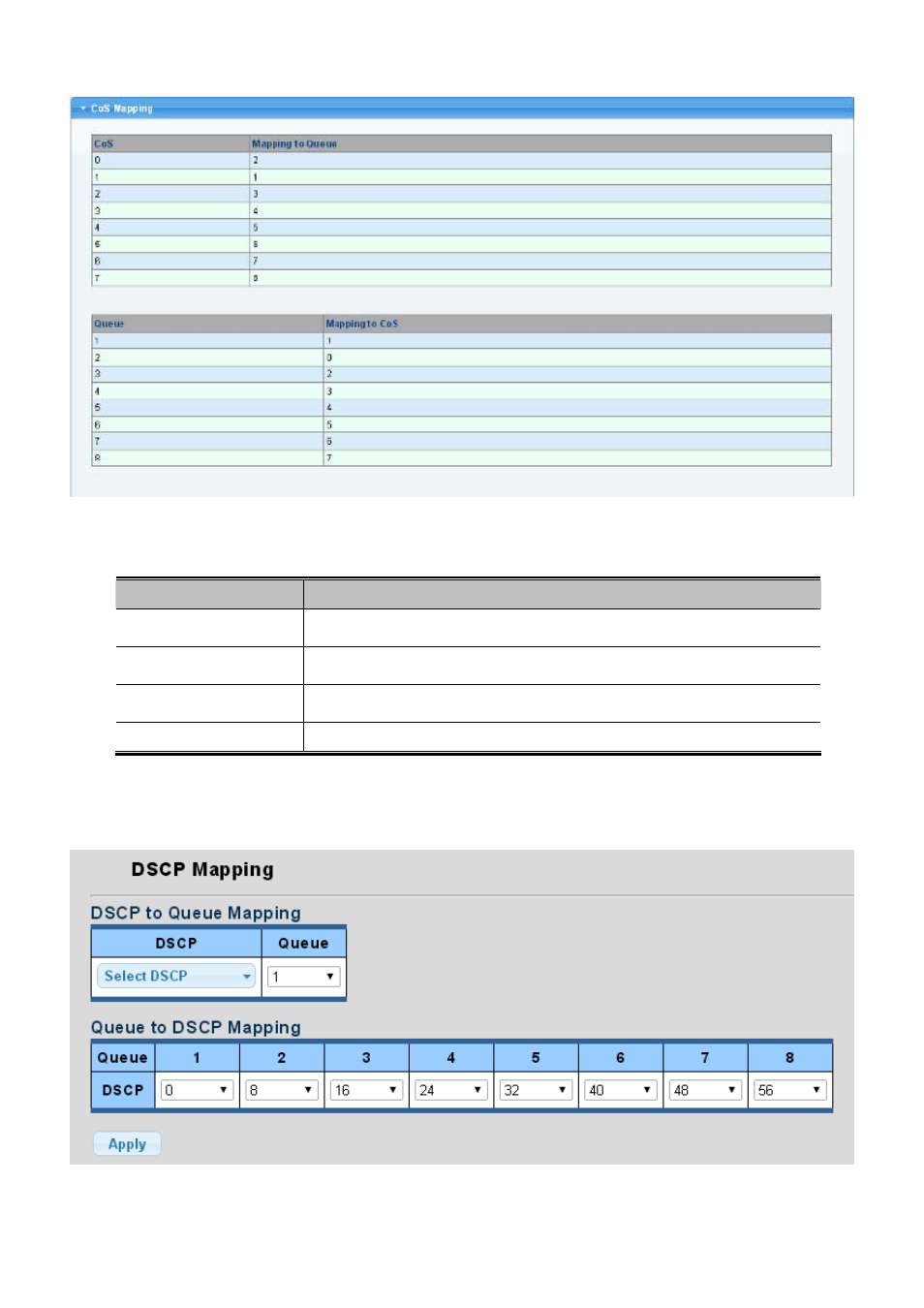

Figure 4-8-8:
CoS Mapping Page Screenshot
The page includes the following fields:
Object
Description
CoS
Display the current CoS value.
Mapping to Queue
Display the current mapping to queue.
Queue
Display the current queue value.
Display the current mapping to CoS.
Mapping to CoS
4.8.2.5 DSCP Mapping
The DSCP to Queue and Queue to DSCP Mapping screens in
Figure 4-8-9
&
Figure 4-8-10
appear.
Figure 4-8-9:
DSCP to Queue and Queue to DSCP Mapping Page Screenshot
