102
6E XY Cutter Offsets (Digital Die-Cut Stock Only)

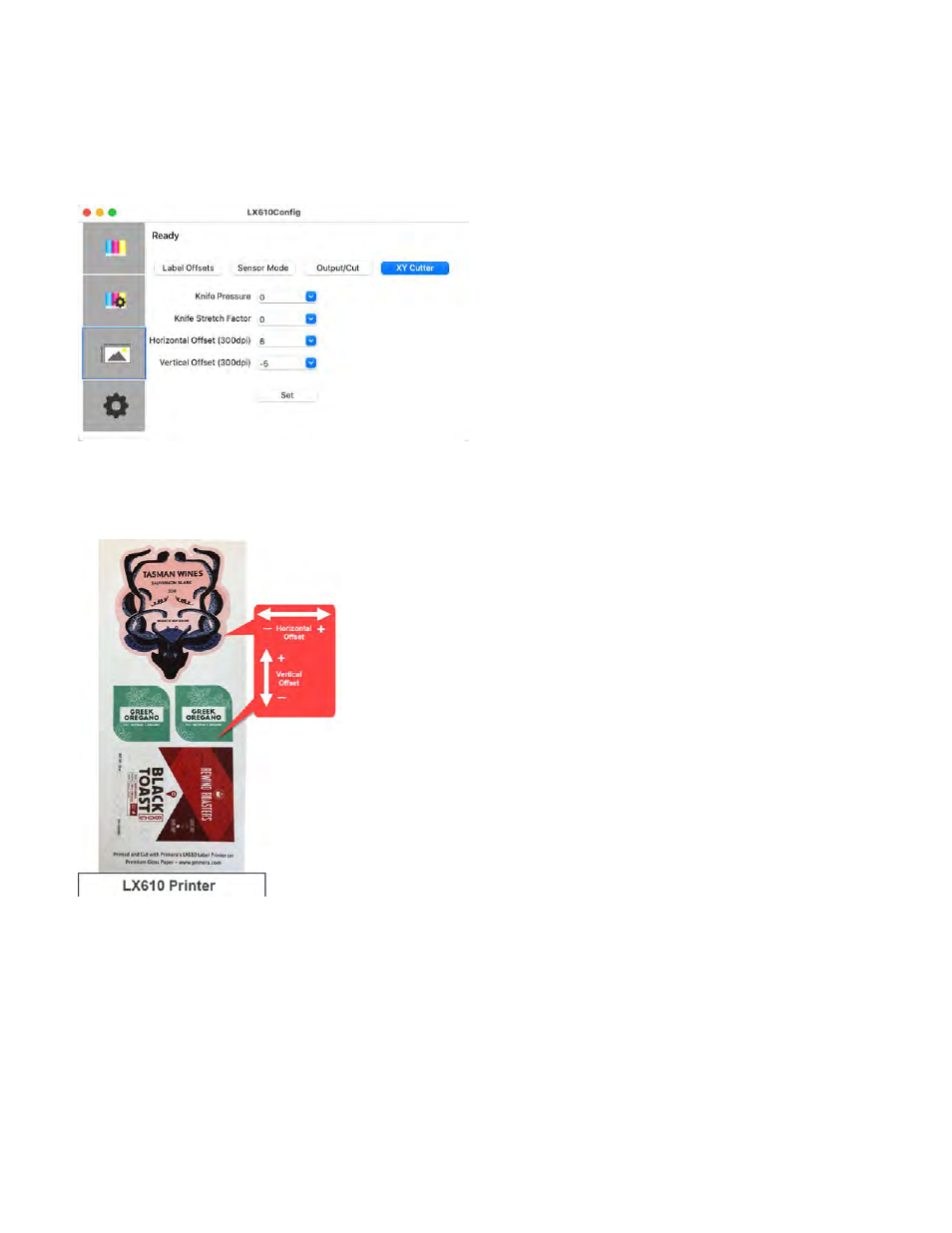

Cut Offsets, Knife Pressure and Stretch Factor settings can be found in Primera Print Hub on the XY
Cutter Tab.
Cut Offsets If your cut does not line up with your printed image, you can adjust it using the
Horizontal Offset and Vertical Offset settings. Press the Send Test Print to help you determine
which direction to move the offsets or refer to the image below.
Knife Pressure
affects how deep into the media the knife will cut. Ideally you want to cut deep
enough to cut through the label layer on the top but not so deep that you cut through the backing
paper (liner). When you cut through the backing paper your label will not peel cleaning off the
backing paper. You will also score the wear strip under the cutting knife which can cause the knife
tip to break. You will also need to replace the wear strip more often if you cut too deep.
By default, the cutter is calibrated to work with High Gloss Paper Media. However, other media
types will need more or less cut pressure to cut properly.
