Primera LX610 Color Label Printer with Plotter & Cutter - Manual (Page 63)

63
Outline
4E.3 Working with Layers in an Imported Vector File
Once you have imported the vector file you view the layers in the layers window.
The cut file must separated from the design at the top level. It cannot be buried
under other layers that will be printed. In this example the cut line layer is setup
in Illustrator as an Outline instead of a Fill. Either will work but Outline is
preferable.

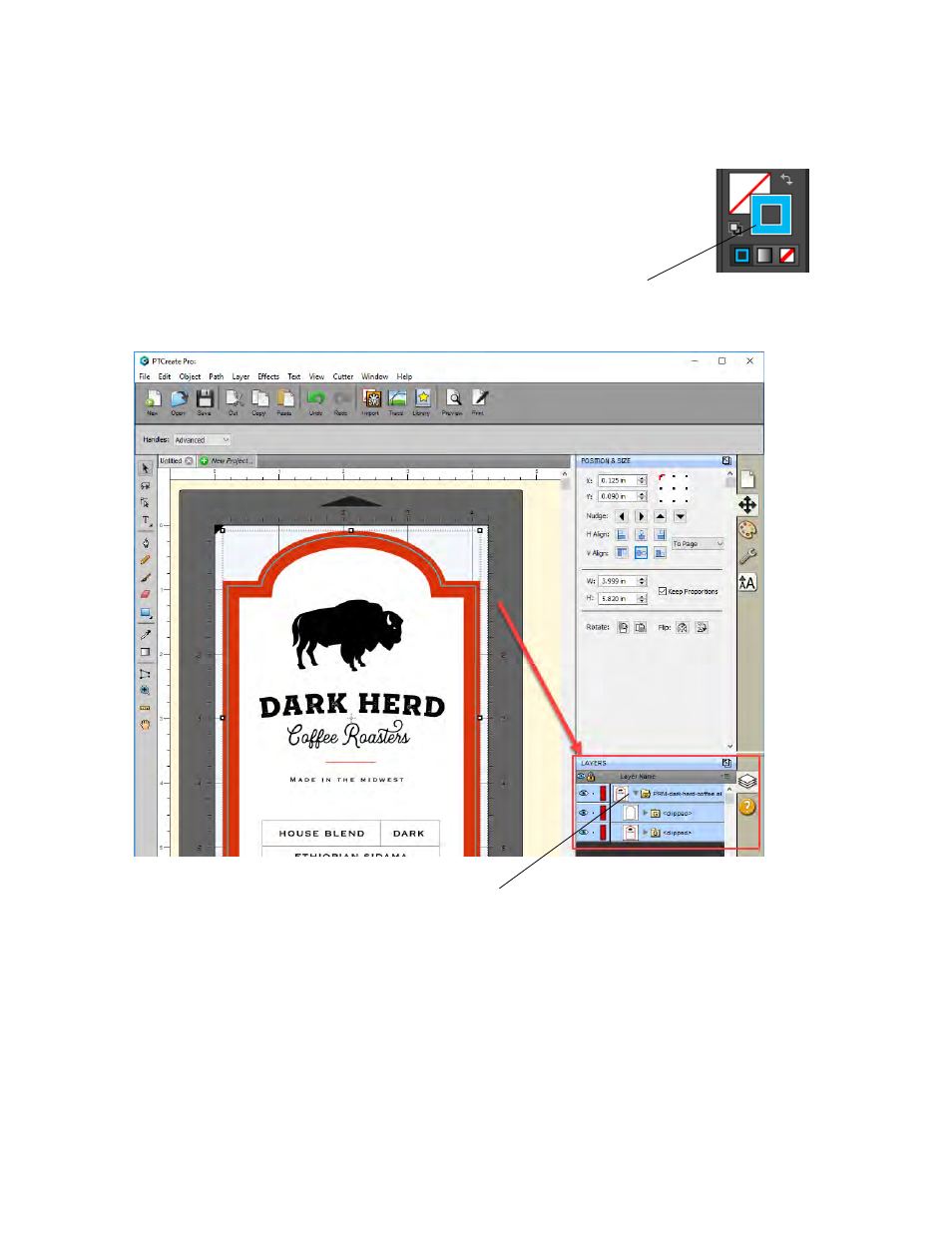

9. To view the sublayers and find the cut line click on the arrow to open up the group.
Click Arrow to open layer groups
Note: Before printing we recommend clicking the print
Preview Button described in section 4H
