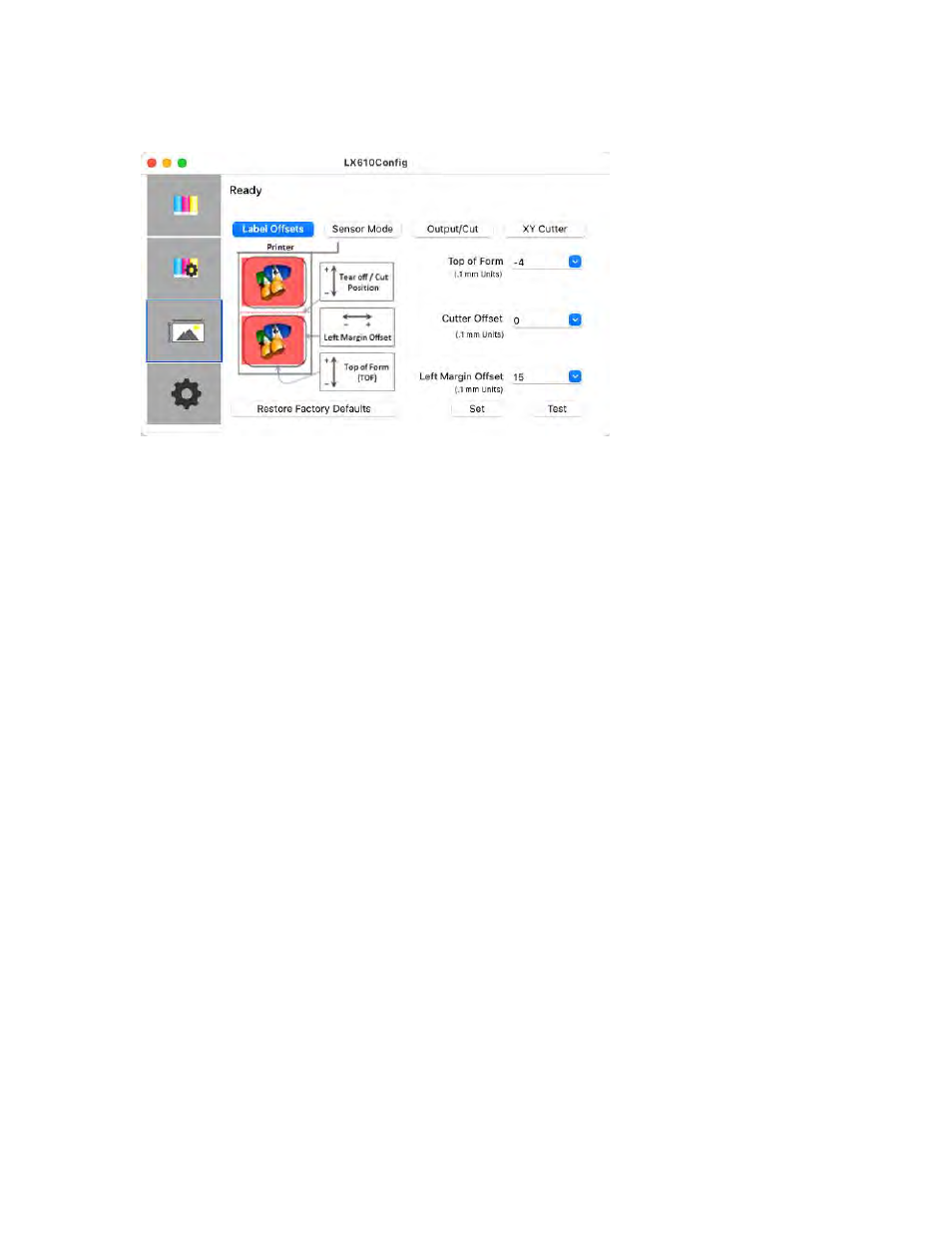

Adjust print alignment using the LX610 Config Utility. Click on the Alignment Tab (Third
Tab).
Three items can be adjusted here:
*
Tear off Position. This value adjusts the position of the last label printed after it has
been presented for tear off. This only applies if the output mode is set to “Present.” Add
to the current value to move the tear point closer to the printer. Subtract from the
current value to move the tear point away from the printer. After adjusting the value
click the Set Offsets button to send the value to the printer.
* Left Margin Offset. This value moves the printed label left or right. Add to the
current value to move the printed label to the right. Subtract from the current value to
move the printed label to the left. After adjusting the value, click the Set Offsets button
to send the value to the printer.
*
Top of Form (TOF). This value moves the print start position up or down on the label.
Add to the current value to move the printed label down or toward the printer. Subtract
from the current value to move the printed label up or away from the printer. After
adjusting the value click the Set Offsets button to send the value to the printer.
You may have to make several adjustments to one or more of these values. After each
adjustment you can click the Test Offsets button to print a small test pattern on the label.
This will help you find the proper alignment value.
Note: This section only
applies to Pre Die-Cut Stock.
For an explanation of stock
types, please see section 2A.
