Primera LX610 Color Label Printer with Plotter & Cutter User Manual
Page 17
17
Max
Min
Label width
5”
(127mm)
0.5" (13mm)
Liner/media width
5.125 (130.17mm)
2.125" (54mm)
Label height/length
12” (305mm)
0.5" (13mm)
Gap between labels
10" (253mm)
0.10" (2.5mm)
Width of through-hole
0.5" (12.65mm)
0.25" (6.325mm)

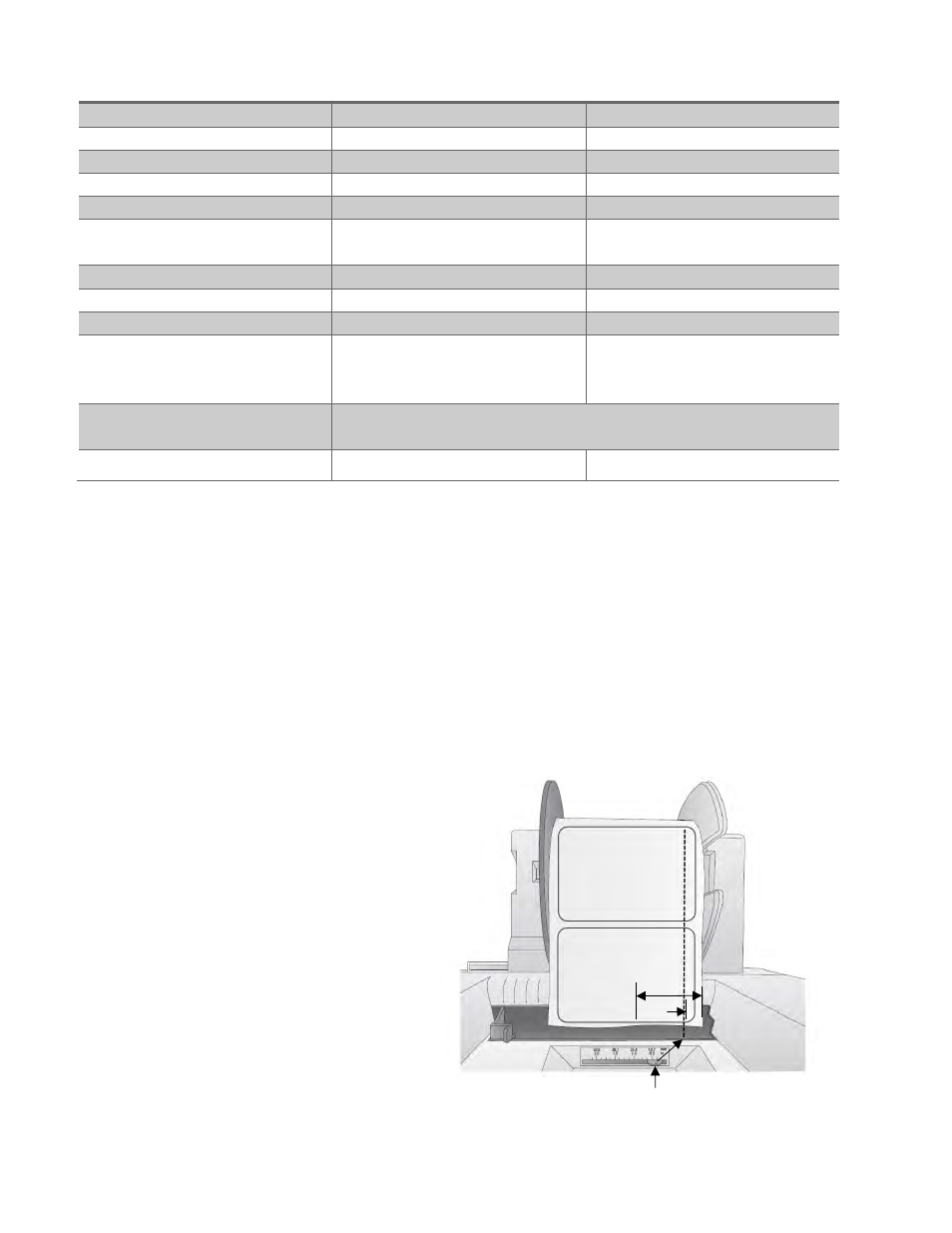

Gap Sensor Adjustment
Range (from right edge)
2.05" (52mm)
(see diagram below)
0.40" (10.16mm)
Reflective/Black Mark Width*
N/A
0.1" (2.54mm)
Max Outer Diameter (OD)
6.0"(152.4mm)
N/A
Inner Core Diameter (ID)
3.0" (76.2mm)
3.0" (76.2mm)
Recommended Total
Thickness
(Liner + Label)**
.0010” (10 mil)
Distance from edge of media
to edge of label
Printer assumes 2mm (1/16”) gap. However, this is adjustable
via the left margin offset.
* The Reflective/Black Mark should be opaque to infrared light. The mark should be between the
labels. The end of the mark should correspond with the beginning of the label.
** This is the recommended maximum. There are two factors that determine whether the printer
will accept any particular stock thickness.
1.
The ability for the printer to pull the paper through the print area.
2.
The ability for the sensor to read through the backing if the sensor is set to die-cut.
If you are printing in continuous or reflective label sensing mode number 2 does not apply. The fact
that the printer must read through the backing in die-cut mode will limit the thickness much more
than the printer's ability to pull the paper through the print area. However, if you adjust opacity
level of the liner enough to allow the label to be seen by the stock sensor, the thickness will only be
limited by the printer's ability to pull it
through the printer area. For these reasons
the weight or thickness of the liner is a
variable that cannot easily be defined.
Primera recommends and uses 40# liner
with all Pre Die-Cut label stock.
It is important to test all label stock with the
intended printer before ordering large
quantities!
Gap Sensor
Adjustment
2.05”
0.4”
Gap Sensor Position Indicator from right
edge of media. The position indicator
corresponds to the ruler NOT the installed
label stock.
