Power Cables

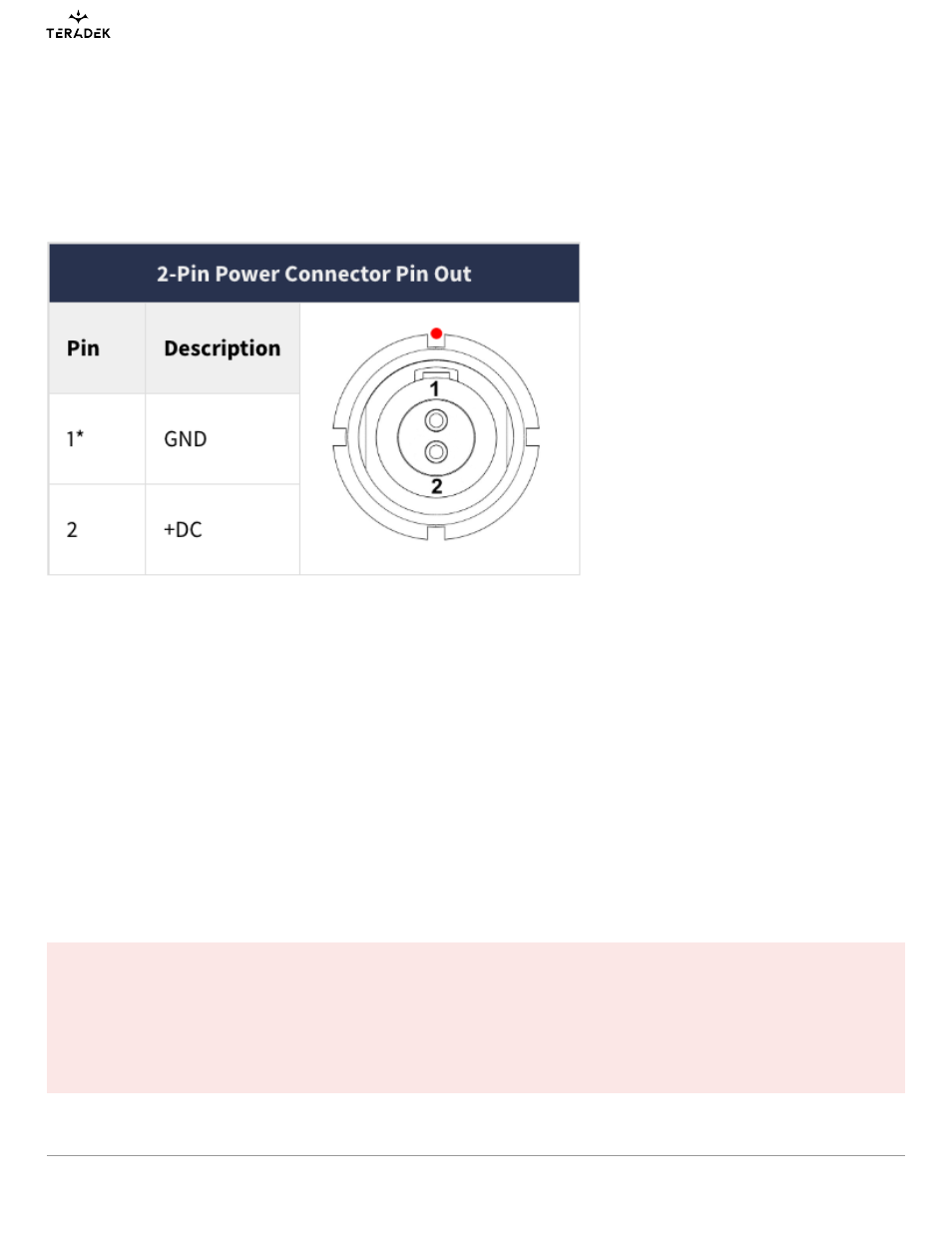

2-Pin Power Connector
Ranger devices use a locking 2-pin power connector similar to the 0B 302 series LEMO connector.
* Pin 1 is closest to the red dot on the connector.
Input Voltage: 7-28V DC
Max Power Consumption: 12W (TX) and 18W (RX)
Custom/3rd Party Cables
• Test the power cable polarity with ONLY the power cable connected to Ranger. Do not connect video
cables.
• Check the power cable for shorts and proper grounding.
12G-SDI Input/Output Cables (Ranger Mk II only)
Ranger Mk II units require the use of 12G-SDI cables to reliably transport 12G video signals and are
included as a standard item. Ensure that your cables are rated for compatibility with your camera's
output.
 CAUTION:
Using a reverse polarity or improperly − constructed power cable can damage the product and
is not covered under warranty. To prevent the inputs from being damaged, best practice is to
