Receiver Antennas

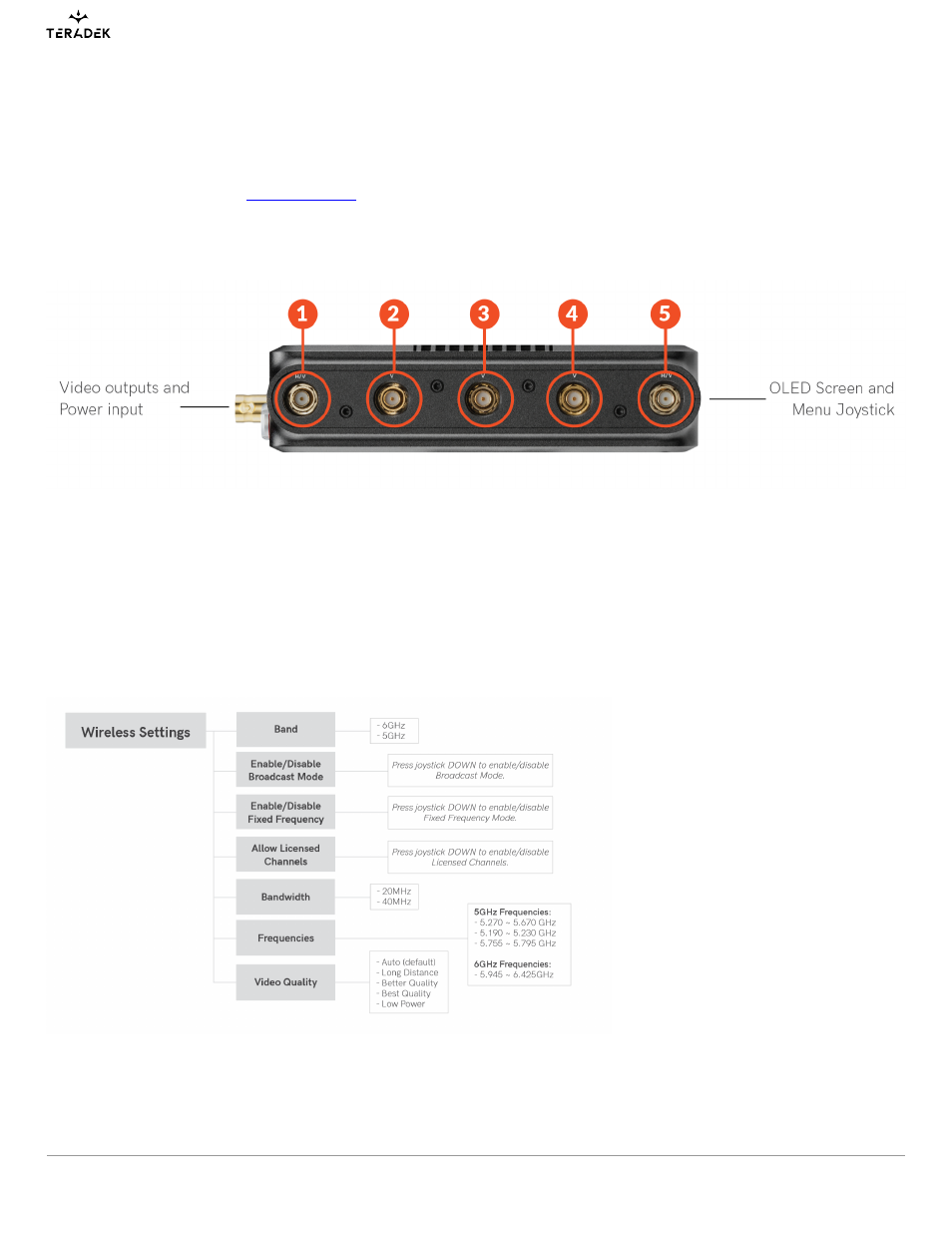

This image illustrates the order of the receiver's antennas. The numbers below correspond to the
antenna numbers in the
Ranger App's per-antenna SNR (Signal-to-noise ratio) graph, which can be used
to troubleshoot signal quality issues. Antenna 1 is closest to the video outputs, while Antenna 5 is
closest to the OLED screen.
Wireless Configuration
Ranger contains several wireless configuration options that allow the system to work at its best in
different environments. The system is designed to work adequately using its automatic default settings,
but they may not be ideal for all situations. This section details all available wireless configuration
options for the transmitter and receiver.
