D: SDI output
Receiver Antennas

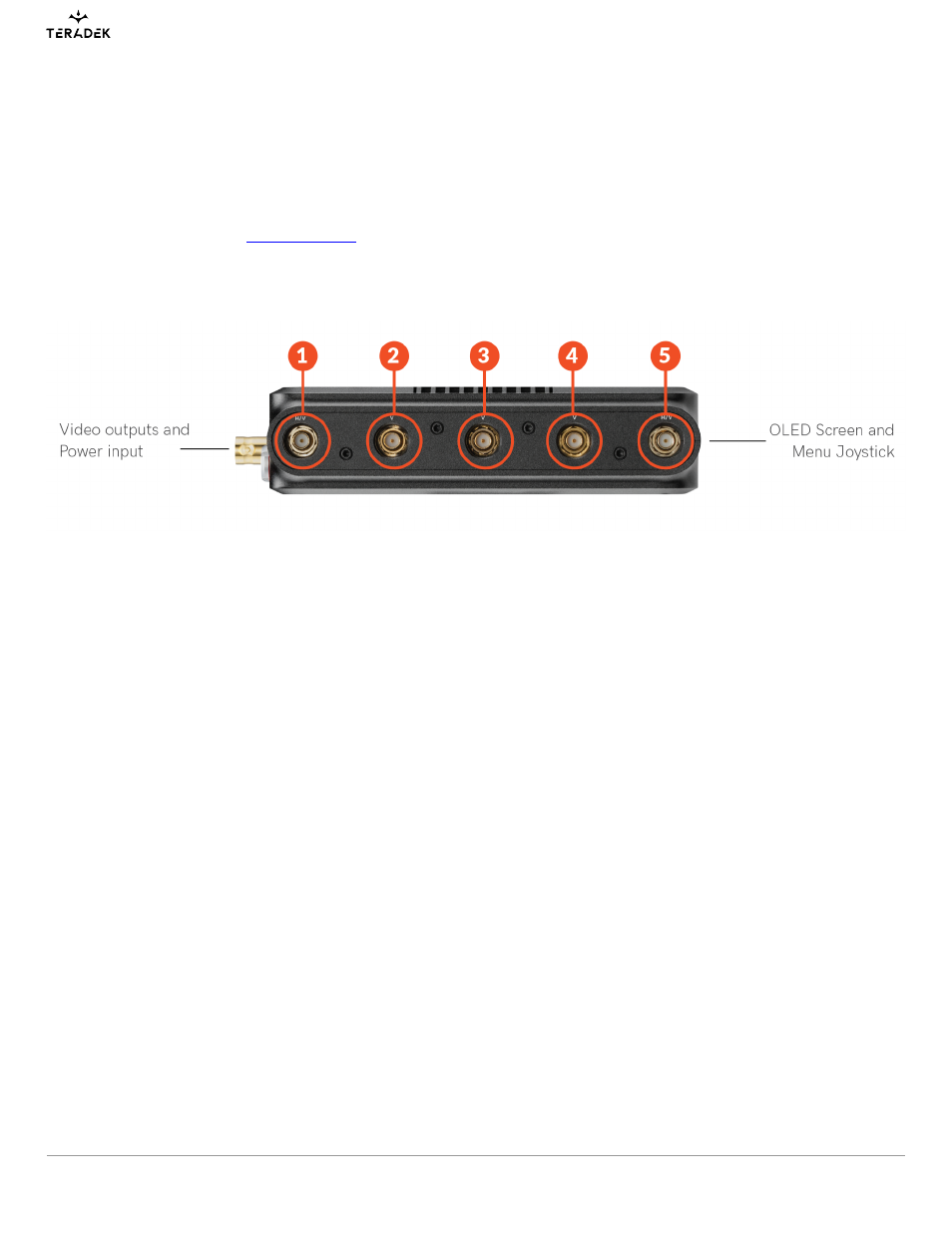

This image illustrates the order of the receiver's antennas. The numbers below correspond to the
antenna numbers in the
Ranger App's per-antenna SNR (Signal-to-noise ratio) graph, which can be used
to troubleshoot signal quality issues. Antenna 1 is closest to the video outputs, while Antenna 5 is
closest to the OLED screen.
