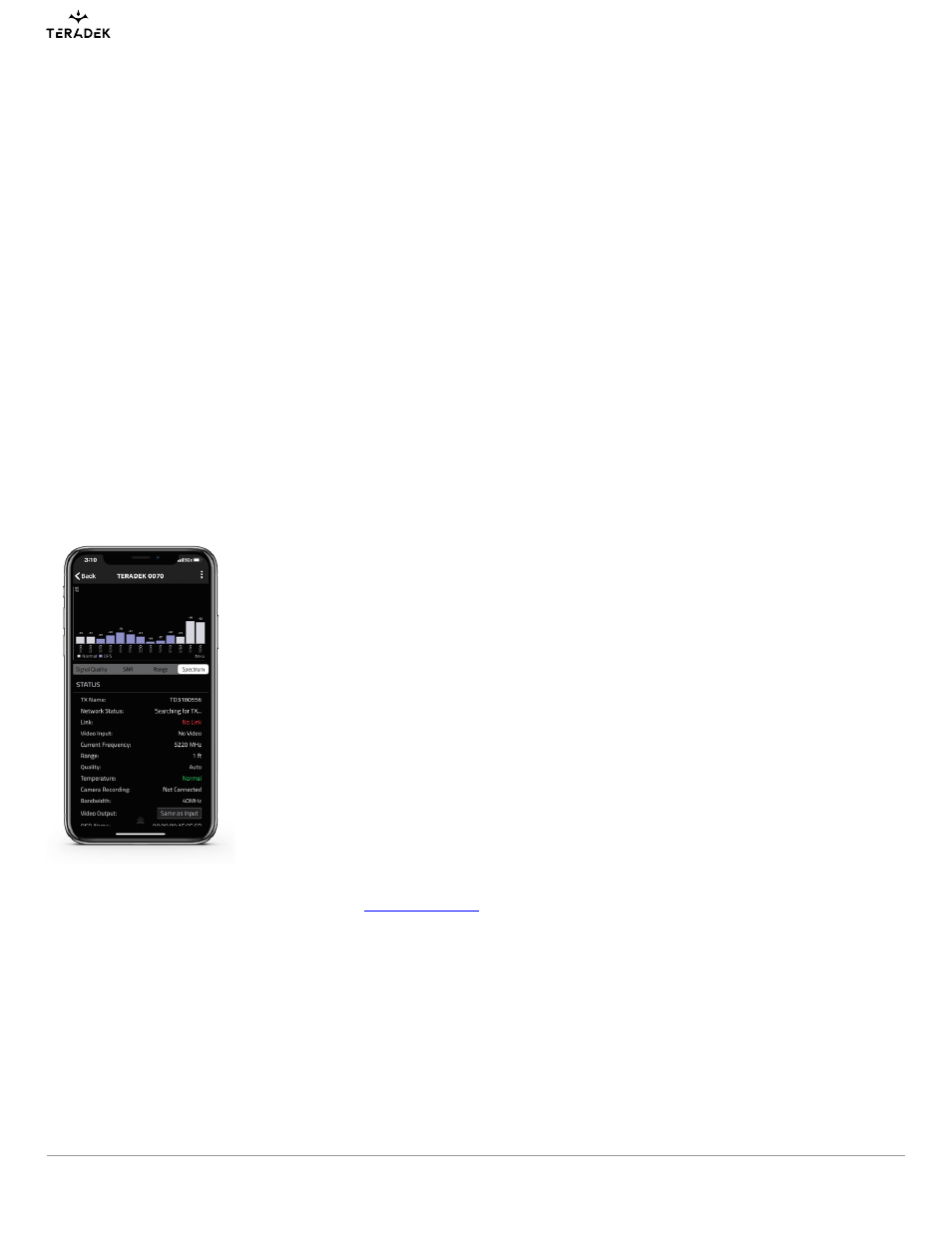

▪ Spectrum Analyzer - Detects congestion in the area and determines which frequencies are available
to use. Each bar represents a frequency, and the height represents the amount of congestion in that
frequency; the higher the bar, the more congested that frequency is. Make sure to always select the
shortest, least congested bar.
▪ Status - Displays the current status of:
◦ Video input
◦ Temperature
◦ Network
◦ Camera Recording
◦ Connected receivers
◦ Region
◦ Current frequency
◦ Bandwidth
◦ Quality
◦ OSD name
Receiver Status Display
▪ Settings (Descriptions listed in the Configuration section) - Tap the settings button on the top-right
corner of the display to customize the receiver’s various settings such as the output format, audio,
display, and OSD.
▪ Signal Quality - Determine the quality and reliability of the signal being received.
▪ SNR (Signal to Noise Ratio) - Compare the signal power level to the noise power level from the
attached antennas.
▪ Range Analyzer - Displays the transmission distance between the transmitter and receiver.
▪ Spectrum Analyzer - Detects congestion in the area and determines which frequencies are available
to use. Each bar represents a frequency, and the height represents the amount of congestion in that
