KBF / KBF P (E5.3) 09/2014 page 37/110

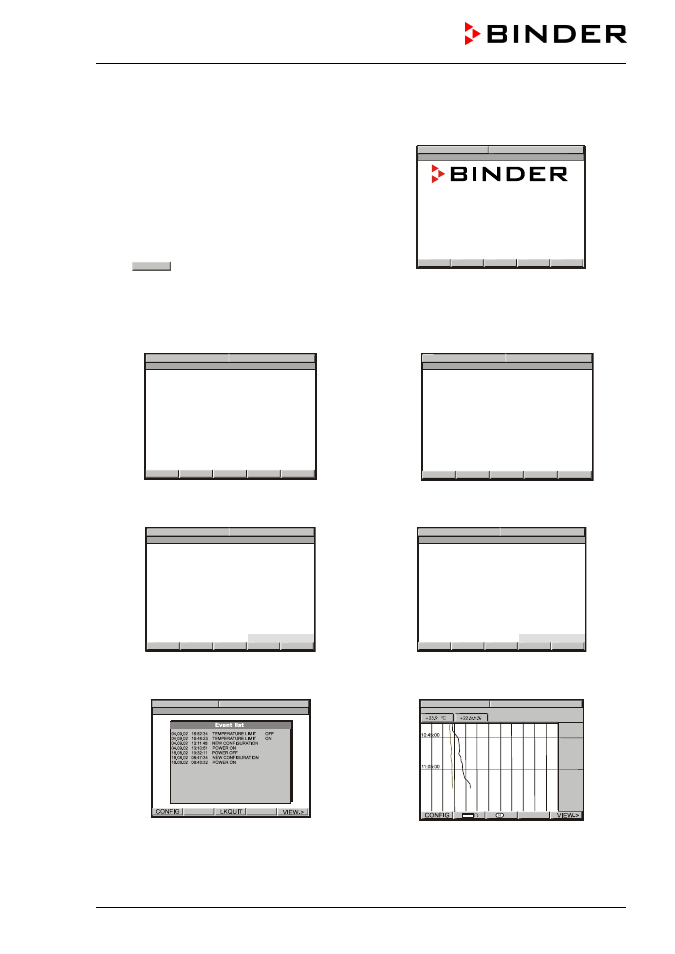

6.2 Function overview of the MB1 program controller displays
The main operation level contains the following dif-
ferent displays:
•
Normal display (Idle Mode or Manual Mode or
Program Mode)
• Event List
• Chart recorder function
• Contact page
Button VIEW -> permits toggling between the dis-
plays.
The
Normal display enables comparison of the cur-
rent temperature and humidity (W) to the set-point
values (X) or shows the fan working rate.
CONTACT PAGE
BINDER Service contact display.
NORMAL DISPLAY Idle Mode
W X
08:43:55 15.12.13
CONFIG VIEW-> PGM
TEMP 0.0 26.8
°C
HUMID 0.0 58.6
%rH
HAND
or
W X
08:43:55 15.12.13
CONFIG VIEW-> PGM
FAN SPEED
50
%
HAND
X - TEMP
26.8
°C
X - HUMID
58.6
%rH
No heating or refrigeration, no humidification or dehumidification. The actual values (X) approximate am-
bient temperature and humidity. Fan operates at a 50% rate.
NORMAL DISPLAY Manual Mode
W X
08:43:55 15.12.13
CONFIG VIEW-> PGM
TEMP 40.0 36.8
°C
HUMID 65.0 58.6
%rH
HAND
Temperature and humidity values are maintained
according to the previous entered set-points (W).
NORMAL DISPLAY Program Mode
W X
08:43:55 15.12.13 PROGRAM 01/SEC1 00:09:59
CONFIG HAND VIEW-> PGM
TEMP 40.0 36.8
°C
HUMID 65.0 58.6
%rH
AUTO
A temperature and humidity program entered be-
fore via a program table is run.
EVENT LIST
Overview over the last 16 events or error
occurrences of the unit.
CHART RECORDER FUNCTION
Graphical display of the current temperature and
humidity values and review of the previous meas-
urements on a historical display. A memory interval
of 5s corresponds to a supervision period of 2.5
days.
08:43:55 15.12.13 08:43:55 15.12.13
08:43:55 15.12.13
Service Hotline
International: +49 7462 205 555
USA Toll Free: +1 866 885 9794
or +1 631 224 4340
: +7 495 988 1516 РоссияиСНГ
[email protected]
www.binder-world.com
CONFIG VIEW-> VIEW->
Best conditions for your success
