KBF / KBF P (E5.3) 09/2014
page 79/110
15.9 External freshwater and wastewater cans (option)
If no suitable in-house water connection is available, you
can manually supply water by filling the optional external
freshwater can. There is an additional external water
can for the wastewater. Volume: 20 liters / 0.71 cu.ft.
The cans are placed in holding devices. You can affix
them directly at the rear of the unit or place them next to
the unit.

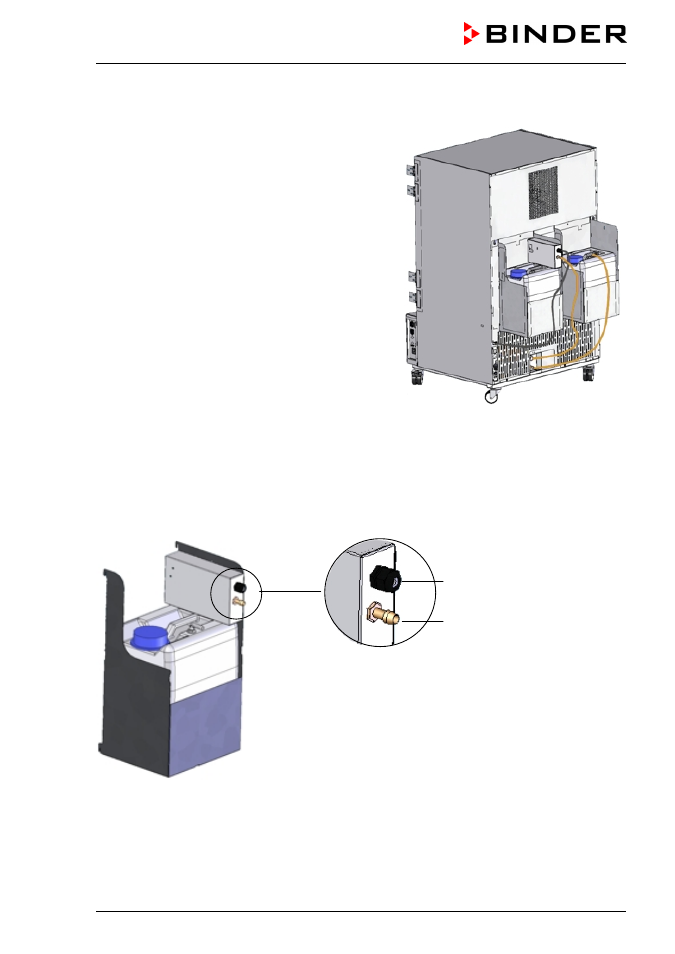

Figure 29: Rear view KBF / KBF P with installed external
water cans (option)
15.9.1 Mounting the freshwater can
(1) Fixing (if required)
Hang the can with its holding device on its 4 carriers. You can install it either at the left or the right
side.
Cable connection (20)
Freshwater hose connection (21)
Figure 30: Freshwater can (option)
