KBF P 240
KBF P 720

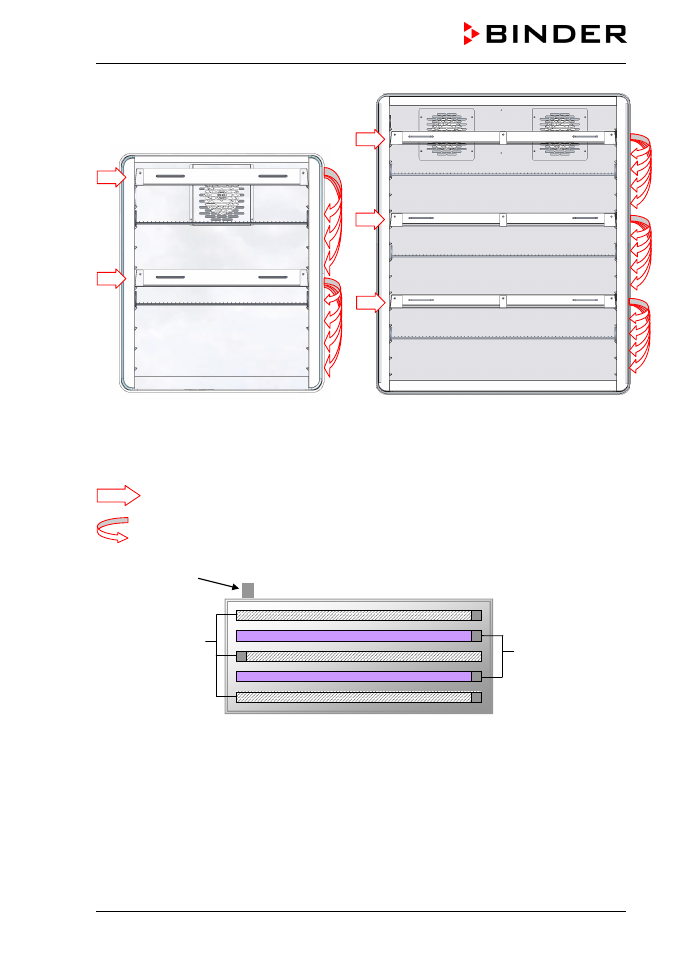

Figure 22: Positions of light cassettes
This position is only meant for the light cassettes. Due to their connections, shelves cannot
be positioned here.
You can move the light cassettes to the indicated positions.
Plug
rear
front
Figure 23: Arrangement of the fluorescent tubes in the light cassette
The fluorescent tubes are turned on by two additional switches (10) and (11) on the left lateral control
panel (switches in position “I“).
(10) Switch for ICH compliant illumination BINDER Q1B Synergy Light (cool white and UVA)
(11) Switch for ICH compliant illumination cool white
(10)
(11)
