2 Overview and Controls
This section provides information about front panel and rear panel. When you install this series DVR for
the first time, please refer to this part first.
2.1 Front Panel
2.1.1 Econimic 720P / Econimic 720P(V2)/ 1080P(V2) Smart 1U/ Econimic 720P
（S2） Smart 1U/ General 720P (S2) Smart 1U/1080P (S2) Smart 1U Series

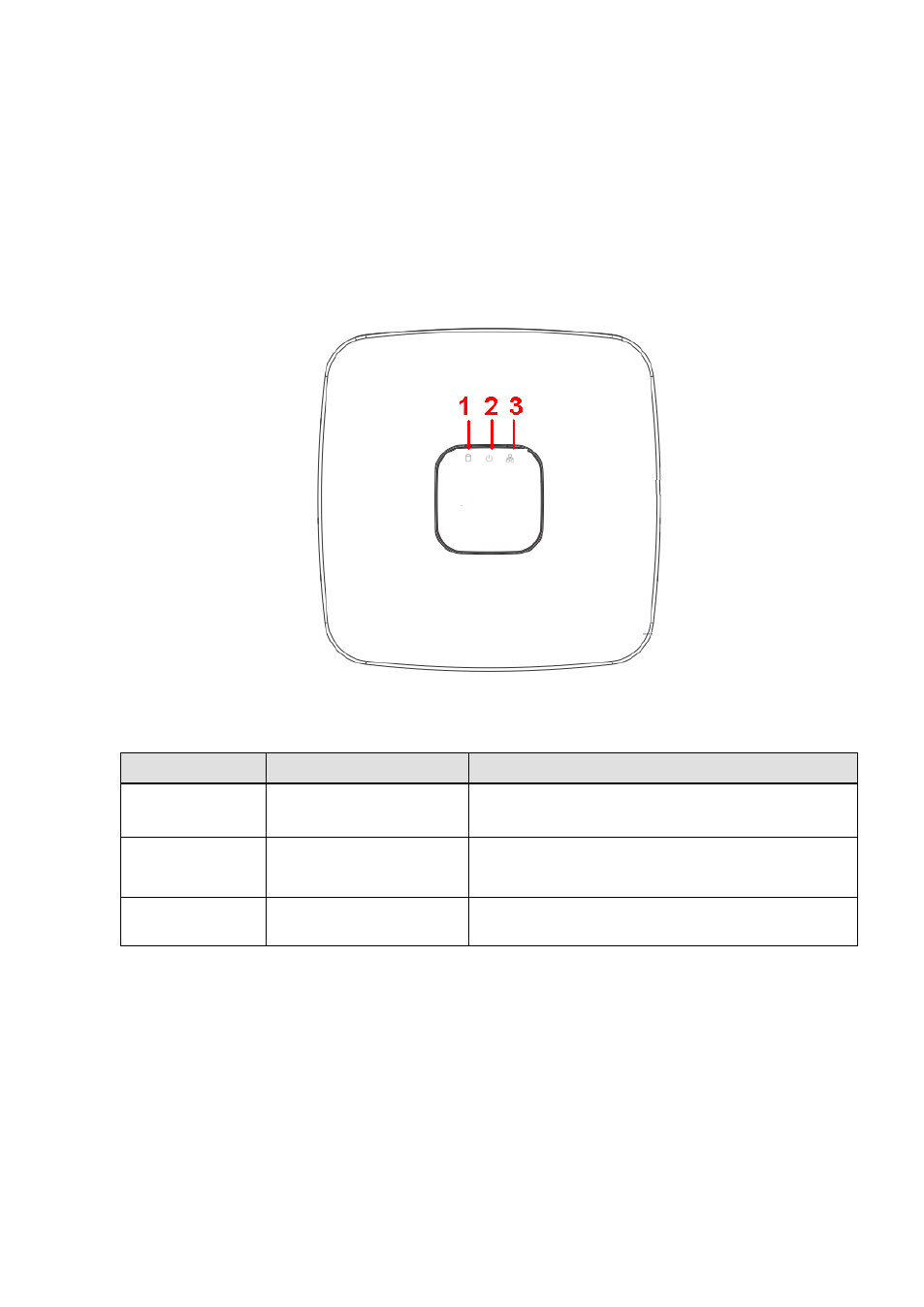

The front panel is shown as below. See Figure 2-1.
Figure 2-1
Please refer to the following sheet for front panel button information.
SN
Name
Function
1
HDD status indictor light
The red light becomes on when HDD is abnormal.
2
Power indicator light
The red light becomes on when the power
connection is OK.
3
Network status indicator
light
The red light becomes on when the network
connection is abnormal.
2.1.2 General 720P/Advanced 720P/ General 720P(V2) / Advanced 720P (V2) /General
1080P(V2) / Advanced 1080P (V2) Mini 1U Series
The front panel is shown as below. See Figure 2-2.
