SETUP & OPERATION
29
Programming the Job (Menu Features)
Before you can run the T-950/XPS-PROTAB 4.0, you must program the tabber for the following:
 Media Sensor Selection (Sensor 1 or Sensor 2)
 Number of Tabs/Stamps/Labels you plan to apply to each piece.
 Media Length (When using Auto Tab/Stamp Positioning feature).
 Tab Offsets (When labeling and when not using the Auto Tab/Stamp Positioning feature).
 Backing Type (Clear or Opaque)
 Tab Pitch (Distance from top of tab/stamp/label, to top of next tab/stamp/label.)
 V-Tab (tab sensor voltage settings)

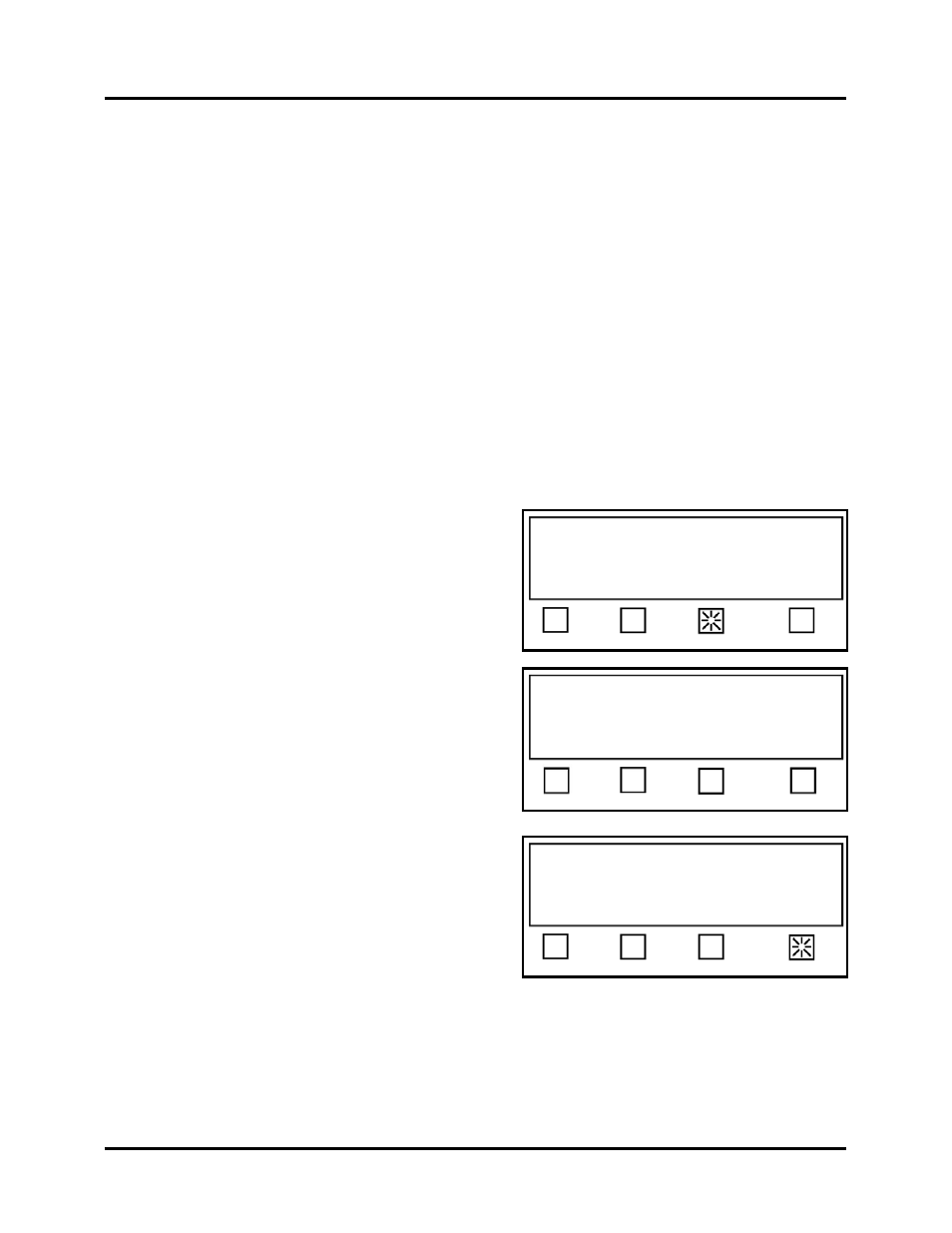

Start-Up Screen
The Start-Up screen will appear when you turn the tabber on.
The soft keys at the bottom of the display control the following functions:
 Mode
– Pressing this soft key will bring you to the mode selection screen, which allows you to
select the tab/stamp positioning mode. See “Mode Features”.
 Tab Jog
– Pressing and holding this key will cause the tab drive roller to advance very slowly.

Pass-Thru / Operate – Pressing this soft key
will cause the tabber to toggle between the “pass-
thru” mode and the “operate” mode.
When Pass-Thru is showing, for this soft key,
the tabber is in the operate mode.
The operate mode is used to tab pieces as they
are fed through the system.
When Operate is showing, for this soft key, the
tabber is in Pass-Thru mode. The pass-thru
mode can be used during the setup process to
check for correct material transport adjustments.
The pass-thru mode is also useful if the tabber is
being used in-line with other equipment. This
mode can be used to pass media through to the
next device; if the customer doesn’t want to tab
the job.

Advanced – Pressing this key will place the
tabber in the advanced mode. This mode is used
to select the Media Sensor, set the V-Tab (tab
sensing values/voltages) and to access other
advanced settings and test routines. See
“Advanced Features”.
Press RUN for pass-thru mode.
Status: Pieces: 0
Mode Tab Jog Operate Advanced
Press RUN to tab using Job 1.
Status: Pieces: 0
Mode Tab Jog Pass-Thru Advanced
Press RUN to tab using Job 1.
Status: Pieces: 0
Mode Tab Jog Pass-Thru Advanced
