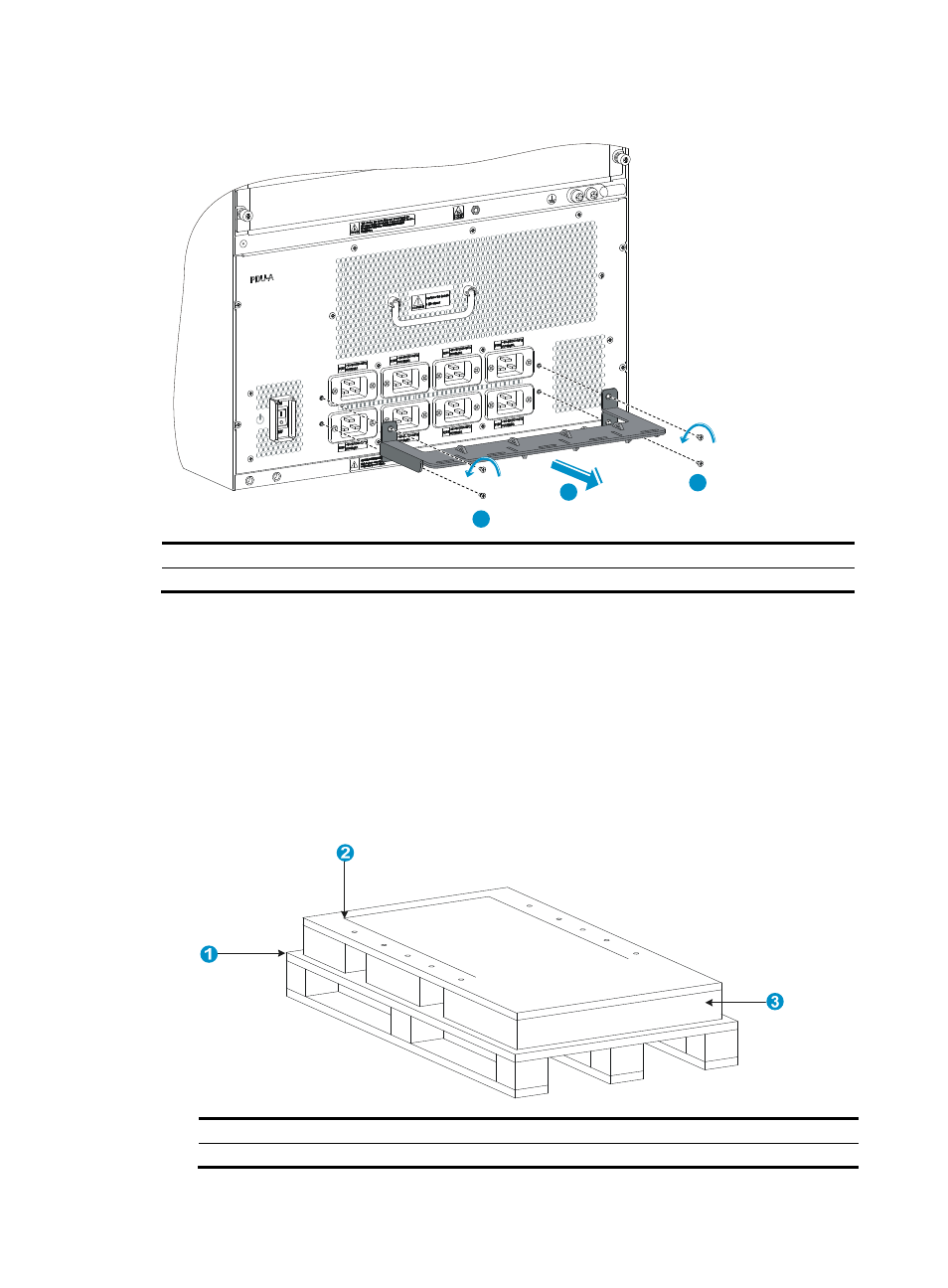

Figure 100 Removing the power cord bracket from the S12510-X AC
(1) Loosen the screws that attach the power cord bracket to the chassis
(2) Remove the power cord bracket
Repackaging the switch chassis
This section describes how to repackage an S12510-X AC switch. You can repackage an S12516-X AC
switch by using the same method.
To repackage the switch chassis:
1.
Align the rear bottom edge of the chassis with the positioning lines on the wooden pallet base. To
identify the positioning lines, see callout 2 in
.
Figure 101 Identifying the silkscreen frame
(1) Wooden pallet base
(2) Positioning lines
(3) Front of the base (same direction as the front panel of the chassis)
1
2
1
