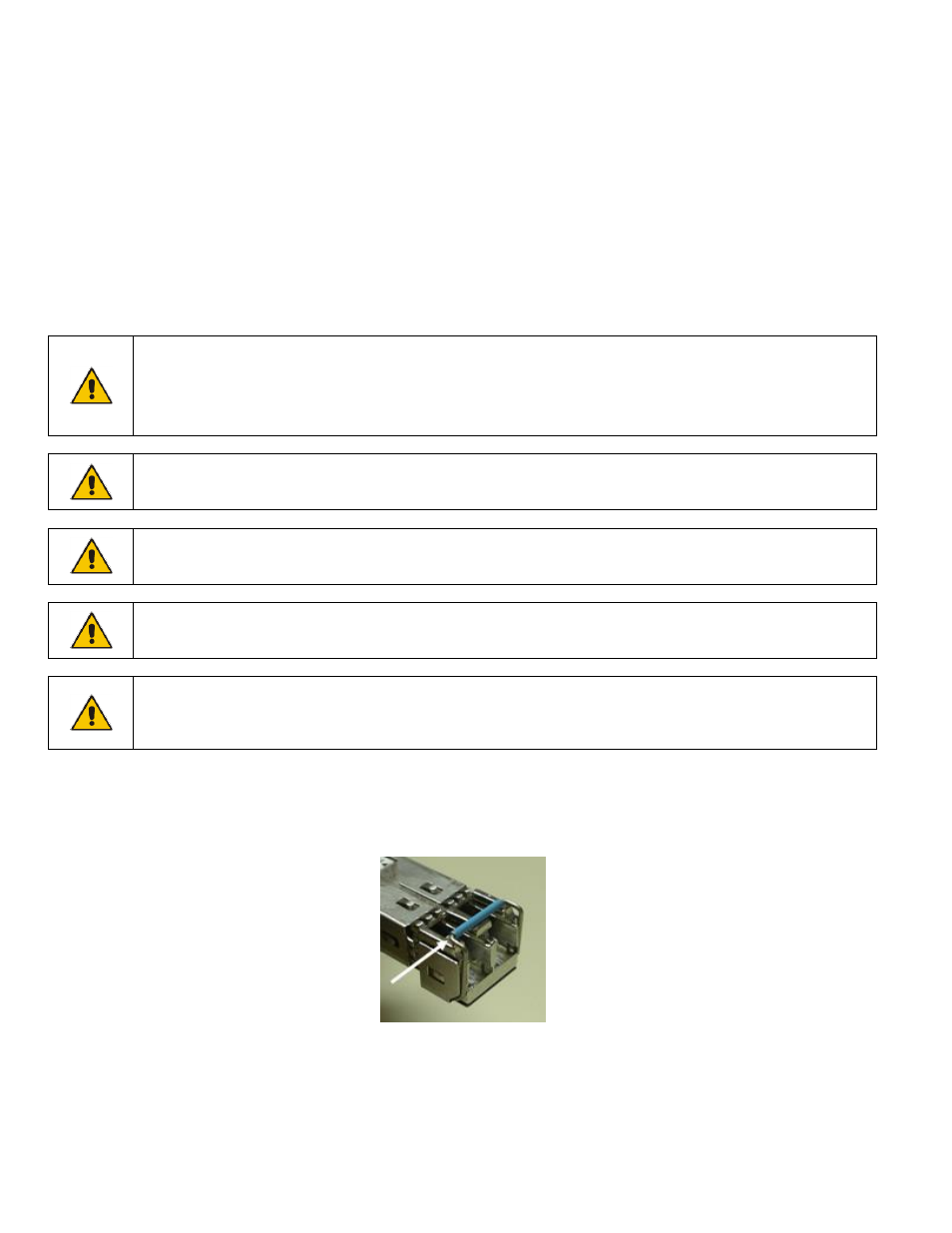

Annex 2 Installing the Optical Interface
Installing and removing the Fiber I/O interface cartridge requires special care. This annex describes the process.
The interface consists of two parts:

A socket on the rear panel into which an SFP interface module is plugged

An SFP (Small Form-factor Pluggable) module into which the optical fibers are plugged, and which incorporates
the optical/electrical interface
Cautions and Warnings
SFP Transmitter modules contain a class 1 laser, which emits invisible radiation whenever the module is
powered up. Because the SFP is hot-swappable, the module may be powered up as soon as it is
installed.
DO NOT LOOK INTO AN OPERATING SFP MODULE’S CONNECTORS, AS EYE DAMAGE MAY RESULT.
The SFP module is sensitive to electrostatic discharge (ESD).
SFP modules are subject to wear, and their useful lifetime is reduced each time they are inserted or
removed. Do not remove them more often than is absolutely necessary.
Never remove or install an SFP module with the fiber optic cables connected. Damage to the cables
could result.
The presence of dust and debris can seriously degrade the performance of an optical interface. It is
recommended that you insert a dust plug into the SFP module whenever a fiber optic cable is not
connected.
Installing an SFP module
1. Make sure that the bale clasp lever is in the closed position
2. Slide the module straight into the socket, and push gently until it clicks into position.
