GUIDE TO INSTALLATION AND OPERATION
Kaleido-Solo | 5

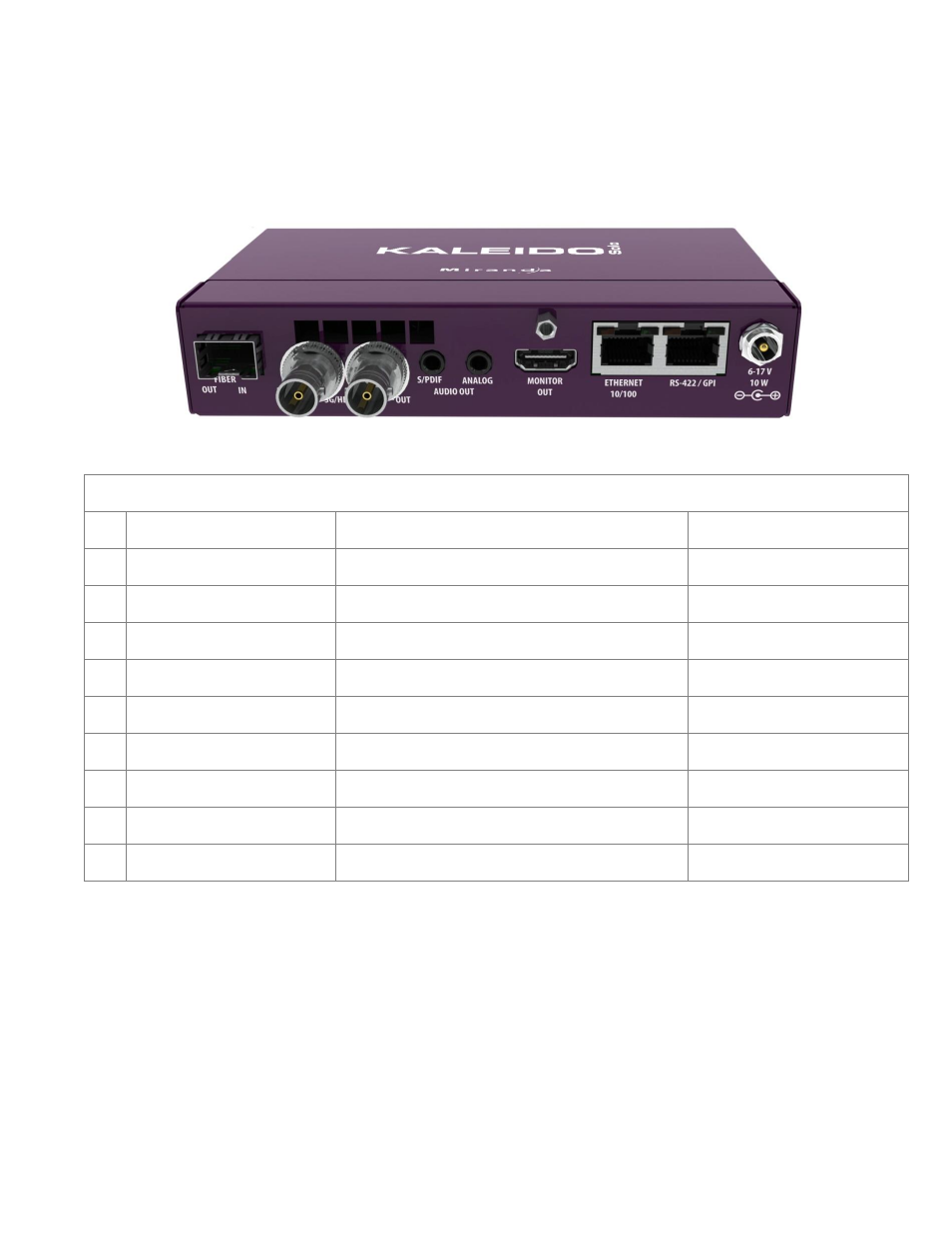

2.2 Connector Panel
The rear connector panel incorporates all inputs and outputs associated with the Kaleido-Solo, with the exception of a
Remote Control connector (sold separately) on the front panel.
1 2 3 4 5 6 7 8 9
Connections
# Label Signal Connector type
1 Fiber OUT/IN SFP module
2 3G/HD/SD IN SDI input BNC
3 3G/HD/SD OUT SDI output BNC
4 S/PDIF Audio Out S/PDIF digital 2 ch. 3.5mm stereo jack
5 ANALOG Audio Out 2 channels unbalanced 3.5mm stereo jack
6 Monitor Out HDMI to monitor HDMI type A
7 Ethernet 10/100 RJ-45
8 RS-422 / GPI RJ-45
9 Power
The two video outputs (fiber and electric) are not loop-throughs of their respective inputs. They both carry the video
from the selected input of the Kaleido-Solo. In this sense, the Kaleido-Solo functions as an optical/electric or
electric/optical converter.
